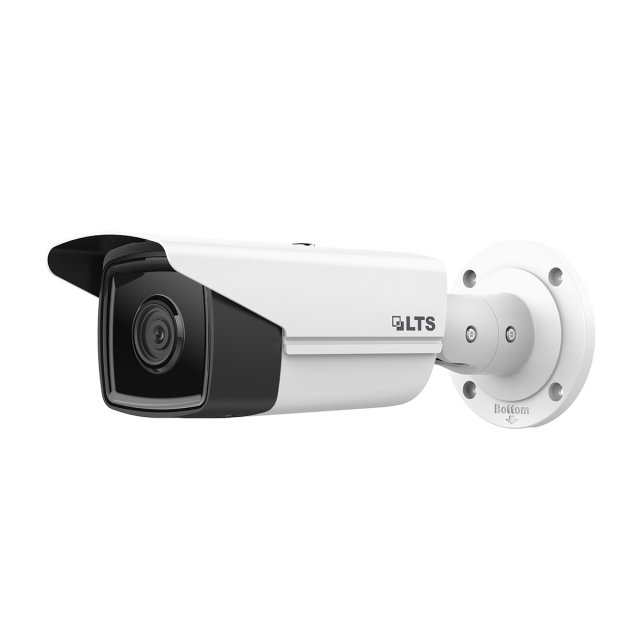

| Camera | - Image Sensor: 1/3' Progressive Scan CMOS
- Min. Illumination: Color 0.005 Lux @ (F1.6, AGC on), 0 Lux with IR on
- Shutter Speed: 1/3 to 1/100,000 sec
- Slow Shutter: Yes
- P/N: P/N
- Wide Dynamic Range: 120 dB
- Day & Night: ICR Cut
- Angle Adjustment: Pan 0°-360°, Tilt 0°-90°, Rotate 0°-360°
|
| Lenses | - 2.8 mm: Horizontal 103°, Vertical 55°, Diagonal 122°
- 4 mm: Horizontal 84°, Vertical 45°, Diagonal 100°
- 6 mm: Horizontal 52°, Vertical 28°, Diagonal 61°
- Aperture: F1.6
- Lens Mount: M12
|
| DORI | - 2.8 mm: D 67 m, O 26 m, R 13 m, I 6 m
- 4 mm: D 80 m, O 31 m, R 16 m, I 8 m
- 6 mm: D 120 m, O 47 m, R 24 m, I 12 m
|
| Illuminator | - IR Range: Up to 197 ft (60 m)
- Wavelength: 850 nm
|
| Video | - Max. Resolution: 2688 × 1520
- Main Stream: 25 fps (50 Hz) / 30 fps (60 Hz) at 2688 × 1520, 1920 × 1080, 1280 × 720
- Sub Stream: 25 fps (50 Hz) / 30 fps (60 Hz) at 640 × 480, 640 × 360
- Third Stream: 25 fps (50 Hz) / 30 fps (60 Hz) at 1280 × 720, 640 × 480, 640 × 360
- Compression: H.264 / H.264+ / H.265 / H.265+
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline / Main / High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR / VBR
- SVC: Yes
- ROI: 1 fixed region (main & sub-stream)
|
| Network | - Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, G), ISAPI, SDK
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
- User/Host: Up to 32 users (administrator, operator, user)
- Security: Password protection, HTTPS, IP filter, audit log, TLS 1.1/1.2, WSSE
- Storage: MicroSD up to 256 GB, NAS (NFS, SMB/CIFS), ANR
- Browser: IE 10/11, Chrome 57+, Firefox 52+
|
| Imaging | - Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Image Parameters Switch: Yes
- Adjustments: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance
|
| Interface | - On-board Storage: Built-in MicroSD, up to 256 GB
- Hardware Reset: Yes
- Communication Interface: 1 RJ45 10M/100M Ethernet port
|
| Events & AI | - Motion Detection: Human and vehicle classification
- Video Tampering Alarm
- Face Detection: Yes
- Perimeter Protection: Line crossing, intrusion detection
- Linkage: FTP / memory card / NAS upload, notify center, record, capture, email
|
| General | - General Functions: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- Software Reset: Yes
- Operating Conditions: -30° to 60°C; humidity ≤95%
- Power Supply: 12 VDC ±25%, PoE 802.3af Class 3
- Power Consumption: Max 8.5 W (12 VDC), 9.5 W (PoE)
- Material: Aluminum alloy body; plastic sun shield & IR cover
- Dimensions: Ø4.13 × 11.53 in. (Ø105 × 293 mm)
- Weight: 2.4 lbs (1,070 g)
|
| Certifications | - EMC: FCC, CE-EMC, RCM, IC, KC
- Safety: UL 60950-1, CB, CE-LVD, BIS, LOA
- Environmental: CE-RoHS, WEEE, Reach
- Protection: IP67 (IEC 60529-2013)
|
