| Camera |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.018 Lux at (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8mm |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| Digital noise reduction | 3D DNR |
| Compression Standard |
| Video Compression | - Main stream: H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
|
| H.264 codec profile | Main profile/High Profile |
| Bit Rate | 256 Kbps to 16 Mbps |
| Image |
| Max. Resolution | 2688 x 1520 |
| Frame Rate | - 50Hz:25fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)
- 60Hz: 30fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)
|
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR |
| Network |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface |
| Video Output | No |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.264 and H.265 encoding support |
| Reset Button | Yes |
| General |
| Working Temperature / Humidity | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5mm coaxial power plug PoE(802.3af, class 3) |
| Power Consumption | 12 VDC, 0.4 A, max. 6W PoE: (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5W |
| Ingress protection level | - IP67
- TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
|

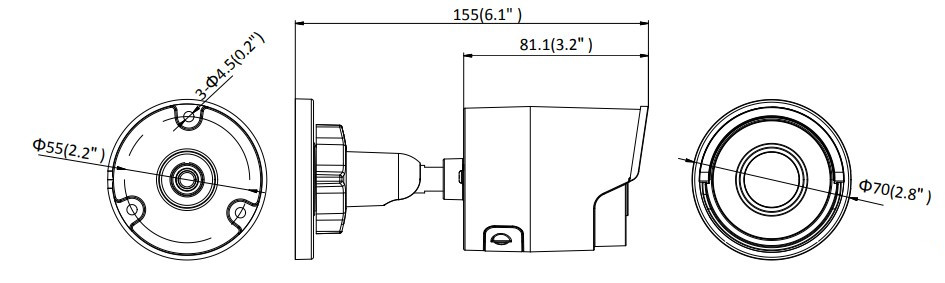

| Dimension | - Camera: 70 mm x 155 mm (2.8" x 6.1")
- Package: 216 x 121 x 118 mm (8.5" x 4.8" x 4.7")
|
| Weight | Camera: approx. 410 g (0.9 lb.) |
