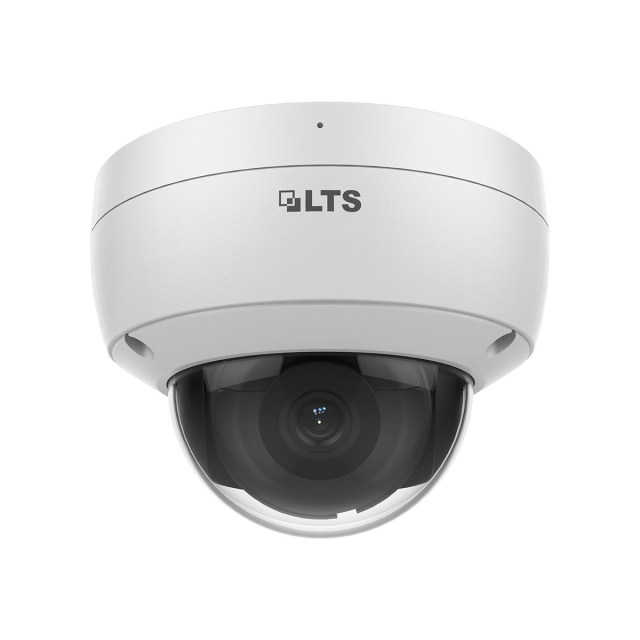

| Camera |
| Image Sensor | 1/3" progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC on), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 to 1/100,000 sec. |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | - Pan: 0° to 355°
- Tilt: 0° to 75°
|
| Lens |
| Focal Length & FOV | - 2.8 mm
- Horizontal: 98.0°
- Vertical: 53.1°
- Diagonal: 114.7°
|
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
| Illuminator |
| IR Wavelength | 850 nm |
| IR Range | Up to 98 ft (30 m) |
| Video |
| Max. Resolution | 2560 × 1440 |
| Main Stream (50 Hz) | - 20 fps (2560 × 1440)
- 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
|
| Main Stream (60 Hz) | - 20 fps (2560 × 1440)
- 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
|
| Sub-Stream (50 Hz) | 25 fps (640 × 480, 640 × 360) |
| Sub-Stream (60 Hz) | 30 fps (640 × 480, 640 × 360) |
| Video Compression | - Main: H.264 / H.265
- Sub: MJPEG / H.264 / H.265
|
| Video Bit Rates | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline / Main / High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supported |
| H.265+ | Main stream supported |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Network |
| Protocols | - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS
- RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP
- SNMP, IGMP, 802.1X, QoS
- IPv4 / IPv6, UDP, Bonjour, SSL/TLS
|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User / Host | Up to 32 users (administrator, operator, user) |
| Network Storage | NAS (NFS, SMB / CIFS), ANR |
| Web Browser | - Plug-in required: IE 10+
- Plug-in free: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
|
| Imaging |
| Image Settings | - Saturation, brightness, contrast, sharpness
- AGC, white balance
- Adjustable via client software or web browser
|
| Day / Night Switch | Auto, Schedule, Day, Night |
| Image Enhancement | BLC, 3D DNR |
| Interface |
| Ethernet Interface | 1 RJ45 10/100 Mbps self-adaptive port |
| On-Board Storage | MicroSD up to 256 GB |
| Built-in Microphone | Yes |
| Hardware Reset | Yes |
| Event Types |
| Basic Events | Motion detection, video tampering alarm, exceptions |
| General |
| Linkage Method | - Upload to FTP / memory card
- Notify surveillance center
- Send email
- Trigger recording / capture
|
| Camera Material | Aluminum alloy body |
| Camera Dimensions | Ø 4.72 × 3.63 in. (120 × 92.2 mm) |
| Package Dimensions | 5.9 × 5.9 × 5.6 in. (150 × 150 × 141 mm) |
| Camera Weight | Approx. 1.0 lbs (440 g) |
| Package Weight | Approx. 1.5 lbs (680 g) |
| Storage Conditions | -22° to 140° F (-30° to 60° C); Humidity ≤ 95% (non-condensing) |
| Startup & Operating Conditions | -22° to 140° F (-30° to 60° C); Humidity ≤ 95% (non-condensing) |
| General Function | - Anti-flicker, heartbeat, mirror
- Password protection
- Privacy mask, watermark
- IP address filter
|
| Power Consumption | - 12 VDC, 0.4 A, max. 5 W
- PoE (802.3af), max. 6.5 W
|
| Power Supply | - 12 VDC ± 25%
- PoE 802.3af, Class 3
|
| Power Interface | Ø 5.5 mm coaxial power plug |
| Certifications |
| EMC | - FCC SDoC (47 CFR Part 15, Subpart B)
- CE-EMC
- RCM
- IC VoC
- KC
|
| Safety | |
| Environmental | |
| Protections | IP67, IK10 |
