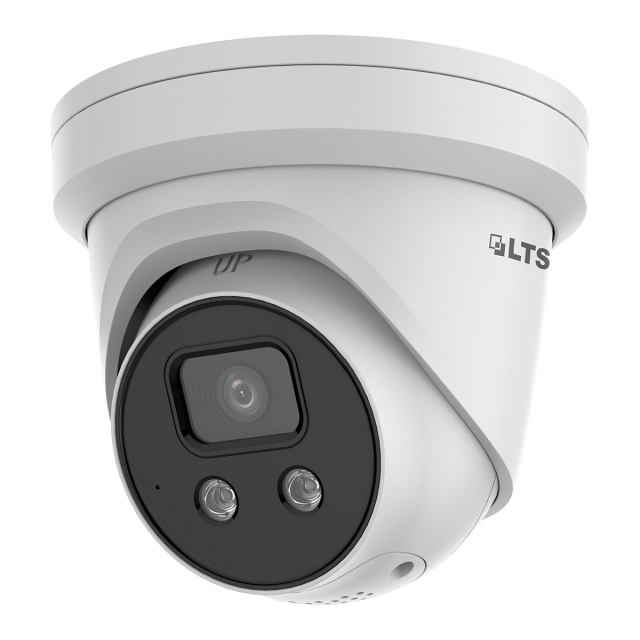

Buy LTS CMIP3D82W-28SDA-SL, Platinum 8 MP Fixed Turret IP Camera

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

High-quality imaging with 8 MP resolution
Excellent low-light performance
Clear image against strong backlight with 120 dB true WDR
Efficient H.265+ compression technology
Provides real-time security via built-in two-way audio
Water and dust resistant (IP67)
Active deterrence
MD 2.0 - Human and vehicle detection

LTS MD 2.0 technology brings human and vehicle target classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC on), B/W: 0 Lux with IR

Shutter Speed

1/3 to 1/100,000 sec.

Slow Shutter

Yes

P/N

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 mm

Iris Type

Fixed

Field of View

Horizontal: 111°
Vertical: 59°
Diagonal: 131°

Aperture

F1.6

Lens Mount

M12

DORI

Detection / Observation / Recognition / Identification

D: 89.2 m
O: 35.4 m
R: 17.8 m
I: 8.9 m

Illuminator

Supplemental Light Type

IR Range

Up to 98 ft (30 m)

IR Wavelength

850 nm

Smart Supplement Light

Yes

Visual Alarm

Yes

Video

Max. Resolution

3840 × 2160

Main Stream

24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Supported under certain settings

Video Compression

Main: H.264 / H.264+ / H.265 / H.265+
Sub: MJPEG / H.264 / H.265
Third: H.264 / H.265

Video Bit Rates

32 Kbps to 16 Mbps

H.264 Type

Baseline / Main / High Profile

H.265 Type

Main Profile

H.264+

Main stream supported

H.265+

Main stream supported

Bit Rate Control

CBR / VBR

SVC

H.264 and H.265 encoding

ROI

1 fixed region for main stream and sub-stream

Audio

Audio Type

Mono sound

Environmental Noise Filtering

Yes

Audio Sampling Rate

8 / 16 / 32 / 44.1 / 48 kHz

Audio Compression

G.711 ulaw / G.711 alaw
G.722.1 / G.726
MP2L2 / PCM / MP3 / AAC-LC

Audio Bit Rates

64 Kbps (G.711)
16 Kbps (G.722.1 / G.726)
32-192 Kbps (MP2L2)
8-320 Kbps (MP3)
16-64 Kbps (AAC-LC)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC on), B/W: 0 Lux with IR

Shutter Speed

1/3 to 1/100,000 sec.

Slow Shutter

Yes

P/N

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 mm

Iris Type

Fixed

Field of View

Horizontal: 111°
Vertical: 59°
Diagonal: 131°

Aperture

F1.6

Lens Mount

M12

DORI

Detection / Observation / Recognition / Identification

D: 89.2 m
O: 35.4 m
R: 17.8 m
I: 8.9 m

Illuminator

Supplemental Light Type

IR Range

Up to 98 ft (30 m)

IR Wavelength

850 nm

Smart Supplement Light

Yes

Visual Alarm

Yes

Video

Max. Resolution

3840 × 2160

Main Stream

24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Supported under certain settings

Video Compression

Main: H.264 / H.264+ / H.265 / H.265+
Sub: MJPEG / H.264 / H.265
Third: H.264 / H.265

Video Bit Rates

32 Kbps to 16 Mbps

H.264 Type

Baseline / Main / High Profile

H.265 Type

Main Profile

H.264+

Main stream supported

H.265+

Main stream supported

Bit Rate Control

CBR / VBR

SVC

H.264 and H.265 encoding

ROI

1 fixed region for main stream and sub-stream

Audio

Audio Type

Mono sound

Environmental Noise Filtering

Yes

Audio Sampling Rate

8 / 16 / 32 / 44.1 / 48 kHz

Audio Compression

G.711 ulaw / G.711 alaw
G.722.1 / G.726
MP2L2 / PCM / MP3 / AAC-LC

Audio Bit Rates

64 Kbps (G.711)
16 Kbps (G.722.1 / G.726)
32-192 Kbps (MP2L2)
8-320 Kbps (MP3)
16-64 Kbps (AAC-LC)
