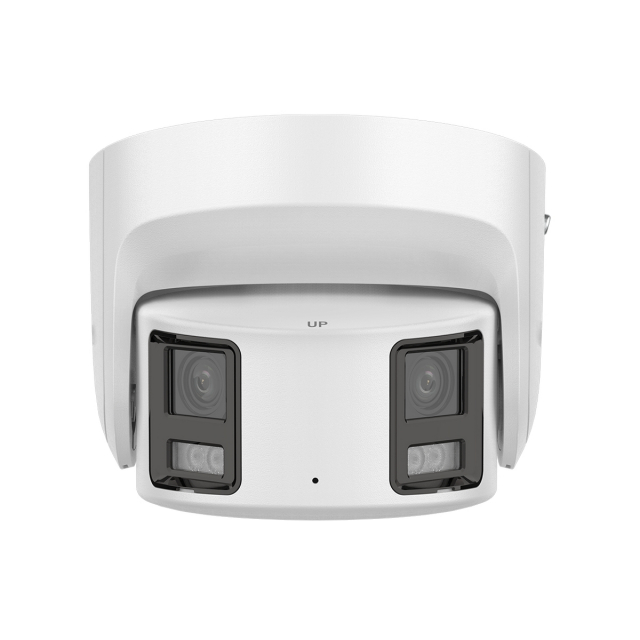

Buy LTS CMIP3C8PW-SDL, Platinum 8 MP Panoramic Fixed Turret IP Camera

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

2 x 4 MP 4 mm Lenses (8 MP total)
5120 x 1440 @ 20 fps or 15fps with WDR
White, supplemental light LEDs, ranging up to 131 feet
Human & vehicle target classification
130 dB True WDR technology
Built-in microphone & speaker
MicroSD card storage up to 256 GB
IP67, IK10 protection ratings

This 8 MP Panoramic Turret IP Camera provides vivid imaging 24/7 with its advanced f 1.0 lenses, high performance sensors and friendly lighting. Its superaperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Camera

Image Sensor: 2 × 1/1.8" Progressive Scan CMOS
Max. Resolution: 5120 × 1440
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Speed: 1/3 to 1/100,000 sec.
Angle Adjustment: Pan -30° to 30°, Tilt -75° to 75°

Lens

Lens Type: Fixed focal length; dual 4 mm lenses
Field of View:
- Horizontal: 180° ± 10°
- Vertical: 44°
Lens Mount: M16
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 3.6 m to ∞
DORI (Approx., 4 mm):
- Detection: 77 m (250 ft)
- Observation: 30 m (100 ft)
- Recognition: 15 m (50 ft)
- Identification: 7 m (23 ft)

Supplemental Lighting

Type: White
Range: Up to 131 ft (40 m)
Technology: Smart

Video

Main Stream:
- WDR On:
  - 50 Hz: 12.5 fps (5120 × 1440)
  - 60 Hz: 15 fps (5120 × 1440)
- WDR Off:
  - 50 Hz: 20 fps (5120 × 1440)
  - 60 Hz: 20 fps (5120 × 1440)
Sub-Stream:
- WDR On:
  - 50 Hz: 12.5 fps (1920 × 536, 960 × 272)
  - 60 Hz: 15 fps (1920 × 536, 960 × 272)
- WDR Off:
  - 50 Hz: 20 fps (1920 × 536, 960 × 272)
  - 60 Hz: 20 fps (1920 × 536, 960 × 272)
Video Compression:
- Main stream: H.265+ / H.265 / H.264+ / H.264
- Sub-stream: H.265 / H.264 / MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline, Main, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
SVC: H.264 and H.265 encoding
ROI: 1 fixed region for main stream

Audio

Audio Type: Mono
Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rates:
- 64 Kbps (G.711 ulaw / alaw)
- 16 Kbps (G.722.1 / G.726)
- 32-192 Kbps (MP2L2)
- 8-320 Kbps (MP3)
- 16-64 Kbps (AAC-LC)
Audio Sampling Rates: 8 / 16 / 32 / 44.1 / 48 kHz
Environmental Noise Filtering: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, G, T), ISAPI, SDK, ISUP
User / Host: Up to 32 users (Administrator, operator, user)
Security: HTTPS, 802.1X (EAP-MD5), watermark, IP filter, WSSE, RTP/RTSP over HTTPS, TLS 1.2, MAC authentication, audit log
Network Storage: NAS (NFS / SMB / CIFS), ANR, NVR
Web Browser: IE 10 / 11 (plug-in), Chrome 57+, Firefox 52+

Imaging

Image Parameter Switching: Yes
Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance
Day / Night Switching: Day, Night, Auto, Schedule
WDR: 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface

Ethernet Interface: 1 × RJ45, 10/100 Mbps
On-Board Storage: MicroSD / SDHC / SDXC / TF up to 256 GB
Built-in Microphone: Yes
Built-in Speaker: 1.2 W, 95 dB @ 10 cm
Audio I/O:
- 1 input (line in), 3.3 Vpp, 4.7 KΩ
- 1 output (line out), 3.3 Vpp, 100 Ω
Alarm: 1 input, 1 output (max. 24 V DC, 1 A)
Reset Key: Yes

Events

Basic: Motion detection (human & vehicle), alarm I/O, flashing light, audible alarm, anomalies
Smart: Line crossing, intrusion, region entrance, region exiting, scene change detection (human & vehicle classification)
Linkage: FTP / NAS / memory card upload, notify center, email, alarm output, recording, capture, audible warning, white light flashing
Deep Learning: Perimeter protection (human & vehicle)

General

Power: 12 VDC ±25%, 0.88 A, max. 10.5 W; PoE 802.3af Class 3, max. 12.5 W
Material: Metal
Camera Dimensions: Ø 6.1 × 6.1 in. (155 × 155.3 mm)
Package Dimensions: 9 × 9 × 9 in. (230 × 230 × 230 mm)
Weight: Approx. 2.4 lbs (1,110 g)
Shipping Weight: Approx. 4.2 lbs (1,900 g)
Operating / Storage Conditions: -22° to 140° F (-30° to 60° C), ≤95% humidity
Languages (33): EN, RU, ET, BG, HU, EL, DE, IT, CZ, SK, FR, PL, NL, PT, ES, RO, DA, SV, NO, FI, HR, SL, SR, TR, KO, ZH-TW, TH, VI, JA, LV, LT, PT-BR, UA
General Functions: Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
Flashing Light: Yes

Certifications

EMC: FCC Part 15 Subpart B, CE-EMC, RCM, IC
Safety: UL 62368-1, CB (IEC 62368-1), CE-LVD
Environmental: CE-RoHS, WEEE, REACH
Protection: IP67 (IEC 60529-2013)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Camera

Image Sensor: 2 × 1/1.8" Progressive Scan CMOS
Max. Resolution: 5120 × 1440
Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Speed: 1/3 to 1/100,000 sec.
Angle Adjustment: Pan -30° to 30°, Tilt -75° to 75°

Lens

Lens Type: Fixed focal length; dual 4 mm lenses
Field of View:
- Horizontal: 180° ± 10°
- Vertical: 44°
Lens Mount: M16
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 3.6 m to ∞
DORI (Approx., 4 mm):
- Detection: 77 m (250 ft)
- Observation: 30 m (100 ft)
- Recognition: 15 m (50 ft)
- Identification: 7 m (23 ft)

Supplemental Lighting

Type: White
Range: Up to 131 ft (40 m)
Technology: Smart

Video

Main Stream:
- WDR On:
  - 50 Hz: 12.5 fps (5120 × 1440)
  - 60 Hz: 15 fps (5120 × 1440)
- WDR Off:
  - 50 Hz: 20 fps (5120 × 1440)
  - 60 Hz: 20 fps (5120 × 1440)
Sub-Stream:
- WDR On:
  - 50 Hz: 12.5 fps (1920 × 536, 960 × 272)
  - 60 Hz: 15 fps (1920 × 536, 960 × 272)
- WDR Off:
  - 50 Hz: 20 fps (1920 × 536, 960 × 272)
  - 60 Hz: 20 fps (1920 × 536, 960 × 272)
Video Compression:
- Main stream: H.265+ / H.265 / H.264+ / H.264
- Sub-stream: H.265 / H.264 / MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline, Main, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
SVC: H.264 and H.265 encoding
ROI: 1 fixed region for main stream

Audio

Audio Type: Mono
Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rates:
- 64 Kbps (G.711 ulaw / alaw)
- 16 Kbps (G.722.1 / G.726)
- 32-192 Kbps (MP2L2)
- 8-320 Kbps (MP3)
- 16-64 Kbps (AAC-LC)
Audio Sampling Rates: 8 / 16 / 32 / 44.1 / 48 kHz
Environmental Noise Filtering: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, G, T), ISAPI, SDK, ISUP
User / Host: Up to 32 users (Administrator, operator, user)
Security: HTTPS, 802.1X (EAP-MD5), watermark, IP filter, WSSE, RTP/RTSP over HTTPS, TLS 1.2, MAC authentication, audit log
Network Storage: NAS (NFS / SMB / CIFS), ANR, NVR
Web Browser: IE 10 / 11 (plug-in), Chrome 57+, Firefox 52+

Imaging

Image Parameter Switching: Yes
Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance
Day / Night Switching: Day, Night, Auto, Schedule
WDR: 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface

Ethernet Interface: 1 × RJ45, 10/100 Mbps
On-Board Storage: MicroSD / SDHC / SDXC / TF up to 256 GB
Built-in Microphone: Yes
Built-in Speaker: 1.2 W, 95 dB @ 10 cm
Audio I/O:
- 1 input (line in), 3.3 Vpp, 4.7 KΩ
- 1 output (line out), 3.3 Vpp, 100 Ω
Alarm: 1 input, 1 output (max. 24 V DC, 1 A)
Reset Key: Yes

Events

Basic: Motion detection (human & vehicle), alarm I/O, flashing light, audible alarm, anomalies
Smart: Line crossing, intrusion, region entrance, region exiting, scene change detection (human & vehicle classification)
Linkage: FTP / NAS / memory card upload, notify center, email, alarm output, recording, capture, audible warning, white light flashing
Deep Learning: Perimeter protection (human & vehicle)

General

Power: 12 VDC ±25%, 0.88 A, max. 10.5 W; PoE 802.3af Class 3, max. 12.5 W
Material: Metal
Camera Dimensions: Ø 6.1 × 6.1 in. (155 × 155.3 mm)
Package Dimensions: 9 × 9 × 9 in. (230 × 230 × 230 mm)
Weight: Approx. 2.4 lbs (1,110 g)
Shipping Weight: Approx. 4.2 lbs (1,900 g)
Operating / Storage Conditions: -22° to 140° F (-30° to 60° C), ≤95% humidity
Languages (33): EN, RU, ET, BG, HU, EL, DE, IT, CZ, SK, FR, PL, NL, PT, ES, RO, DA, SV, NO, FI, HR, SL, SR, TR, KO, ZH-TW, TH, VI, JA, LV, LT, PT-BR, UA
General Functions: Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
Flashing Light: Yes

Certifications

EMC: FCC Part 15 Subpart B, CE-EMC, RCM, IC
Safety: UL 62368-1, CB (IEC 62368-1), CE-LVD
Environmental: CE-RoHS, WEEE, REACH
Protection: IP67 (IEC 60529-2013)
