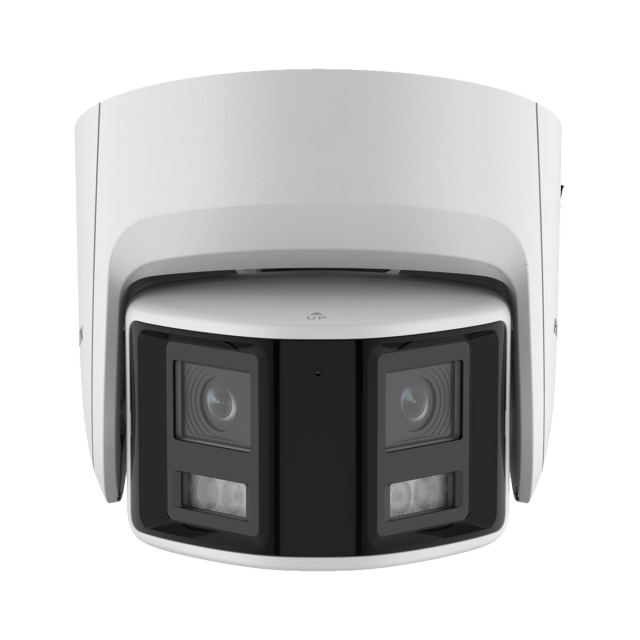

| Camera | - Image Sensor: 2 × 1/2.5" Progressive Scan CMOS
- Max. Resolution: 3632 × 1632
- Min. Illumination: 0.0005 Lux @ F1.0 (AGC on), 0 Lux with supplemental light
- Shutter Speed: 1/3 to 1/100,000 sec.
- Angle Adjustment: Pan -30° to 30°, Tilt -75° to 75°
|
| Lens | - Lens Type: Fixed focal, dual lens, 2.8 mm
- Focal Length & FOV: 2.8 mm - Horizontal 180°, Vertical 81°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 2 m to ∞
- DORI (2.8 mm Approx.): D 45 m (147 ft), O 17.5 m (57 ft), R 9 m (30 ft), I 4.5 m (15 ft)
|
| Supplemental Lighting | - Type: White
- Range: Up to 30 m (98 ft)
- Technology: Smart
|
| Video | - Main Stream:
- 50 Hz: 20 fps (3632 × 1632)
- 60 Hz: 20 fps (3632 × 1632)
- Sub-Stream:
- 50 Hz: 20 fps (1200 × 536, 960 × 432)
- 60 Hz: 20 fps (1200 × 536, 960 × 432)
- Video Compression:
- Main stream: H.265+ / H.265 / H.264+ / H.264
- Sub-stream: H.265 / H.264 / MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline, Main, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- SVC: H.264 and H.265 encoding
- ROI: 1 fixed region for main stream
|
| Audio | - Audio Type: Mono
- Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
- Audio Bit Rates:
- 64 Kbps (G.711 ulaw / alaw)
- 16 Kbps (G.722.1 / G.726)
- 32-192 Kbps (MP2L2)
- 8-320 Kbps (MP3)
- 16-64 Kbps (AAC-LC)
- Audio Sampling Rates: 8 / 16 / 32 / 44.1 / 48 kHz
- Environmental Noise Filtering: Yes
|
| Network | - Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, G, T), ISAPI, SDK
- User / Host: Up to 32 users (Administrator, operator, user)
- Security: Password protection, HTTPS, 802.1X (EAP-MD5), watermark, IP filter, TLS 1.2, MAC authentication, audit log
- Network Storage: NAS (NFS / SMB / CIFS), ANR
- Web Browsers: IE 10/11 (plug-in), Chrome 57+, Firefox 52+
|
| Imaging | - Image Parameter Switching: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance
- Day / Night Switch: Day, Night, Auto, Schedule
- WDR: 130 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
|
| Interface | - Ethernet Interface: 1 × RJ45 10/100 Mbps self-adaptive
- On-Board Storage: microSD / SDHC / SDXC up to 256 GB
- Built-in Microphone: Yes
- Built-in Speaker: Yes (Max. 1.2 W, 95 dB @ 10 cm)
- Audio I/O:
- 1 line in (3.3 Vpp, 4.7 KΩ)
- 1 line out (3.3 Vpp, 100 Ω)
- Alarm: 1 input, 1 output (max. 24 VDC / VAC, 1 A)
- Reset Key: Yes
|
| Events | - Basic: Motion detection (human & vehicle classification), alarm I/O, flashing light, audible alarm, exceptions
- Smart: Line crossing, intrusion, region entrance, region exiting, scene change detection
- Linkage: FTP / NAS / memory card upload, notify center, email, alarm output, recording, capture, audible warning, white flashing light
|
| General | - Power: 12 V DC ±25%, 0.88 A, max. 10.5 W; PoE 802.3af Class 3, max. 12.5 W
- Material: Metal base and cover
- Camera Dimensions: Ø140 × 145.6 mm (5.5 × 5.7 in.)
- Shipping Dimensions: 230 × 230 × 230 mm (9 × 9 × 9 in.)
- Weight: Approx. 920 g (2.0 lbs)
- Package Weight: Approx. 1,680 g (3.7 lbs)
- Operating & Storage Conditions: -30°C to 60°C, ≤95% humidity
- Languages: 33 languages supported
- General Functions: Anti-banding, heartbeat, mirror, flash log, pixel counter
- Light Flashing: Yes
|
| Certifications | - EMC: FCC Part 15 Subpart B, CE-EMC, RCM, IC
- Safety: UL 62368-1, CB (IEC 62368-1), CE-LVD
- Environmental: CE-RoHS, WEEE, REACH
- Protection: IP67 (IEC 60529-2013)
|
