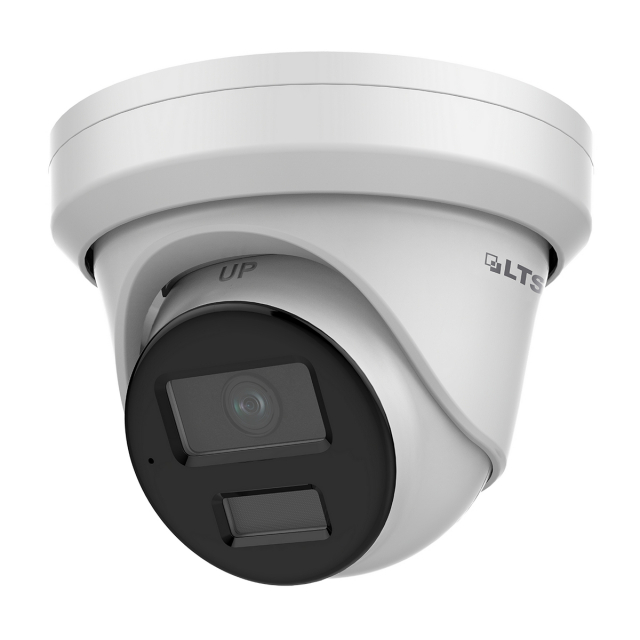

| Camera | - Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2688 × 1520
- Min. Illumination: Color 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
- Shutter Time: 1/3 sec. to 1/100,000 sec.
- Day & Night: IR cut filter
- Angle Adjustment: Pan 0°-360°, Tilt 0°-75°, Rotate 0°-360°
|
| Lens | - Lens Type: 2.8 mm Fixed focal lens
- Focal Length & FOV: 2.8 mm - Horizontal 100.2°, Vertical 54.7°, Diagonal 119.7°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 1.9 m to ∞
|
| DORI | - 2.8 mm: D 63 m (207 ft), O 25 m (82 ft), R 12 m (39 ft), I 6 m (20 ft)
|
| Illuminator | - Supplemental Light Types: IR, White Light
- Supplemental Light Range: Up to 40 m (131 ft)
- Smart Supplemental Lighting: Yes
- IR Wavelength: 850 nm
|
| Video | - Main Stream: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream:
- 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Supported under certain settings
- Video Compression:
- Main stream: H.265+ / H.265 / H.264+ / H.264
- Sub-stream: H.265 / H.264 / MJPEG
- Third stream: H.265 / H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline, Main, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- SVC: H.264 and H.265 encoding
- ROI: 1 fixed region for main stream and sub-stream
|
| Audio | - Audio Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
- Audio Bit Rates:
- 64 Kbps (G.711 ulaw / alaw)
- 16 Kbps (G.722.1 / G.726)
- 16-64 Kbps (AAC-LC)
- 32-192 Kbps (MP2L2)
- 8-320 Kbps (MP3)
- Audio Sampling Rates: 8 / 16 / 32 / 44.1 / 48 kHz
- Environmental Noise Filtering: Yes
|
| Network | - Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, G, T), ISAPI, SDK, ISUP
- User / Host: Up to 32 users (administrator, operator, user)
- Security: Password protection, HTTPS, 802.1X (EAP-TLS / LEAP / MD5), watermark, IP filter, TLS 1.1 / 1.2 / 1.3, MAC authentication, audit log
- Network Storage: NAS (NFS, SMB/CIFS), ANR
- Client: LTS Connect, NVMS, X-VMS
|
| Image | - Image Parameter Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- SNR: ≥ 52 dB
- WDR: 120 dB
- Privacy Mask: 4 programmable polygon masks
|
| Interface | - Ethernet Interface: 1 RJ45 10/100 Mbps self-adaptive port
- On-Board Storage: MicroSD / SDHC / SDXC up to 512 GB
- Built-in Microphone: Yes
- Reset Key: Yes
|
| Events | - Motion detection (human & vehicle classification)
- Video tampering alarm
- Exception / anomaly detection
- Line crossing, intrusion, region entrance, region exiting
- Scene change detection
- Face Capture: Yes
- Linkage: FTP / NAS / memory card upload, notify center, recording, capture, email
|
| General | - Power: 12 VDC ±25%, 0.6 A, max. 7.2 W; PoE 802.3af, max. 9 W
- Material: Metal cover and body
- Dimensions: Ø127.3 × 96.3 mm (Ø5 × 3.8 in)
- Package Dimensions: 150 × 150 × 141 mm (5.9 × 5.9 × 5.6 in)
- Weight: Approx. 550 g (1.2 lbs)
- Package Weight: Approx. 800 g (1.8 lbs)
- Operating Conditions: -30°C to 60°C, ≤95% humidity
- General Functions: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
|
| Certifications | - EMC: CE-EMC, FCC Part 15 Subpart B
- Safety: UL 62368-1, CB (IEC 62368-1), CE-LVD
- Environmental: CE-RoHS
- Protection: IP67 (IEC 60529-2013)
|
