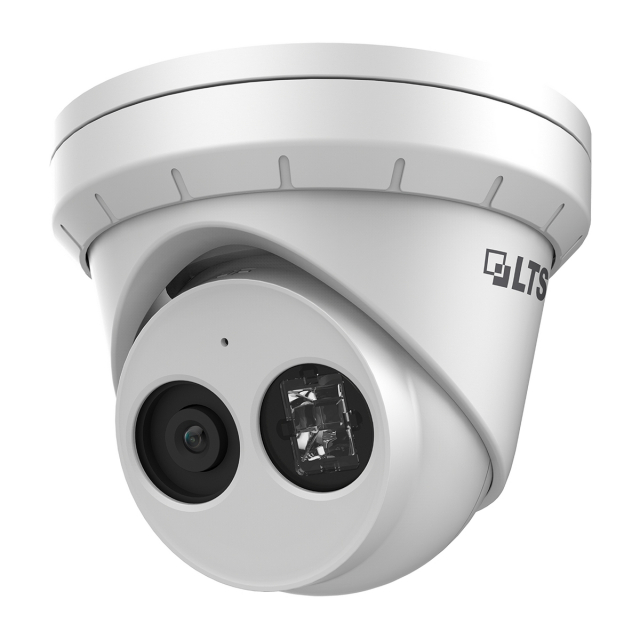

| Camera | - Image Sensor: 1/3' Progressive Scan CMOS
- Min. Illumination: Color 0.005 Lux @ (F1.6, AGC on), 0 Lux with IR on
- Shutter Speed: 1/3 to 1/100,000 sec.
- Slow Shutter: Yes
- P/N: P/N
- Wide Dynamic Range: 120 dB
- Day & Night: ICR Cut
- Angle Adjustment: Pan 0° to 360°, Tilt 0° to 75°, Rotate 0° to 360°
|
| Lens | - Lens Type & FOV:
- 2.8 mm: Horizontal 103°, Vertical 55°, Diagonal 122°
- 4 mm: Horizontal 84°, Vertical 45°, Diagonal 100°
- Aperture: F1.6
- Lens Mount: M12
|
| DORI | - 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
- 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
|
| Illuminator | - IR Range: Up to 98 ft (30 m)
- Wavelength: 850 nm
|
| Video | - Max. Resolution: 2688 × 1520
- Main Stream:
- 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream:
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression:
- Main stream: H.264 / H.264+ / H.265 / H.265+
- Sub-stream: H.264 / H.265 / MJPEG
- Third stream: H.264 / H.265
- Video Bit Rates: 32 Kbps to 8 Mbps
- H.264 Type: Baseline / Main / High Profile
- H.265 Type: Main Profile
- H.264+ Main Stream: Supported
- H.265+ Main Stream: Supported
- Bit Rate Control: CBR / VBR
- Scalable Video Coding (SVC): Yes
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
|
| Audio | - Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 /16 /32 /44.1 /48 kHz
- Audio Compression: G.711 ulaw / G.711 alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC
- Audio Bit Rate:
- 64 Kbps (G.711 ulaw / G.711 alaw)
- 16 Kbps (G.722.1)
- 16 Kbps (G.726)
- 16-64 Kbps (AAC)
- 32-192 Kbps (MP2L2)
- 8-320 Kbps (MP3)
|
| Network | - Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
- User / Host: Up to 32 users, 3 levels (administrator, operator, user)
- Network Storage: MicroSD / SDHC / SDXC (up to 256 GB), NAS (NFS, SMB/CIFS), ANR
|
| Web Browser | - Plug-in required live view: IE 10, IE 11
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
|
| Imaging | - Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Image Parameter Switching: Yes
- Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable via client software or web browser
|
| Interface | - Built-in Microphone: Yes
- On-board Storage: Built-in MicroSD up to 256 GB
- Hardware Reset: Yes
- Communication Interface: 1 RJ45 10/100 Mbps self-adaptive Ethernet port
|
| Event Types | - Basic Events: Motion detection (human/vehicle), video tampering alarm, exceptions/anomalies
- Face Detection: Yes
- Deep Learning Functions: Perimeter Protections, Line crossing detection, Intrusion detection, Supports human and vehicle target classification
|
| General | - Linkage Method: Upload to FTP / memory card / NAS, notify surveillance center, trigger record/capture, Email
- Web Client Languages (33): English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Functions: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- Software Reset: Yes
- Storage Conditions: -22° to 140° F (-30° to 60° C); Humidity ≤ 95% (non-condensing)
- Startup/Operating Conditions: -22° to 140° F (-30° to 60° C); Humidity ≤ 95% (non-condensing)
|
| Power Supply | - 12 VDC ± 25%, reverse polarity protection
- PoE: 802.3af, Class 3
- Power Consumption: 12 VDC, 0.5 A, max. 6 W; PoE (36-57 V), 0.19-0.12 A, max. 7 W
- Power Interface: Ø 5.5 mm coaxial power plug
|
| Materials | - Camera Body: Aluminum alloy
- Camera Dimensions: Ø 5.01 × 3.78 in. (Ø 127.3 × 95.9 mm)
- Package Dimensions: 5.9 × 5.9 × 5.6 in. (150 × 150 × 141 mm)
- Camera Weight: Approx. 1.3 lbs (600 g)
- Package Weight: Approx. 1.8 lbs (816 g)
|
| Certifications | - EMC: FCC, CE-EMC, RCM, IC, KC
- Safety: UL, CB, CE-LVD, BIS
- Environmental: CE-RoHS, WEEE, Reach
- Protections: IP67 (IEC 60529-2013)
|
