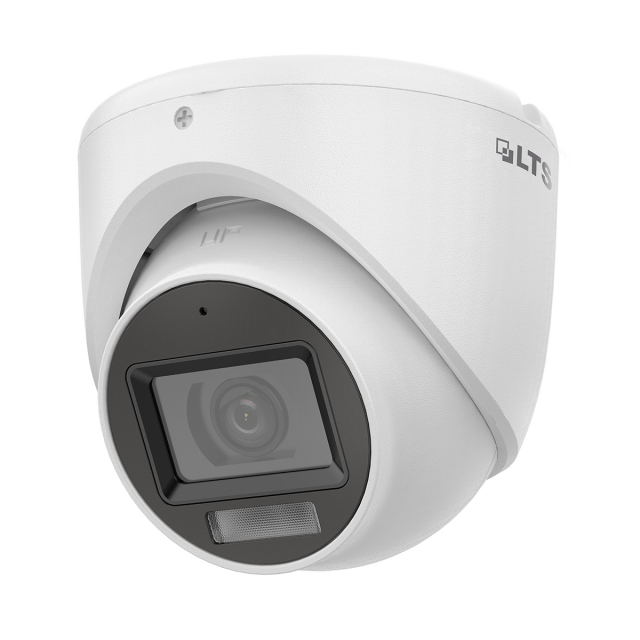

Buy LTS CMHT2152-28LFA, Platinum 5 MP Dual-Light Turret HD-TVI Camera

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Resolution:: Resolution: 5 MP

Features:

High quality imaging with 5 MP, 2960 x 1665 resolution
2.8 mm fixed lens
Up to 98 ft (30 m) IR distance for bright night imaging
Up to 66 ft (20 m) supplemental white light range for a bright night imaging
One switchable port for four signals - TVI / AHD / CVI / CVBS
Water and dust resistant (IP67)
Event triggered white light at night

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Image Sensor

3K CMOS

Max. Resolution

2960 (H) × 1665 (V)

Min. Illumination

0.01 Lux @ (F1.2, AGC on)
0 Lux with IR

Shutter Time

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°
Tilt: 0 to 75°
Rotation: 0 to 360°

Signal System

PAL / NTSC

Lens Type

2.8 mm fixed focal lens

Focal Length & Field of View

2.8 mm
Horizontal: 107°
Vertical: 64°
Diagonal: 129°

Lens Mount

M12

Supplemental Light Type

White Light, IR

Supplemental Light Range

IR: Up to 98 ft (30 m)
White Light: Up to 66 ft (20 m)

Image Settings

Brightness, Sharpness, Smart IR

Frame Rates

TVI: 5 MP @ 20 fps, 4 MP @ 25 fps / 30 fps, 1080p @ 25 fps / 30 fps
AHD: 5 MP @ 20 fps, 4 MP @ 25 fps / 30 fps
CVI: 4 MP @ 25 fps / 30 fps
CVBS: PAL / NTSC

Day / Night Mode

IR / White Light

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

Yes

White Balance

Auto / Manual

AGC

Yes

Video Output

Switchable TVI / AHD / CVI / CVBS

Audio

Microphone built-in, audio over coax cable

Materials

Metal

Dimensions

3.1 × Ø 3.4 in. (80 × Ø 85.1 mm)

Weight

Approx. 0.66 lbs (300 g)

Operating Conditions

-40° to 140° F (-40° to 60° C)
Humidity: 90% or less (non-condensation)

Language

English

Power Supply

12 VDC ± 25%
*LTS recommends using one power adapter for each camera

Power Consumption

Max. 2.9 W

Protection

IP67

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Image Sensor

3K CMOS

Max. Resolution

2960 (H) × 1665 (V)

Min. Illumination

0.01 Lux @ (F1.2, AGC on)
0 Lux with IR

Shutter Time

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°
Tilt: 0 to 75°
Rotation: 0 to 360°

Signal System

PAL / NTSC

Lens Type

2.8 mm fixed focal lens

Focal Length & Field of View

2.8 mm
Horizontal: 107°
Vertical: 64°
Diagonal: 129°

Lens Mount

M12

Supplemental Light Type

White Light, IR

Supplemental Light Range

IR: Up to 98 ft (30 m)
White Light: Up to 66 ft (20 m)

Image Settings

Brightness, Sharpness, Smart IR

Frame Rates

TVI: 5 MP @ 20 fps, 4 MP @ 25 fps / 30 fps, 1080p @ 25 fps / 30 fps
AHD: 5 MP @ 20 fps, 4 MP @ 25 fps / 30 fps
CVI: 4 MP @ 25 fps / 30 fps
CVBS: PAL / NTSC

Day / Night Mode

IR / White Light

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

Yes

White Balance

Auto / Manual

AGC

Yes

Video Output

Switchable TVI / AHD / CVI / CVBS

Audio

Microphone built-in, audio over coax cable

Materials

Metal

Dimensions

3.1 × Ø 3.4 in. (80 × Ø 85.1 mm)

Weight

Approx. 0.66 lbs (300 g)

Operating Conditions

-40° to 140° F (-40° to 60° C)
Humidity: 90% or less (non-condensation)

Language

English

Power Supply

12 VDC ± 25%
*LTS recommends using one power adapter for each camera

Power Consumption

Max. 2.9 W

Protection

IP67

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
