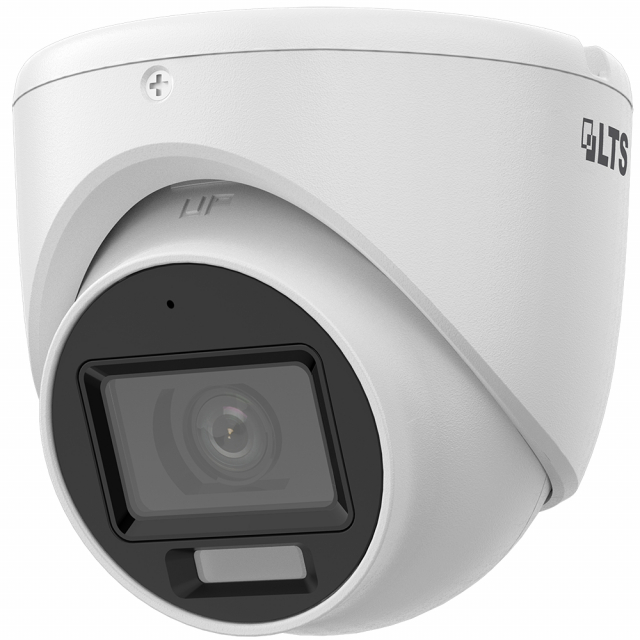

Buy LTS CMHT2122-28LF, Platinum 2 MP Turret HD-TVI Camera

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Resolution:: Resolution: 2 MP

Features:

High quality imaging with 2 MP, 1920 x 1080 resolution
Smart dual light optimizes security with flexible lighting options
2.8 mm fixed focal lens
Up to 65 ft (20 m) supplemental white light and IR range for bright night imaging
One switchable port for 4 signal options: TVI / AHD / CVI / CVBS
Water and dust resistance (IP67)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.02 Lux @ (F2.2, AGC ON)
0 Lux with IR

Shutter Time

NTSC: 1/30 s to 1/50,000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°
Tilt: 0 to 75°
Rotate: 0 to 360°

Signal System

PAL/NTSC

Lens Type

2.8 mm fixed focal lens

Focal Length & FOV

2.8 mm
Horizontal FOV: 97°
Vertical FOV: 54°
Diagonal FOV: 113°

Lens Mount

M12

Supplement Light Type

White Light, IR

Supplement Light Range

IR: Up to 20 m
White Light: Up to 20 m

Image Parameters

Switch STD/HIGH-SAT/HIGHLIGHT

Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080p @ 30 fps, 1080p @ 25 fps
AHD: 1080p @ 30 fps, 1080p @ 25 fps
CVI: 1080p @ 30 fps, 1080p @ 25 fps
CVBS: PAL/NTSC

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR/BLC/HLC/Global

White Balance

Auto/Manual

AGC

Yes

Video Output

Switchable TVI/AHD/CVI/CVBS

Material

Metal

Dimension

Ø85.1mm × 80 mm (Ø3.4" x 3.1")

Weight

Max. 290 g (0.64 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F)
Humidity: 90% or less (non-condensation)

Language

English

Power Supply

12 VDC ± 25%, Max. 3.5 W
*It is recommended to use one power adapter per camera.

Protection

IP67

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.02 Lux @ (F2.2, AGC ON)
0 Lux with IR

Shutter Time

NTSC: 1/30 s to 1/50,000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°
Tilt: 0 to 75°
Rotate: 0 to 360°

Signal System

PAL/NTSC

Lens Type

2.8 mm fixed focal lens

Focal Length & FOV

2.8 mm
Horizontal FOV: 97°
Vertical FOV: 54°
Diagonal FOV: 113°

Lens Mount

M12

Supplement Light Type

White Light, IR

Supplement Light Range

IR: Up to 20 m
White Light: Up to 20 m

Image Parameters

Switch STD/HIGH-SAT/HIGHLIGHT

Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080p @ 30 fps, 1080p @ 25 fps
AHD: 1080p @ 30 fps, 1080p @ 25 fps
CVI: 1080p @ 30 fps, 1080p @ 25 fps
CVBS: PAL/NTSC

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR/BLC/HLC/Global

White Balance

Auto/Manual

AGC

Yes

Video Output

Switchable TVI/AHD/CVI/CVBS

Material

Metal

Dimension

Ø85.1mm × 80 mm (Ø3.4" x 3.1")

Weight

Max. 290 g (0.64 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F)
Humidity: 90% or less (non-condensation)

Language

English

Power Supply

12 VDC ± 25%, Max. 3.5 W
*It is recommended to use one power adapter per camera.

Protection

IP67
