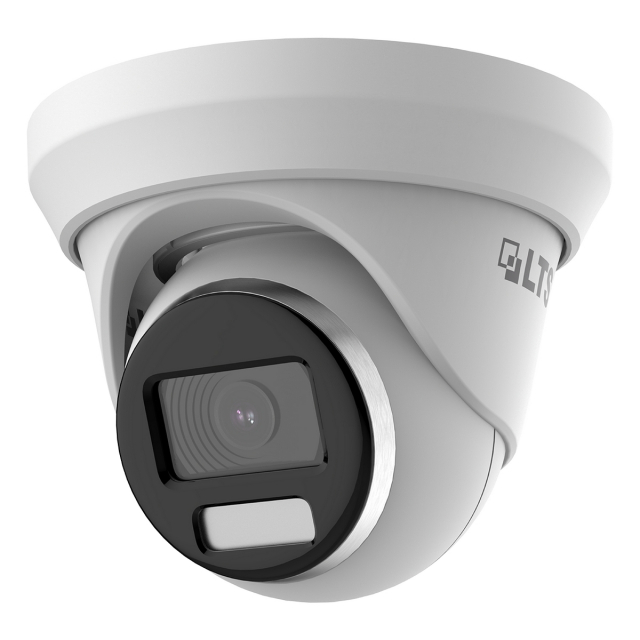

Buy LTS CMHT1782W-28CF, Platinum 4K Fixed Turret HD-TVI Camera

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

High-quality imaging with 8 MP, 3840 x 2160 resolution
Color imaging 24/7
Clear imaging against strong backlight with 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8 mm fixed focal lens
Supplemental lighting reaches up to 130 ft for bright night imaging
Water and dust resistant (IP67)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Image Sensor

8 MP CMOS

Resolution

3840 (H) × 2160 (V)

Frame Rate

TVI: 8 MP @ 15 fps
3K @ 20 fps
1080P @ 30 fps

Min. Illumination

0.0005 Lux @ (F1.0, AGC on)
0 Lux with supplemental light

Shutter Speed

1/15 to 1/50,000 sec.

Lens

2.8 mm fixed focal lens

Field of View

Horizontal: 110°
Vertical: 59°
Diagonal: 131°

Lens Mount

M16

Light Alarm

Solid Light Alarm (White Light)

Day & Night

Color

Wide Dynamic Range

≥ 130 dB

Angle Adjustment

Pan: 0° to 360°
Tilt: 0° to 180°
Rotation: 0° to 360°

White Light

Auto
Off

Image Mode

STD
HIGH-SAT
HIGHLIGHT

AGC

Yes

Day / Night Mode

Color

White Balance

Auto
Manual

Auto Exposure Mode

WDR
BLC
HLC
Global
HLS

Privacy Mask

4 programmable privacy masks

Motion Detection

4 programmable motion areas

Noise Reduction

3D DNR
2D DNR

Language

English

Function

Brightness
Contrast
Mirror
Sharpness
Anti-Banding
Smart Light

Video Output

1 HD analog output

Operating Conditions

-40° to 130°F
Humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 5.1 W

Protection Levels

IP67

Materials

Main body: Metal
Decorative ring: Plastic

White Light Range

Up to 130 ft (40 m)

Dimensions

7.65 × 3.07 × 2.93 in. (194.2 × 78 × 74.5 mm)

Weight

Approx. 0.77 lbs (350 g)

Notes
