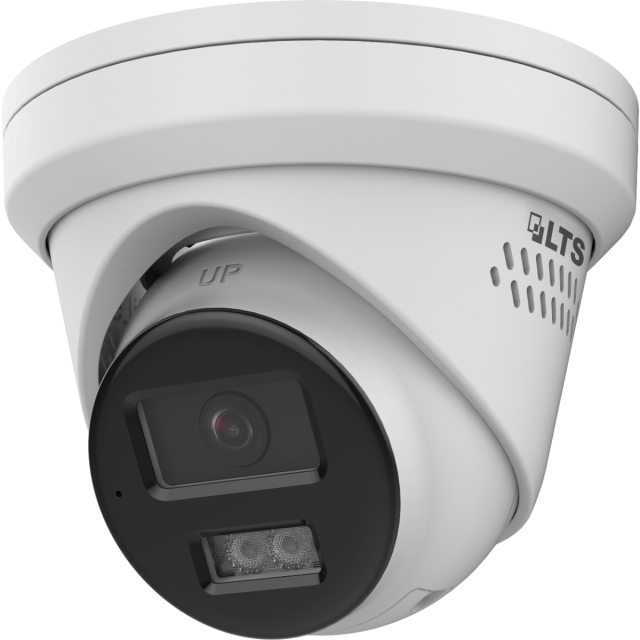

LTS CMHT1752-28LS 5 MP TVI Turret Camera With Dual Light

  • Brand LTS
  • Part # CMHT1752-28LS
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
Share:

Features:

  • High quality imaging with 5MP 2960 × 1665 resolution
  • 2.8 mm fixed focal lens
  • Provides bright night imaging with up to 40 meters of white light and 40 meters of IR distance
  • Smart-Hybrid Light: Enhance your security with adaptable lighting options
  • Active strobe light and audio alarm
  • High-quality audio with audio over coaxial cable, integrated microphone, and built-in speaker
  • Enables real-time communication with built-in two-way audio
  • Water and dust resistant (IP67)

High quality imaging with 5MP 2960 × 1665 resolution 2.8 mm fixed focal lens Provides bright night imaging with up to 40 meters of white light and 40 meters of IR distance Smart-Hybrid Light: Enhance your security with adaptable lighting options Active strobe light and audio alarm High-quality audio with audio over coaxial cable, integrated microphone, and built-in speaker Enables real-time communication with built-in two-way audio Water and dust resistant (IP67).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Optional Accessories
Reviews
Image Sensor5 MP CMOS
Maximum Resolution2960 (H) × 1665 (V)
Minimum Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Day & NightICR
Signal SystemPAL / NTSC
Angle AdjustmentPan: 0°-360°, Tilt: 0°-75°, Rotate: 0°-360°
Lens Type2.8 mm fixed lens
Field of View2.8 mm: H: 112°, V: 62°, D: 131°
Lens MountM12
Microphone1 built-in microphone (pickup radius up to 5 m)
Speaker2 W built-in speaker (range up to 5 m)
Supplement Light TypeSmart IR, White Light
Supplement Light RangeIR: Up to 40 m; White Light: Up to 40 m
Frame RateTVI: 5 MP @ 10 / 12.5 / 20 / 25 fps;
4 MP @ 25 / 30 fps;
1080p @ 25 / 30 fps
Day/Night ModeAuto / Color
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR, BLC, HLC, Global, HLS
Image SettingsAnti-banding, Brightness, Sharpness, Smart IR
Noise Reduction2D DNR
White BalanceAuto / Manual
Audio FunctionsEcho Cancellation, AI Noise Reduction, Automatic Gain Control
Video Output1 HD Analog Output
AlarmFlashing Light Alarm (Red & Blue)
Built-in MicrophoneYes
Built-in SpeakerYes
Power Supply12 VDC ± 25%, Max. 9.6 W
(Recommended: one adapter per camera)
15 VDC adapter required when using high-impedance cable (e.g., 18 m extension cable)
MaterialMain Body: Metal; Enclosure: Plastic
DimensionsØ 110 mm × 102.7 mm (Ø 4.33" × 4.04")
WeightApprox. 385 g (0.85 lb.)
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F); ≤ 90% humidity (non-condensing)
LanguageEnglish
ProtectionIP67
Product Details
Image Sensor5 MP CMOS
Maximum Resolution2960 (H) × 1665 (V)
Minimum Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Day & NightICR
Signal SystemPAL / NTSC
Angle AdjustmentPan: 0°-360°, Tilt: 0°-75°, Rotate: 0°-360°
Lens Type2.8 mm fixed lens
Field of View2.8 mm: H: 112°, V: 62°, D: 131°
Lens MountM12
Microphone1 built-in microphone (pickup radius up to 5 m)
Speaker2 W built-in speaker (range up to 5 m)
Supplement Light TypeSmart IR, White Light
Supplement Light RangeIR: Up to 40 m; White Light: Up to 40 m
Frame RateTVI: 5 MP @ 10 / 12.5 / 20 / 25 fps;
4 MP @ 25 / 30 fps;
1080p @ 25 / 30 fps
Day/Night ModeAuto / Color
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR, BLC, HLC, Global, HLS
Image SettingsAnti-banding, Brightness, Sharpness, Smart IR
Noise Reduction2D DNR
White BalanceAuto / Manual
Audio FunctionsEcho Cancellation, AI Noise Reduction, Automatic Gain Control
Video Output1 HD Analog Output
AlarmFlashing Light Alarm (Red & Blue)
Built-in MicrophoneYes
Built-in SpeakerYes
Power Supply12 VDC ± 25%, Max. 9.6 W
(Recommended: one adapter per camera)
15 VDC adapter required when using high-impedance cable (e.g., 18 m extension cable)
MaterialMain Body: Metal; Enclosure: Plastic
DimensionsØ 110 mm × 102.7 mm (Ø 4.33" × 4.04")
WeightApprox. 385 g (0.85 lb.)
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F); ≤ 90% humidity (non-condensing)
LanguageEnglish
ProtectionIP67
