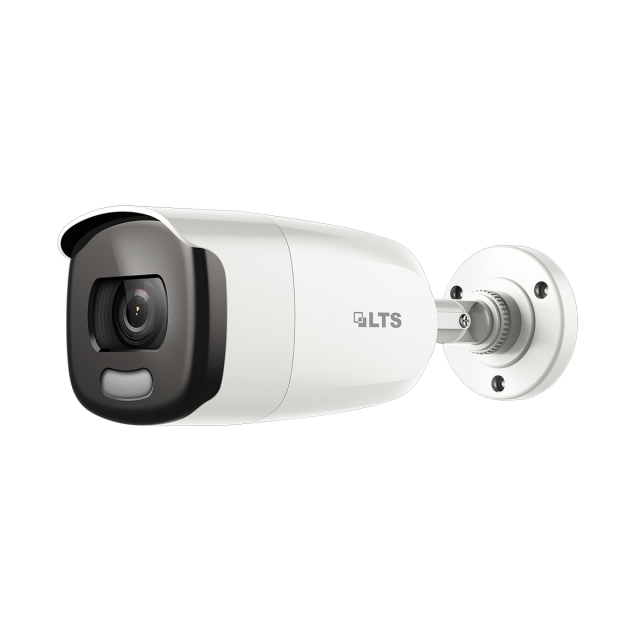

Buy LTS CMHR9252W-28CFN, Platinum 5 MP Bullet HD-TVI Camera

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Discontinued.
5 MP, 2560 x 1944 resolution
24-hour color image
130 dB true WDR, 3D DNR
2.8 mm fixed focal lens
Smart Light, up to 130 ft (40 m) white light distance
4-in-1 video output (switchable among TVI / AHD / CVI / CVBS)
IP67

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Image Sensor

5 MP CMOS

Signal System

PAL / NTSC

Resolution

2560 (H) × 1944 (V)

Frame Rate

TVI: 5 MP @ 20 fps; 4 MP @ 30 fps / 25 fps; 1080p @ 30 fps / 25 fps
CVI: 4 MP @ 30 fps / 25 fps
AHD: 5 MP @ 20 fps; 4 MP @ 30 fps / 25 fps
CVBS: PAL / NTSC

Minimum Illumination

0.0005 Lux @ (F1.0, AGC on), 0 Lux with White Light

Shutter Speed

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Slow Shutter

Max. 16×

Lens

2.8 mm fixed lens

Field of View

Horizontal: 99.7°, Vertical: 72°, Diagonal: 139.8°

Lens Mount

M16

Strobe Light Alarm

Yes

Day & Night

Color

Wide Dynamic Range

≥ 130 dB

Angle Adjustment

Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°

Menu Options

White Light: Auto / Off
Image Mode: STD / HIGH-SAT
AGC: Yes
Day/Night Mode: Color
White Balance: Auto / Manual
Auto Exposure: WDR / BLC / HLC / Global / HLS / Anti-banding
Privacy Mask: 4 programmable zones
Motion Detection: 4 programmable areas
Noise Reduction: 3D DNR
Language: English
Functions: Brightness, Sharpness, Mirror, Smart Light

Video Output

Switchable TVI / AHD / CVI / CVBS

Operating Conditions

-40° to 140° F (-40° to 60° C); ≤ 90% humidity (non-condensing)

Power Supply

12 VDC ± 25% (Recommended: one adapter per camera)

Power Consumption

Max. 4.9 W

Protection Level

IP67

Materials

Front Cover: Metal
Main Body: Plastic

White Light Range

Up to 131 ft (40 m)

Dimensions

3.25 × 3.04 × 8.49 in. (82.6 × 77.1 × 215.7 mm)

Weight

Approx. 0.91 lbs (415 g)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Image Sensor

5 MP CMOS

Signal System

PAL / NTSC

Resolution

2560 (H) × 1944 (V)

Frame Rate

TVI: 5 MP @ 20 fps; 4 MP @ 30 fps / 25 fps; 1080p @ 30 fps / 25 fps
CVI: 4 MP @ 30 fps / 25 fps
AHD: 5 MP @ 20 fps; 4 MP @ 30 fps / 25 fps
CVBS: PAL / NTSC

Minimum Illumination

0.0005 Lux @ (F1.0, AGC on), 0 Lux with White Light

Shutter Speed

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Slow Shutter

Max. 16×

Lens

2.8 mm fixed lens

Field of View

Horizontal: 99.7°, Vertical: 72°, Diagonal: 139.8°

Lens Mount

M16

Strobe Light Alarm

Yes

Day & Night

Color

Wide Dynamic Range

≥ 130 dB

Angle Adjustment

Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°

Menu Options

White Light: Auto / Off
Image Mode: STD / HIGH-SAT
AGC: Yes
Day/Night Mode: Color
White Balance: Auto / Manual
Auto Exposure: WDR / BLC / HLC / Global / HLS / Anti-banding
Privacy Mask: 4 programmable zones
Motion Detection: 4 programmable areas
Noise Reduction: 3D DNR
Language: English
Functions: Brightness, Sharpness, Mirror, Smart Light

Video Output

Switchable TVI / AHD / CVI / CVBS

Operating Conditions

-40° to 140° F (-40° to 60° C); ≤ 90% humidity (non-condensing)

Power Supply

12 VDC ± 25% (Recommended: one adapter per camera)

Power Consumption

Max. 4.9 W

Protection Level

IP67

Materials

Front Cover: Metal
Main Body: Plastic

White Light Range

Up to 131 ft (40 m)

Dimensions

3.25 × 3.04 × 8.49 in. (82.6 × 77.1 × 215.7 mm)

Weight

Approx. 0.91 lbs (415 g)
