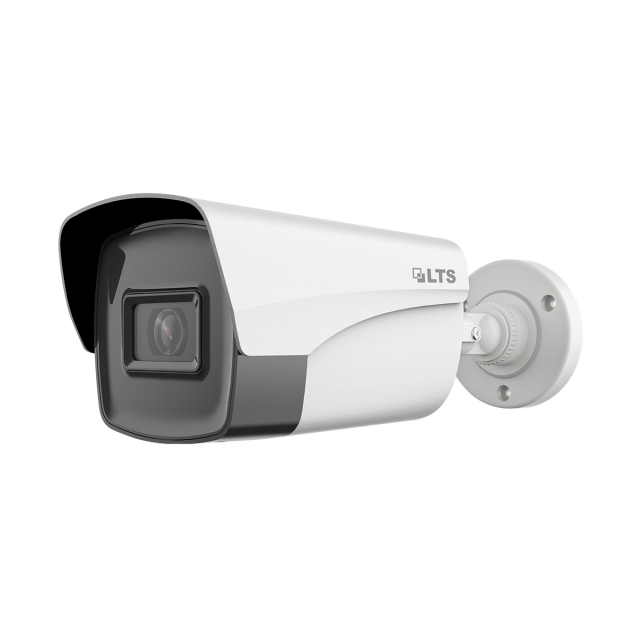

Buy LTS CMHR9252N-28FN, Platinum 5 MP Fixed Bullet HD-TVI Camera

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

5 MP, 2560 × 1944 resolution
2.8 mm, 3.6 mm fixed focal lens
Smart IR, up to 131 ft (40 m) IR distance
4-in-1 video output (TVI / AHD / CVI / CVBS)
IP67 protection

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Image Sensor

5 MP CMOS

Signal System

PAL / NTSC

Resolution

2560 (H) × 1944 (V)

Frame Rates

TVI: 5 MP @ 20 fps, 4 MP @ 30 fps / 25 fps, 1080p @ 30 fps / 25 fps
AHD: 5 MP @ 20 fps, 4 MP @ 30 fps / 25 fps
CVI: 4 MP @ 30 fps / 25 fps
CVBS: PAL / NTSC

Minimum Illumination

0.01 Lux @ (F1.2, AGC on), 0 Lux with IR

Shutter Speed

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Lens Options

2.8 mm or 3.6 mm fixed lenses

Field of View

2.8 mm: H: 85°, V: 63°, D: 110°
3.6 mm: H: 80°, V: 63°, D: 105°

Lens Mount

M12

Day & Night

ICR

Wide Dynamic Range

Digital WDR

Angle Adjustment

Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°

Menu Options

Image Mode: STD / HIGH-SAT
AGC: Yes
Day/Night Mode: Auto / Color / B & W
White Balance: Auto / Manual
Auto Exposure (AE): DWDR / BLC / HLC / Global
Noise Reduction: 2D DNR
Language: English
Functions: Brightness, Sharpness, Mirror, Smart IR

Video Output

Switchable TVI / AHD / CVI / CVBS

Operating Conditions

-40° to 140° F (-40° to 60° C); ≤ 90% humidity (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 4.3 W

Protection Level

IP67

Materials

Front Cover: Metal
Main Body: Plastic

IR Range

Up to 131 ft (40 m)

Communication

Up the coax (TVI output)

Dimensions

3.10 × 2.97 × 7.28 in. (78.9 × 75.4 × 184.9 mm)

Weight

Approx. 0.67 lbs (304 g)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Image Sensor

5 MP CMOS

Signal System

PAL / NTSC

Resolution

2560 (H) × 1944 (V)

Frame Rates

TVI: 5 MP @ 20 fps, 4 MP @ 30 fps / 25 fps, 1080p @ 30 fps / 25 fps
AHD: 5 MP @ 20 fps, 4 MP @ 30 fps / 25 fps
CVI: 4 MP @ 30 fps / 25 fps
CVBS: PAL / NTSC

Minimum Illumination

0.01 Lux @ (F1.2, AGC on), 0 Lux with IR

Shutter Speed

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Lens Options

2.8 mm or 3.6 mm fixed lenses

Field of View

2.8 mm: H: 85°, V: 63°, D: 110°
3.6 mm: H: 80°, V: 63°, D: 105°

Lens Mount

M12

Day & Night

ICR

Wide Dynamic Range

Digital WDR

Angle Adjustment

Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°

Menu Options

Image Mode: STD / HIGH-SAT
AGC: Yes
Day/Night Mode: Auto / Color / B & W
White Balance: Auto / Manual
Auto Exposure (AE): DWDR / BLC / HLC / Global
Noise Reduction: 2D DNR
Language: English
Functions: Brightness, Sharpness, Mirror, Smart IR

Video Output

Switchable TVI / AHD / CVI / CVBS

Operating Conditions

-40° to 140° F (-40° to 60° C); ≤ 90% humidity (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption

Max. 4.3 W

Protection Level

IP67

Materials

Front Cover: Metal
Main Body: Plastic

IR Range

Up to 131 ft (40 m)

Communication

Up the coax (TVI output)

Dimensions

3.10 × 2.97 × 7.28 in. (78.9 × 75.4 × 184.9 mm)

Weight

Approx. 0.67 lbs (304 g)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
