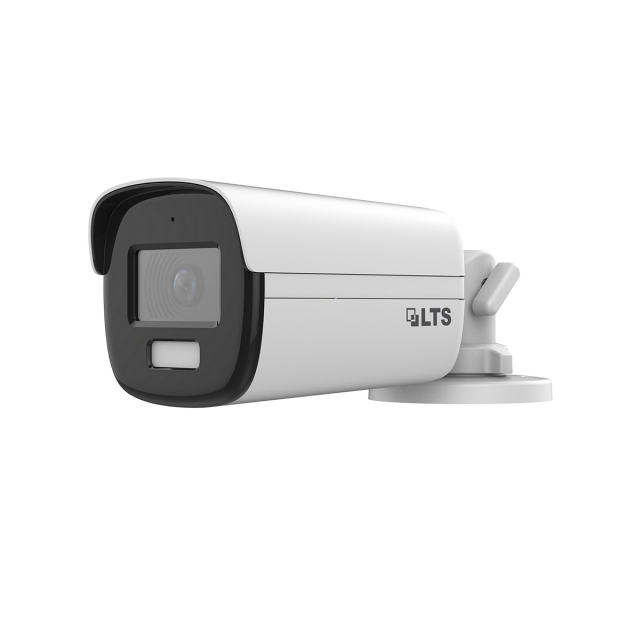

Buy LTS CMHR9222NW-28CFN, Platinum 2 MP Color 24/7 Fixed Bullet Camera

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Discontinued.
High quality imaging with 2 MP, 1920 x 1080 resolution
24/7 color imaging with f1.0 aperture
Clear imaging against strong back light with 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Up to 131 ft (40 m) white light distance for bright night imaging
One switchable port for four signals (TVI / AHD / CVI / CVBS)
Water and dust resistant (IP67)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Image Sensor

2 MP CMOS

Signal System

PAL / NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: 1080p @ 25 fps / 30 fps
CVI: 1080p @ 25 fps / 30 fps
AHD: 1080p @ 25 fps / 30 fps
CVBS: PAL / NTSC

Minimum Illumination

0.0005 Lux @ (F1.0, AGC on), 0 Lux with white light on

Shutter Speed

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Slow Shutter

Max. 16×

Lenses

2.8 mm, 3.6 mm, 6 mm Fixed Lens

Field of View

2.8 mm: H: 98°, V: 52°, D: 116°
3.6 mm: H: 77°, V: 42°, D: 91°
6 mm: H: 51°, V: 28°, D: 59°

Lens Mount

M12

Light Alarm

Solid White Light Alarm

Day & Night

Color

Wide Dynamic Range

≥ 130 dB

Angle Adjustment

Pan: 0°-360°, Tilt: 0°-180°, Rotation: 0°-360°

Menu Options

White Light: Auto / Off
Image Mode: STD / HIGH-SAT / HIGHLIGHT
AGC: Yes
Day/Night Mode: Color
White Balance: Auto / Manual
Auto Exposure Mode: WDR, BLC, HLC, Global, HLS
Privacy Mask: 4 programmable zones
Motion Detection: 4 programmable areas
Noise Reduction: 3D DNR / 2D DNR
Language: English
Functions: Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light
Lighting Mode: White Light

Video Output

Switchable TVI / AHD / CVI / CVBS

Operating Conditions

-40° to 140° F (-40° to 60° C); ≤ 90% humidity (non-condensing)

Power Supply

12 VDC ± 25% (Recommended: separate adapter per camera)

Power Consumption

Max. 4.2 W

Protection Level

IP67

Material

Metal

White Light Range

Up to 131 ft (40 m)

Dimensions

7.65 × 3.07 × 2.93 in. (194.2 × 78 × 74.5 mm)

Weight

Approx. 1.13 lbs (514.5 g)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Image Sensor

2 MP CMOS

Signal System

PAL / NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: 1080p @ 25 fps / 30 fps
CVI: 1080p @ 25 fps / 30 fps
AHD: 1080p @ 25 fps / 30 fps
CVBS: PAL / NTSC

Minimum Illumination

0.0005 Lux @ (F1.0, AGC on), 0 Lux with white light on

Shutter Speed

PAL: 1/25 to 1/50,000 sec.
NTSC: 1/30 to 1/50,000 sec.

Slow Shutter

Max. 16×

Lenses

2.8 mm, 3.6 mm, 6 mm Fixed Lens

Field of View

2.8 mm: H: 98°, V: 52°, D: 116°
3.6 mm: H: 77°, V: 42°, D: 91°
6 mm: H: 51°, V: 28°, D: 59°

Lens Mount

M12

Light Alarm

Solid White Light Alarm

Day & Night

Color

Wide Dynamic Range

≥ 130 dB

Angle Adjustment

Pan: 0°-360°, Tilt: 0°-180°, Rotation: 0°-360°

Menu Options

White Light: Auto / Off
Image Mode: STD / HIGH-SAT / HIGHLIGHT
AGC: Yes
Day/Night Mode: Color
White Balance: Auto / Manual
Auto Exposure Mode: WDR, BLC, HLC, Global, HLS
Privacy Mask: 4 programmable zones
Motion Detection: 4 programmable areas
Noise Reduction: 3D DNR / 2D DNR
Language: English
Functions: Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light
Lighting Mode: White Light

Video Output

Switchable TVI / AHD / CVI / CVBS

Operating Conditions

-40° to 140° F (-40° to 60° C); ≤ 90% humidity (non-condensing)

Power Supply

12 VDC ± 25% (Recommended: separate adapter per camera)

Power Consumption

Max. 4.2 W

Protection Level

IP67

Material

Metal

White Light Range

Up to 131 ft (40 m)

Dimensions

7.65 × 3.07 × 2.93 in. (194.2 × 78 × 74.5 mm)

Weight

Approx. 1.13 lbs (514.5 g)

Optional Accessories

Note

Note: Please read description carefully. Do not base your order on the picture presented.
