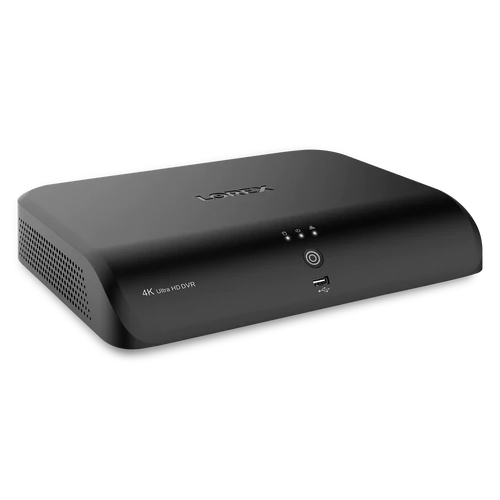

| D881 Series - 4K Fusion Wired DVR System |
| Video Transmission Technology | HD Analog |
| Channels | 8 Wired + 4 Fusion Wi-Fi |
| Video Input(s) | 8 x 1Vp-p, CVBS, 75ohms, BNC Type |
| Video Outputs(s) | 1 x VGA, 1 x HDMI |
| Audio Input(s) | 1 ch: RCA |
| Audio Output(s) | 1 ch: RCA |
| Display Output Resolution | Up to 4K |
| Live Display | 8 ch: 1, 4, 8 ,9, 12 |
| Live Display Speed (Max) | 8 ch: 240fps NTSC, 200fps PAL |
| OSD | On/Off |
| System Navigation | USB Mouse |
| Recording Resolution | 4K (8MP)/5MP/4MP/3MP/ 1080p/720p |
| Recording Frame Rate | - 4K (8MP)@15fps
- 5MP@30fps
- 4 MP@30fps
- 1080p@30fps
- 720p@ 30fps
|
| Recording Schedule | - Schedule recordings through Continuoun
- Motion
- Smart Motion (Person and Vehicle)
- Face Detection
- Alarm
- Day
- Hour per channel
|
| Back-Up File Format | DAV/ASF/AVI/MP4 |
| Simultaneous Playback | 8 ch: up to 4 Channels |
| Playback Speed | Variable Max 16x |
| Search | - By Time/Date
- All Motion Events or Smart Motion (Person/Vehicle)
- Area Search
|
| Hard Drive Bays | 1 Bay |
| Hard Drive Capacity | Up to 1 x 8TB (SATA) |
| Backup Media | USB Flash Drive & USB HDD |
| Smart Motion Detection Support | Person and Vehicle Motion Detection (All Channels) |
| Wired/Wireless Fusion support | Smart Search |
| Face Detection | Yes (two channels) |
| Face Recognition | Yes (two channels) |
| Virtual Fence | Yes (two channels) |
| Active Deterrence Support | Yes |
| Privacy Masking | Yes |
| Panic Button | Yes |
| Voice Control | - Amazon Alexa
- Google Assistant
|
| Streaming Options | - Chromecast
- Apple TV
- Amazon Echo Show
- Google Home Hub
|
| Mobile Viewing | |
| Compatible APP | Lorex Home |
| PC/Mac Remote Viewing | Yes/Lorex Cloud |
| Email Notification | Text and Snapshot |
| Network Interface | |
| DDNS | Yes (Optional) |
| USB interface | USB 2.0 x 2 |
| Power Consumption | < 15W (Excl. HDD) |
| Supply Voltage | 12V/2A |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| Unit Dimensions (W x D x H) | 12.9 x 9.6 x 2.1" / 328 x 245 x 53mm |
| Unit Weight | 2.75 lbs / 1.26Kg (Excl. HDD) |
| Humidity | 10 ~ 90% RH |
| Package | Plain Box |
| Package Weight | 5.50lb / 2.4kg |
| Package Dimensions (W x D x H) | 13.07 x 15.43 x 5.31" / 331 x 391 x 135mm |

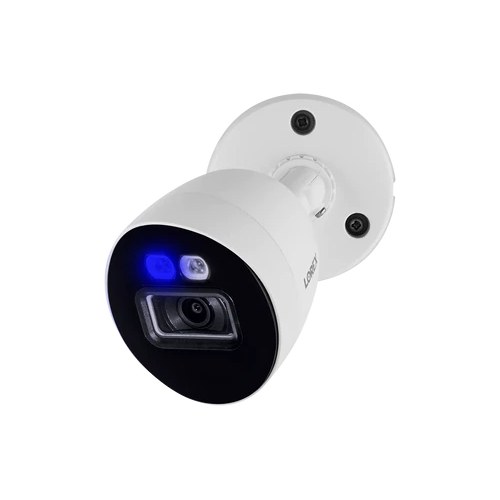

| C884DA - 4K Deterrence Bullet CVI Wired Camera |
| Video Transmission Technology | Analog HD |
| Image Sensor | 8MP/4K 1/2.7" CMOS |
| Video Format | NTSC |
| Viewing Angle (Horizontal) | 125° |
| Lens/Lens Type | 2.8mm F2.0/ Fixed |
| Resolution/Frame Rate | 4K (8MP)@ 15fps |
| Effective Pixels | H:3840 x V:2160 |
| Termination | BNC |
| Microphone/Speaker | No/Yes |
| Siren | Yes |
| 2-Way Talk | No |
| IR Night Vision Range | 135ft (41m)/ 90ft (28m) |
| Color Night Vision | Yes |
| Deterrence | Yes - Warning Light + Siren |
| Camera Housing Material | Polycarbonate |
| Power Requirements | 12 V DC +/- 10% |
| Power Consumption (max) | 430mA / 5.16W |
| Camera Dimensions (W x D x H) | 2.9 x 6.4 x 3.3 (73mm x 164mm x 83mm) |
| Camera Weight | 0.55lb / 0.25kg |
| Operating Temperature | -40F ~ 131°F / -40C ~ 55°C |
| Humidity | < 95% RH |
| Environmental Rating | IP67 (Indoor/Outdoor) |
| Package Type | Brown Box |
| Package Dimensions (W x D x H) | 8.1 x 4.1 x 3.8" / 205 x 104 x 96mm |
| Package Weight | 2.2lb / 0.9kg |

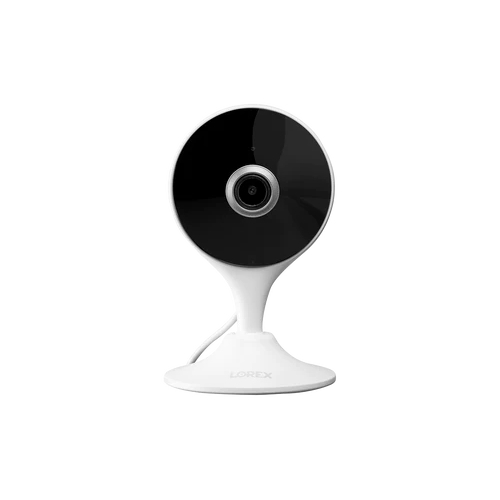

| W461AS Series - 2K Indoor Wi-Fi Security Camera |
| Image Sensor | 1/2.7 " CMOS |
| Sensor Resolution | 4 MP |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Aperture | F2.0 |
| Shutter Speed | 1/3 s to - 1/100,000s |
| Video Resolution | 2560 x 1440 |
| Aspect Ratio | 16:9 |
| Frame Rate | 1440p HD @25fps |
| HDR | No |
| White Balance | Auto |
| Gain Contro | Auto |
| Noise Reduction | 3D DNR |
| Signal-Noise Ratio (SNR) | ≤ 53dB |
| Video Codec | H.265, H.264 |
| Horizontal FOV | 106° |
| Diagonal FOV | 125° |
| Vertical FOV | 56° |
| White LED | No |
| Infrared Wavelength | 850 nm |
| Night Vision Range | 32ft / 10m |
| Wi-Fi Frequency Band | 2.4 GHz |
| Microphone | Yes |
| Speaker | Yes |
| 2-Way Talk | Yes |
| Audio Codec | AAC |
| Includes | 16GB MicroSD |
| Capacity | Up to 256GB MicroSD, Class 10 or Higher |
| Max Power | 3.5 W |
| Max Voltage | 5 VDC |
| Max Current | 0.7 A |
| Remote Viewing | Lorex Home App |
| Camera Dimensions (W x D x H) | 2.7 x 2.7 x 4.3" / 68 x 68 x 109mm |
| Weight | 0.53 lbs / 0.24 kg |
| Storage Temperature | -10°C to 45°C / 14°F to 113°F |
| Storage Humidity | ≤95% RH |
| Operating Temperature | -10°C to 45°C / 14°F to 113°F |
| Operating Humidity | ≤95% RH |
| Package Type | Giftbox |
| Package Weight | 0.82 lbs / 0.33 kg |
| Package Dimensions (W x D x H) | 4.8 x 3.4 x 6.7" / 122 x 86 x 170mm |
| F461AQ Series - 2K Outdoor Wi-Fi Camera |
| Image Sensor | 1/2.7" CMOS |
| Sensor Resolution | 4 MP |
| Lens Type | Fixed |
| Focal Length | 3.6 mm |
| Aperture | F1.6 |
| Shutter Speed | 1/3 s to - 1/100,000s |
| Video Resolution | 2560 x 1440 |
| Aspect Ratio | 16:9 |
| Frame Rate | 15fps |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D Temporal |
| Signal-Noise Ratio (SNR) | ≤ 64.7dB |
| Video Codec | H.265, H.264 |
| Horizontal FOV | 90° |
| Diagonal FOV | 110° |
| Vertical FOV | 45° |
| White LED | IR LED |
| Infrared Wavelength | 850 nm |
| Night Vision Range | 33ft / 10m |
| Wi-Fi Frequency Band | 2.4 GHz |
| Microphone | Yes |
| Speaker | Yes |
| 2-Way Talk | Yes |
| Audio Codec | G.711a; G.711Mu; AAC |
| Includes | 32GB MicroSD |
| Capacity | Up to 256GB MicroSD, Class 10 or Higher |
| Max Power | 6.2W |
| Max Voltage | 12 VDC |
| Max Current | 0.52 A |
| Ethernet Port | Yes |
| Remote Viewing | Lorex Home App |
| Camera Dimensions (WxDxH) | 3.7 x 4.2 x 7.7" / 100 x 107 x 196mm |
| Camera Weight | 1.25 lb / 0.57 kg |
| Storage Temperature | -22°F to 140°F / -30°C to 60°C |
| Storage Humidity | ≤95% RH |
| Operating Temperature | -22°F to 140°F / -30°C to 60°C |
| Operating Humidity | ≤95% RH |
| Package Type | Retail Box |
| Package Weight | 2.4lb / 1.1kg |
| Package Dimensions (W x D x H) | 6.6 x 6.5 x 11.6" / 168 x 165 x 295mm |
