Buy Lorex NC4K8F-3228BB, 32-Channel NVR System with 28 Black Cameras

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Number of Cameras:: Number of Cameras: 28 Cameras

Lorex, NC4K8F-3228BB, 32-Channel Nocturnal NVR System with 28 Black 4K (8MP) IP Smart Security Cameras with Real-Time 30FPS Recording and Listen-in Audio

NC4K8F-3228BB Includes Only:

NVR N882A38B:
- 1 x 4K Ultra HD Pro Series NVR
- 1 x Power Adapter
- 1 x USB Mouse
- 1 x Ethernet Cable
- 1 x HDMI Cable
- Quick Setup Guide
16-Channel Poe Switch ACCLPS263B:
- Centralized power distribution - Easy all-in-one PoE switch
- 1 Gigabit rated RJ45/SFP port for fast device/network connection
- High speed transmission of IP surveillance data
- 220W total PoE power budget (up to 30.8W per port)
- Convenient Real-time PoE usage LED indicators
28 x Bullet Camera LNB9242B:
- 1 x IP Bullet Camera
- 1 x Ethernet Cable
- 1 x Mounting Kit
- 1 x Mounting Template

NVR N882A38B Features:

Record and view video up to 4K (8MP) resolution
View live footage in up to 30fps and digitally zoom in on distant objects for better clarity 2 hard drive bays with up to 2 x 10TB of storage space
Security grade hard drive designed for advanced processing and the workload of 24/7 recording
Storage mirroring for continuous back-up of data from one hard drive to another
Get Motion push notifications when motion from a person/vehicle is detected
Reduce unnecessary alerts and false alarms with advanced motion detection
Use Smart Search to filter motion events for reviewing footage quickly and easily
This NVR system contains a built-in 16-channel capacity

	Multiple Recording Options Record security footage continuously, during scheduled times, or when movement is detected. Motion recordings include a pre-recording function that will go back to record the five seconds before activity is detected.

Multiple Recording Options

Record security footage continuously, during scheduled times, or when movement is detected. Motion recordings include a pre-recording function that will go back to record the five seconds before activity is detected.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

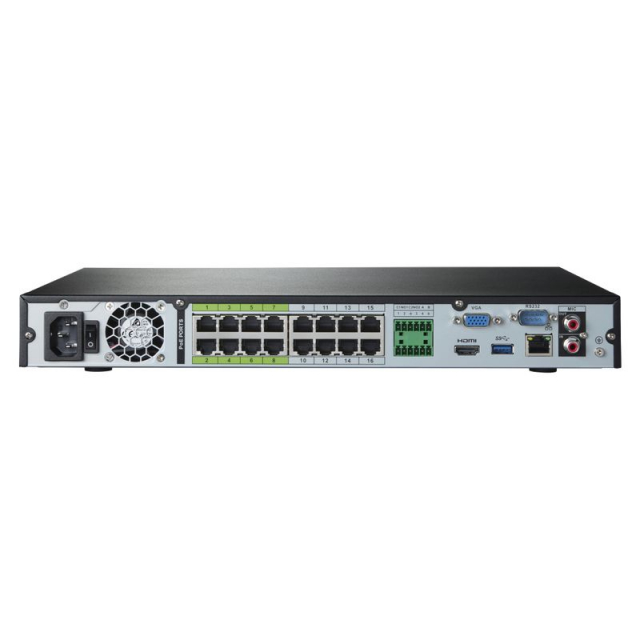

Network Video Recorder NVR N882A38B

Video Transmission Technology

Channels

Video Input

16 x PoE

Video Outputs

1 x VGA/1 x HDMI

Audio Input

1 x RCA

Audio Output

1 x RCA

Alarm In

4 channels

Alarm Out

2 channels

Display Output Resolution

up to 4K UHD, Auto Detect

Live Display

1/4/8/9/16

Live Display Speed (Max)

Up to 4ch 4K at30fps

OSD

On/Off

System Navigation

USB Mouse, Front Panel Buttons

Recording Resolution

4K (8MP)/5MP/4MP/3MP/
1080p/720p

Recording Frame Rate

up to 30fps

Recording scheduling

Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Alarm, Day, Hour per channel

Back-up Media

USB, USB HDD

Video Compression

H.265 / H.264

Simultaneous Playback

4ch at4K 30fps

Playback Speed

Variable Max 16x

Search

By Time/Date, All Motion Events or Smart Search (Person and Vehicle), Area search

Hard Drive Bays

2 Bay

Hard Drive Capacity

Up to 2 x 10TB (SATA)

Backup Media

USB Flash Drive, USB HDD

Storage Mirroring

Yes

Smart Motion Detection

Support for Person and Vehicle Detection

Mobile Viewing

Android, iOS

Compatible APP

Lorex Cloud

Email Notification

Text and Snapshot

PC/Mac Remote Viewing

Yes /Lorex Cloud

Network Interface

1000 Base-TX (Gigabit), RJ45

Network Bit Rate

320Mbps total

USB interface

USB 2.0 x 2

FW Upgrade

USB/Network

Watchdog Function

Yes

Power Consumption

Approx. 15W (no HDD included)

Supply Voltage

100VAC-240VAC, 50/60hz

Total PoE Power Output

16 PoE: Max 25.5W for single port, 220W total

Unit Dimensions (W x D x H)

14.7 x 12.9 x 2.1" / 375 x 327 x 53mm

Unit Weight

5.8lb / 2.6kg (without HDD)

Operating Temperature 1

14° ~ 131°F / -10° ~ 55°C

Humidity

10 ~ 90% RH

Package

Plain Box

Package Weight

11.5lb / 5.2kg

Package Dimensions (W x D x H)

21.1 x 16.3 x 6.7" / 536 x 414 x 170mm

Package Cube

1.33cbf / 0.038cbm

PoE Switch ACCLPS263B

Ports

16x 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports
1x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port
1x 1000Base-X SFP interface, shared with port 17

PoE Standard

IEEE 802.3af / 802.3at

PoE Power Output

30.8 watts with 51V DC output ability (maximum)

Total Power Output

220 watts across ports 1~16

PoE Class

Class 0/1/2/3/4

Standard Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Operating Humidity

5 ~ 95% (non-condensing)

Operating Temperature

32° ~ 122°F / 0° ~ 50°C

Power Input

100~240V AC, 50/60Hz, 3.5A

Dimensions (W x D x H)

17.36 x 8.20 x 1.73" / 440mm x 208 x 44mm

Weight

5.8lbs / 2.6kg

Package Weight

3.7kg / 8.1lbs

Package Dimensions: (W x D x H)

21.8 x 11.6 x 3.4" / 553 x 294 x 86mm

Package Cube

0.017cbm / 0.58cft

Contents

1 x 16+1 Port PoE+ Switch, power cable

Bullet Camera LNB9242B

Video Transmission Technology

Image Sensor

4K (8MP) 1/2.8" CMOS

Video Format

NTSC

Video Compression

H.265/H.264H (Main Stream & Sub Stream)

Viewing Angle (Horizontal)

107°

Lens/Lens type

2.8mm F1.4 / Fixed

Resolution/Frame rate

Up to 4K (8MP) at30fps

Effective Pixels

H:3840 x V:2160

HDR

Yes

Termination

RJ45

Microphone/Speaker

Yes (Listen-in Audio)/No

Siren

2-Way Talk

Night Vision Range

150ft (46m) / 98ft (30m)

Color Night Vision

Yes

Smart Motion Detection Plus

Yes- Person and Vehicle Detection

Deterrence

Body Material

Aluminum Alloy

Power Requirements

PoE (Power over Ethernet Class -802.3af)/12V DC

Power Consumption (max)

510mA / Max 6.12W

Camera Dimensions (H x D)

2.9 x 7.4" / 74 x 187mm

Camera Weight

1.05lb / 0.48kg

Operating Temperature

-40°F ~ 140°F / -40°C ~ 60°C

Humidity

< 95% RH

Environmental Rating

IP67 (Indoor/Outdoor)

Junction Boxes

ACJNCD3B (white)

Package Type

Plain box

Package Weight

3.8 lbs / 1.7 kg

Package Dimensions (W x D x H)

16 x 5.7 x 4.5" / 405 x 145 x 115mm

Package Cube

0.24cbf / 0.0067cbm

Product Details

Network Video Recorder NVR N882A38B

Video Transmission Technology

Channels

Video Input

16 x PoE

Video Outputs

1 x VGA/1 x HDMI

Audio Input

1 x RCA

Audio Output

1 x RCA

Alarm In

4 channels

Alarm Out

2 channels

Display Output Resolution

up to 4K UHD, Auto Detect

Live Display

1/4/8/9/16

Live Display Speed (Max)

Up to 4ch 4K at30fps

OSD

On/Off

System Navigation

USB Mouse, Front Panel Buttons

Recording Resolution

4K (8MP)/5MP/4MP/3MP/
1080p/720p

Recording Frame Rate

up to 30fps

Recording scheduling

Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Alarm, Day, Hour per channel

Back-up Media

USB, USB HDD

Video Compression

H.265 / H.264

Simultaneous Playback

4ch at4K 30fps

Playback Speed

Variable Max 16x

Search

By Time/Date, All Motion Events or Smart Search (Person and Vehicle), Area search

Hard Drive Bays

2 Bay

Hard Drive Capacity

Up to 2 x 10TB (SATA)

Backup Media

USB Flash Drive, USB HDD

Storage Mirroring

Yes

Smart Motion Detection

Support for Person and Vehicle Detection

Mobile Viewing

Android, iOS

Compatible APP

Lorex Cloud

Email Notification

Text and Snapshot

PC/Mac Remote Viewing

Yes /Lorex Cloud

Network Interface

1000 Base-TX (Gigabit), RJ45

Network Bit Rate

320Mbps total

USB interface

USB 2.0 x 2

FW Upgrade

USB/Network

Watchdog Function

Yes

Power Consumption

Approx. 15W (no HDD included)

Supply Voltage

100VAC-240VAC, 50/60hz

Total PoE Power Output

16 PoE: Max 25.5W for single port, 220W total

Unit Dimensions (W x D x H)

14.7 x 12.9 x 2.1" / 375 x 327 x 53mm

Unit Weight

5.8lb / 2.6kg (without HDD)

Operating Temperature 1

14° ~ 131°F / -10° ~ 55°C

Humidity

10 ~ 90% RH

Package

Plain Box

Package Weight

11.5lb / 5.2kg

Package Dimensions (W x D x H)

21.1 x 16.3 x 6.7" / 536 x 414 x 170mm

Package Cube

1.33cbf / 0.038cbm

PoE Switch ACCLPS263B

Ports

16x 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports
1x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port
1x 1000Base-X SFP interface, shared with port 17

PoE Standard

IEEE 802.3af / 802.3at

PoE Power Output

30.8 watts with 51V DC output ability (maximum)

Total Power Output

220 watts across ports 1~16

PoE Class

Class 0/1/2/3/4

Standard Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus

Operating Humidity

5 ~ 95% (non-condensing)

Operating Temperature

32° ~ 122°F / 0° ~ 50°C

Power Input

100~240V AC, 50/60Hz, 3.5A

Dimensions (W x D x H)

17.36 x 8.20 x 1.73" / 440mm x 208 x 44mm

Weight

5.8lbs / 2.6kg

Package Weight

3.7kg / 8.1lbs

Package Dimensions: (W x D x H)

21.8 x 11.6 x 3.4" / 553 x 294 x 86mm

Package Cube

0.017cbm / 0.58cft

Contents

1 x 16+1 Port PoE+ Switch, power cable

Bullet Camera LNB9242B

Video Transmission Technology

Image Sensor

4K (8MP) 1/2.8" CMOS

Video Format

NTSC

Video Compression

H.265/H.264H (Main Stream & Sub Stream)

Viewing Angle (Horizontal)

107°

Lens/Lens type

2.8mm F1.4 / Fixed

Resolution/Frame rate

Up to 4K (8MP) at30fps

Effective Pixels

H:3840 x V:2160

HDR

Yes

Termination

RJ45

Microphone/Speaker

Yes (Listen-in Audio)/No

Siren

2-Way Talk

Night Vision Range

150ft (46m) / 98ft (30m)

Color Night Vision

Yes

Smart Motion Detection Plus

Yes- Person and Vehicle Detection

Deterrence

Body Material

Aluminum Alloy

Power Requirements

PoE (Power over Ethernet Class -802.3af)/12V DC

Power Consumption (max)

510mA / Max 6.12W

Camera Dimensions (H x D)

2.9 x 7.4" / 74 x 187mm

Camera Weight

1.05lb / 0.48kg

Operating Temperature

-40°F ~ 140°F / -40°C ~ 60°C

Humidity

< 95% RH

Environmental Rating

IP67 (Indoor/Outdoor)

Junction Boxes

ACJNCD3B (white)

Package Type

Plain box

Package Weight

3.8 lbs / 1.7 kg

Package Dimensions (W x D x H)

16 x 5.7 x 4.5" / 405 x 145 x 115mm

Package Cube

0.24cbf / 0.0067cbm

Note

Note: Please read description carefully. Do not base your order on the picture presented.
