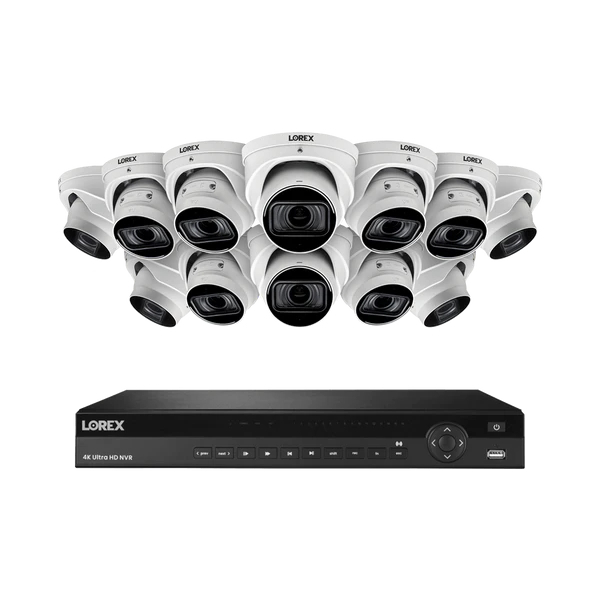

| 4K Network Video Recorder |
| Video Transmission Technology | IP |
| Channels | 16 Channels |
| Video Input | 16 x PoE |
| Video Outputs | 1 xVGA/1 x HDMI |
| Audio Input | 1 ch: RCA Type |
| Audio Output | 1 ch: RCA Type |
| Alarm IN | 4 channels |
| Alarm OUT | 2 channels |
| System Navigation | USB Mouse/Front Panel Buttons |
| Display Output Resolution | Up to 4K UHD, Auto Detect |
| Live Display | 1,4,8, 9,16 |
| Live Display Speed (Max) | up to 4ch 4K@15fps |
| OSD | On/Off |
| Video Compression | H.265/H.264 |
| Recording Resolution | 4K (8MP)/5MP/3MP/ 1080p/720p |
| Recording Frame Rate | up to 30fps |
| Recording Schedule | - Schedule recordings through Continuoun
- Motion
- Smart Motion (Person and Vehicle)
- Face Detection
- Alarm
- Day
- Hour per channel
|
| Back-Up Media | USB, USB HDD |
| Simultaneous Playback | 4ch@4K/30fps |
| Playback Speed | Variable Max 16x |
| Search | - By Time/Date
- All Motion Events or Smart Motion (Person/Vehicle)
- Area Search
|
| Hard Drive Bays | 2 Bays |
| Hard Drive Capacity | Up to 2 x 10TB (SATA) |
| Backup Media | USB Flash Drive & USB HDD |
| Mobile Viewing | |
| Compatible APP | Lorex Home |
| PC/Mac Remote Viewing | Yes/Lorex Cloud |
| Email Notification | Text and Snapshot |
| Network Interface | |
| Network Bit Rate | 320 Mbps total |
| USB interface | USB 2.0 x 2 |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| FW Upgrade | USB/Network |
| Watchdog Function | Yes |
| Power Consumption | Approx. 13.2W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60hz, DC48V/2A |
| Total PoE Power Output | 16 PoE: Max 25.5W for single port, 220W total |
| Unit Dimensions (W x D x H) | 14.7 x 12.9 x 2.1" / 375 x 327 x 53 mm |
| Unit Weight | 5.8 lbs / 2.6 kg (excl. HDD) |
| Humidity | 10 ~ 90% RH |
| Package | Plain Box |
| Package Weight | 11.6lb / 5.7kg |
| Package Dimensions | (W x D x H)21.5 x 16.3 x 6.7" / 546 x 414 x 170mm |
| 4K Ultra HD Smart IP Nocturnal Motorized Varifocal Camera |
| Video Compression | H.265/H.264H (Main Stream & Sub Stream) |
| Video Transmission Technology | IP |
| Image Sensor | 8MP/4K 1/2.8" CMOS |
| Video Format | NTSC |
| Viewing Angle (Horizontal) | 113-31° |
| Lens/Lens Type | 2.7mm to 13.5mm F1.5 / Motorized Varifocal |
| Resolution/Frame Rate | Up to 4K (8MP) @30fps |
| Effective Pixels | H:3840 x V:2160 |
| HDR | Yes |
| Termination | RJ45 |
| Microphone/Speaker | No/Yes |
| Siren | No |
| Two-way Talk | No |
| IR Night Vision Range | 150ft (45m)/ 98ft (30m) |
| Color Night Vision | Yes |
| Smart Motion Detection | Yes - Person and Vehicle Detection Plus |
| Deterrence | No |
| Camera Housing Material | Aluminum Alloy |
| SD Card Slot | Yes |
| Power Requirements | PoE (Power over Ethernet Class -802.3af)/12V DC |
| Power Consumption (max) | 917mA / 11W |
| Camera Dimensions (H x Dia) | 4.2 x 4.8" / 108 x 122mm |
| Camera Weight | 1.55lbs / 0.70kg |
| Operating Temperature | -40°F ~ 140°F /-40°C ~ 60°C |
| Humidity | < 95% RH |
| Environmental Rating | IP67 (Indoor/Outdoor) |
| Package Type | Retail Box |
| Package Dimensions (W x D x H) | 11.4 x 6.2 x 5.2" / 290 x 158 x 132mm |
| Package Weight | 3.2lb / 1.45kg |
