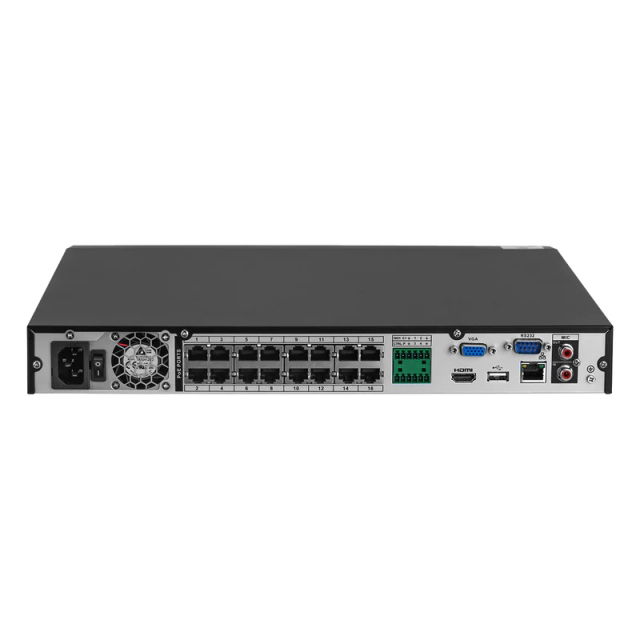

| N863B Series - 4K 16-Channel NVR with Fusion |
| Video Transmission Technology | IP |
| Channels | 16 Channels |
| Video Input | 16 x PoE |
| Video Outputs | 1 xVGA/1 x HDMI |
| Audio Input | 1 ch: RCA Type |
| Audio Output | 1 ch: RCA Type |
| Alarm IN | 4 channels |
| Alarm OUT | 2 channels |
| System Navigation | USB Mouse |
| Display Output Resolution | Up to 4K UHD, Auto Detect |
| Live Display | 1,4,8,9,16 |
| OSD | On/Off |
| Video Compression | H.265/H.264 |
| Recording Resolution | 4K (8MP)/5MP/3MP/ 1080p/720p |
| Recording Frame Rate | - 4K@15fps
- 5MP@30fps
- 1080p@30fps
- 720p@30fps
|
| Recording Schedule | - Schedule recordings through Continuoun
- Motion
- Smart Motion (Person and Vehicle)
- Face Detection
- Alarm
- Day
- Hour per channel
|
| Back-Up File Format | DAV/ASF/AVI/MP4 |
| Simultaneous Playback | 2ch@4K/30fps or 4ch@4K15fps |
| Playback Speed | Variable Max 8x |
| Search | - By Time/Date
- All Motion Events or Smart Motion (Person/Vehicle5)
- Area Search
|
| Hard Drive Bays | 2 Bays |
| Hard Drive Capacity | Up to 2 x 8TB (SATA) |
| Backup Media | USB Flash Drive & USB HDD |
| Selectable Siren support | Yes |
| Smart Motion Detection | Yes: Person & Vehicle Motion Detection |
| Person & Vehicle Motion Detection | Yes |
| Face Detection Support | Yes |
| Active View Support | Yes |
| Mask Detection Support | Yes |
| Active Deterrence Support | Yes |
| Panic Button | Yes |
| Safeguard | Yes |
| Smart Search | Yes |
| Wired/Wireless Fusion supported | Yes |
| Sensor Fusion support | Yes |
| Voice Control | - Amazon Alexa
- Google Assistant
|
| Streaming Options | - Chromecast
- Apple TV
- Amazon Echo Show
- Google Home Hub
- Lenovo Smart Display
|
| DDNS | Yes (Optional) |
| Mobile Viewing | |
| Compatible APP | Lorex Home |
| PC/Mac Remote Viewing | Yes/Lorex Cloud |
| Email Notification | Text and Snapshot |
| Network Interface | |
| Network Bit Rate | 200 Mbps total |
| USB interface | USB 2.0 x 2 |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| FW Upgrade | USB/Network |
| Watchdog Function | Yes |
| Power Consumption | Approx. 13.2W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60hz, DC48V/2A |
| Total PoE Power Output | PoE: Max 25.5W for single port, 130W total |
| Unit Dimensions (W x D x H) | 14.7 x 12.9 x 2.1" / 375 x 327 x 53 mm |
| Unit Weight | 5.8 lbs / 2.6 kg (excl. HDD) |
| Humidity | 10 ~ 90% RH |
| Package | Plain Box |
| Package Weight | 11.02lb / 4.9kg |
| Package Dimensions (W x D x H) | 21.1 x 16.3 x 6.7" / 538 x 414 x 170mm |

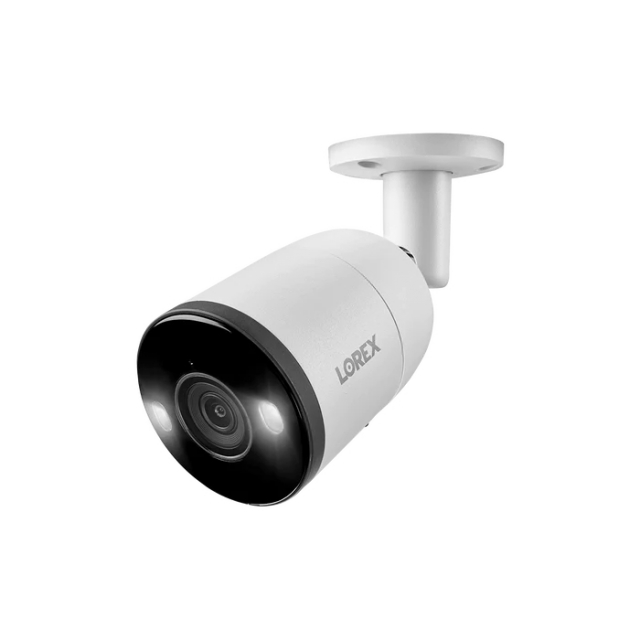

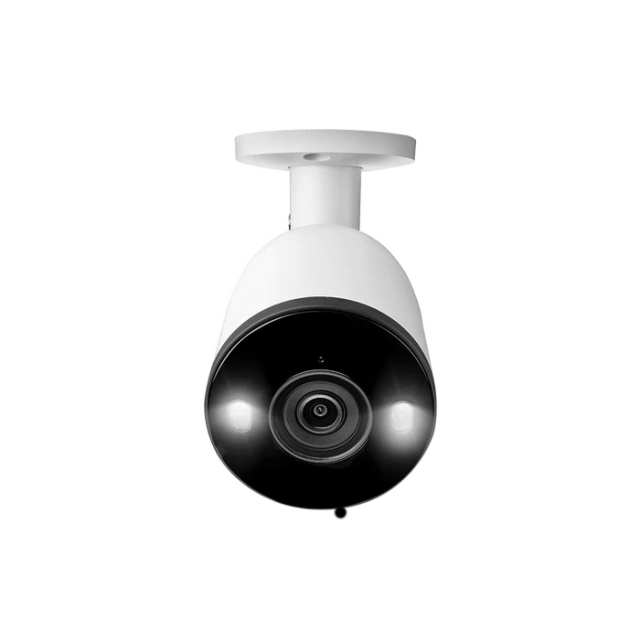

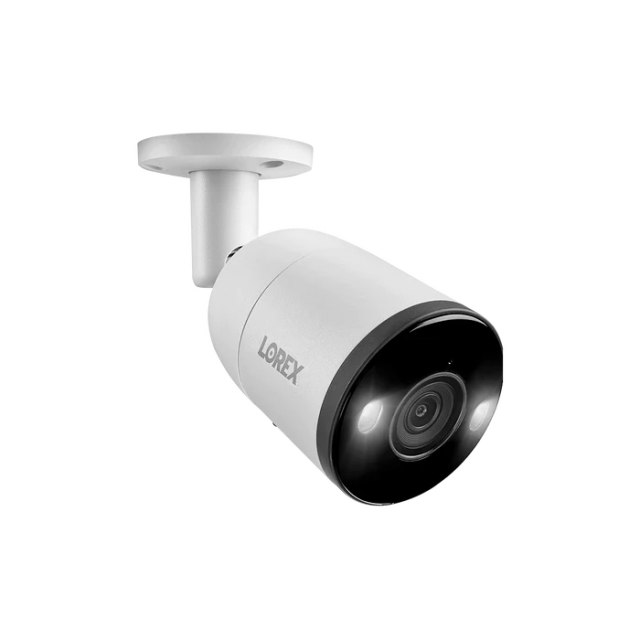

| E893AB Series - 4K Ultra HD Smart Deterrence IP Camera |
| Video Compression | H.265/H.264H (Main Stream & Sub Stream) |
| Video Transmission Technology | IP |
| Image Sensor | 8MP/4K 1/2.8" CMOS |
| Video Format | NTSC |
| Viewing Angle (Horizontal) | 108° |
| Lens/Lens Type | 2.8mm F2.0/ Fixed |
| Resolution/Frame Rate | - 4K(8MP)@15fps
- 5MP@30fps
- 1080p@30fps
- 720p@30fps
|
| Effective Pixels | H:3840 x V:2160 |
| HDR | Yes |
| Termination | RJ45 |
| Microphone/Speaker | Yes/Yes |
| Siren | Yes |
| Two-way Talk | Yes |
| IR Night Vision Range | 150ft (45m)/ 98ft (30m) |
| Color Night Vision | Yes |
| Smart Motion Detection Plus | Yes - Person and Vehicle Detection |
| Face Detection | Yes |
| Mask Detection | Yes |
| Safeguard | Yes - object missing or left behind |
| Supports in App Quick Messaging | Yes |
| Active Deterrence | Yes - Warning Light + Siren + Two-way Talk |
| Camera Housing Material | Aluminum Alloy |
| SD Card Slot | Yes |
| Power Requirements | PoE (Power over Ethernet Class -802.3af)/12V DC |
| Power Consumption (max) | 660mA / 9.5W |
| Camera Dimensions (W x D x H) | 2.9 x 6.9 x 2.9" (73mm x 175mm x70mm) |
| Camera Weight | 1.10lbs / 0.49kg |
| Operating Temperature | -22°F ~ 140°F /-30°C ~ 60°C |
| Humidity | < 95% RH |
| Environmental Rating | IP67 (Indoor/Outdoor) |
| Package Type | Retail Box |
| Package Dimensions (W x D x H) | 15.0 x 5.3 x 4.9" / 380 x 134 x 125mm |
| Package Weight | 3.1lb / 1.4kg |
