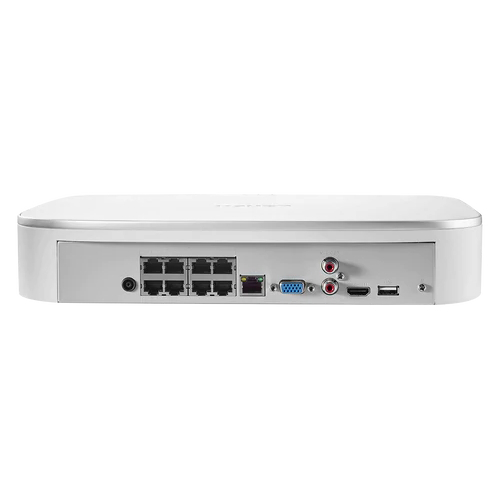

| N845 Series - 4K Fusion Wired NVR System |
| Video Transmission Technology | IP |
| Channels | 16 Channels |
| Video Input | 8 x PoE, 8 x Wi-Fi Fusion |
| Video Outputs | 1 xVGA/1 x HDMI |
| Audio Input | 1 ch: RCA Type |
| Audio Output | 1 ch: RCA Type |
| System Navigation | USB Mouse |
| Display Output Resolution | Up to 4K UHD, Auto Detect |
| Live Display | 1,4,8,9,16 |
| OSD | On/Off |
| Video Compression | H.265/H.264 |
| Recording Resolution | 4K (8MP)/5MP/3MP/ 1080p/720p |
| Recording Frame Rate | - 4K@15fps
- 5MP@30fps
- 1080p@30fps
- 720p@30fps
|
| Recording Schedule | - Schedule recordings through Continuoun
- Motion
- Smart Motion (Person and Vehicle)
- Face Detection
- Alarm
- Day
- Hour per channel
|
| Back-Up File Format | DAV/ASF/AVI/MP4 |
| Simultaneous Playback | Up to 4 channels, synchronized |
| Playback Speed | Variable Max 8x |
| Search | - By Time/Date
- All Motion Events or Smart Motion (Person/Vehicle5)
- Area Search
|
| Hard Drive Bays | 1 Bay |
| Hard Drive Capacity | Up to 8TB (SATA) |
| Backup Media | USB Flash Drive & USB HDD |
| Selectable Siren support | Yes |
| Smart Motion Detection | Yes: Person & Vehicle Motion Detection |
| Person & Vehicle Motion Detection | Yes |
| Face Detection Support | Yes |
| Active View Support | Yes |
| Mask Detection Support | Yes |
| Active Deterrence Support | Yes |
| Panic Button | Yes |
| Safeguard | Yes |
| Smart Search | Yes |
| Wired/Wireless Fusion supported | Yes |
| Sensor Fusion support | Yes |
| Voice Control | - Amazon Alexa
- Google Assistant
|
| Streaming Options | - Chromecast
- Apple TV
- Amazon Echo Show
- Google Home Hub
- Lenovo Smart Display
|
| DDNS | Yes (Optional) |
| Mobile Viewing | |
| Compatible APP | Lorex Home |
| PC/Mac Remote Viewing | Yes/Lorex Cloud |
| Email Notification | Text and Snapshot |
| Network Interface | |
| Network Bit Rate | 80Mbps total, 48~8192kbps per camera |
| USB interface | USB 2.0 x 2 |
| Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
| FW Upgrade | USB/Network |
| Watchdog Function | Yes |
| Power Consumption | Approx. 8.3W (no HDD included) |
| Supply Voltage | 100VAC-240VAC, 50/60hz, DC48V/2A |
| Total PoE Power Output | PoE: Max 25.5W for single port, 130W total |
| Unit Dimensions (W x D x H) | 12.9 x 9.6 x 2.1" / 328 x 245 x 53 mm |
| Unit Weight | 2.75 lbs. / 1.26 kg (excl. HDD) |
| Humidity | 10 ~ 90% RH |
| Package | Plain Box |
| Package Weight | 6.6lb / 2.99kg |
| Package Dimensions (W x D x H) | 15.51 x 13.2 x 5.4" / 394 x 335 x 137mm |

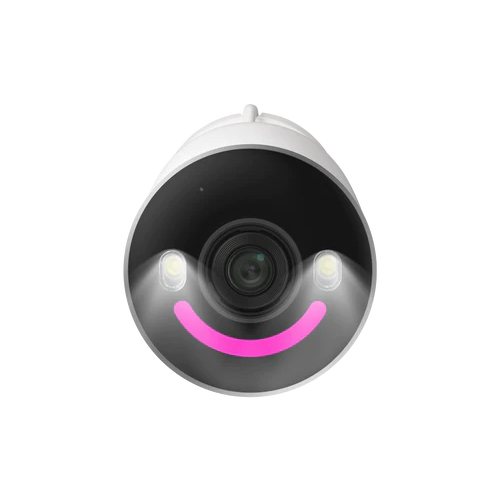

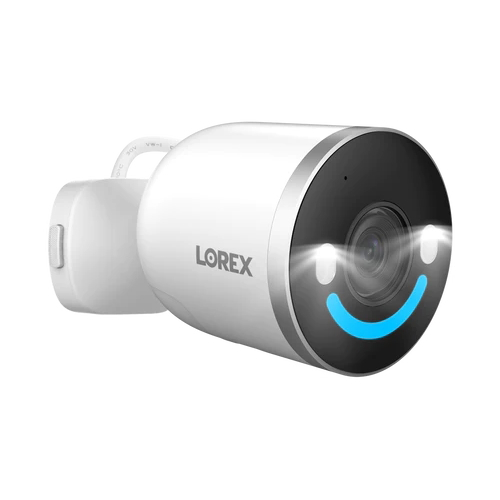

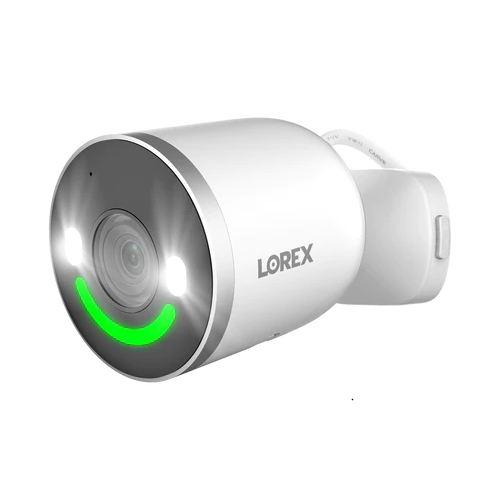

| W881AAD Series - 4K Smart Security Lighting W-Fi Camera |
| Image Sensor | 1/2.8" CMOS |
| Image Sensor | 8MP |
| Video Format | NTSC |
| Aperture | F1.6 |
| Lens/Lens Type | Fixed |
| Shutter Speed | 1/3 s to - 1/100,000s |
| Video Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| HDR | No |
| Frame Rate | 15fps |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D Temporal |
| Signal-Noise Ratio (SNR) | ≤ 56dB |
| Video Codec | H.265, H.264 |
| Field of View (FOV) | 140° |
| White LED | Yes |
| Infrared Wavelength | 855 nm |
| Night Vision Range | 32ft / 10m |
| Color Night Vision | Yes |
| Minimum Color Illumination | 0 Lux |
| Minimum B&W IR Illumination | 252.7 m Lux |
| WLAN Protocols | 802.11.b/g/n/ac/ax |
| Wi-Fi Frequency Bands | 2.4 GHz, 5.0 GHz |
| Microphone | Yes |
| Speaker | Yes |
| Siren | 110dB |
| Two Way Talk | Yes |
| Audio Codec | AAC |
| Includes | 32 GB MicroSD |
| Capacity | Up to 256 GB MicroSD |
| Max Power | 6.6W |
| Max Voltage | 12 VDC |
| Max Current | 0.55A |
| Remote Viewing | Lorex Home App |
| Camera Dimensions (WxDxH) | 3.44 x 3.07 x 3.07" / 87 x 78 x 78 mm |
| Camera Weight | 0.9 lb / 0.41 kg |
| Storage Temperature | -4°F to 131°F / -20°C to 55°C |
| Storage Humidity | ≤95% RH |
| Operating Temperature | 4°F to 131°F / -20°C to 55°C |
| Operating Humidity | ≤95% RH |
| Environmental Rating | IP65 (Indoor/Outdoor) |
| Package Type | Giftbox |
| Package Weight | 2.7lb / 1.2kg |
| Package Dimensions (W x D x H) | 11.2 x 7.5 x 4.4" / 285 x 190 x 111mm |
