Lorex, N4K3SD-168WB-2, 4K 16-Channel 3TB Wired NVR System with Smart Deterrence Cameras
N4K3SD-168WB-2 Includes Only:
- 8 x 4K IP Security Camera E893AB
- 8 x Mounting Kit
- 8 x Cat5e Ethernet Cable
- 8 x Quick Start Guide
- 1 x NVR N863A63B
- 1 x AC power adapter
- 1 x USB mouse
- 1 x Ethernet cable
- 1 x HDMI cable
- Quick start guides
Features with all optional accessories:

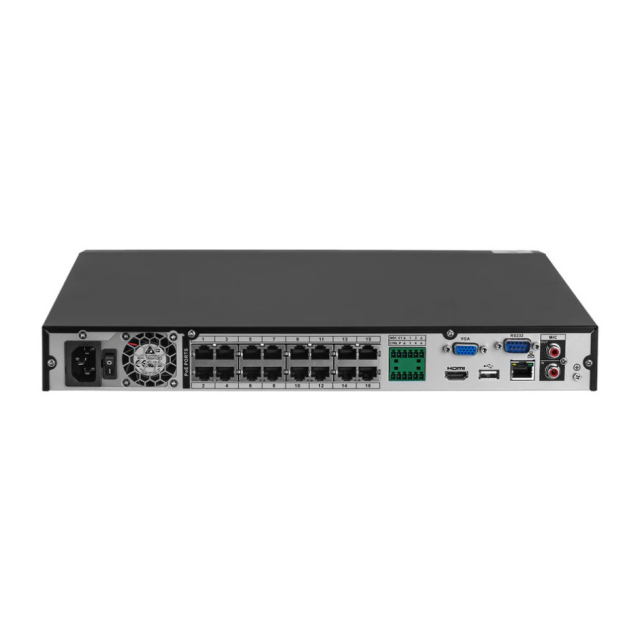

- NVR N863A63B:
- Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras
- View live footage in up to 15fps and digitally zoom in on distant objects for better clarity
- Reduce unnecessary alerts and false alarms with Smart Motion Detection
- Get push notifications when motion from a person or vehicle is detected
- A choice of four different siren sounds are available including a Police siren or a house alarm sound
- Use Smart Search to filter motion events for reviewing footage quickly and easily
- Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place.
- Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)
- View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
- 2 bay hard drive with up to 2 x 8TB of storage space with no hidden monthly fees
- Local built-in security-grade hard drive
- Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
- For improved security simply use the Lorex Home app to set a notification for when someone enters your business without a proper face mask
- The voice prompt is another benefit that can be used to alert and remind non-mask wearers: "Please wear your face mask"
- Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more
- Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion
- Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD

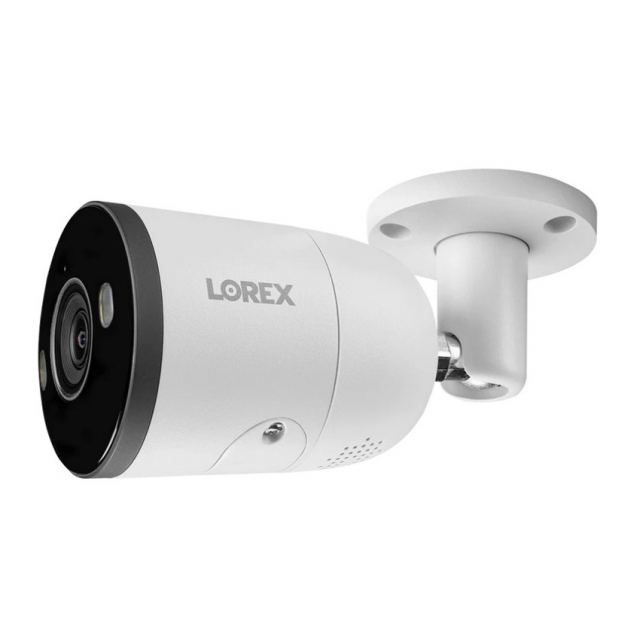

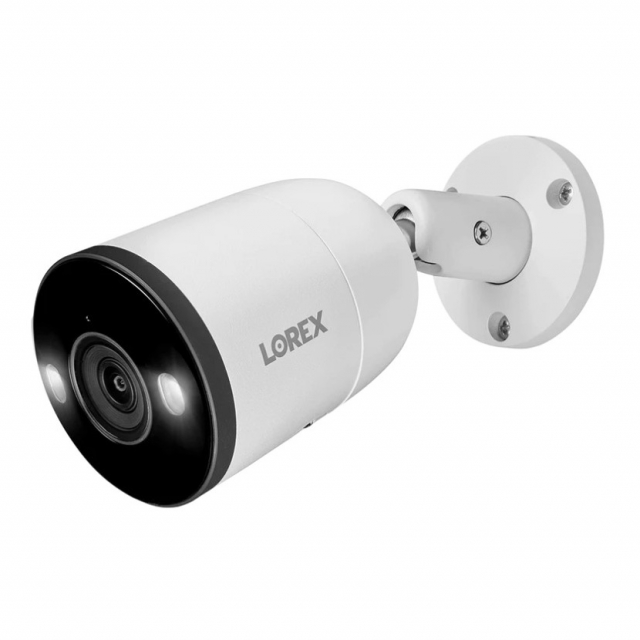

- Bullet Camera E893AB:
- 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time
- See more with a wide-angle 108° field of view
- Superior nighttime clarity with Color Night Vision
- Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness
- Warning light can be programmed to illuminate when a person or vehicle is detected
- Using 1 of 3 selectable, remote activated sirens to deter unwanted guests
- Built-in mic and speaker allows you to listen and speak to visitors with Two-way talk
- Enhanced Two-way Talk with Quick Response Messages lets you pre-record specific messages with your own voice
- Deter unwanted guests with the remote-activated siren
- Smart motion detection plus offers the option of either Face detection or Person and Vehicle Detection
- By activating Face Detection with Mask Detection Technology, get notifications when a person is not wearing mask. When automatic voice prompts enabled, the system will ask visitors to "Please wear a face mask" when masks are not detected
- Receive notifications when a person, vehicle or face is detected on your property from your Lorex Home app
- Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value.
This 16-channel Network Video Recorder system with 4K Smart Deterrence Security Cameras is built to prevent events before they happen. The NVR is also part of the Lorex Fusion collection, which means that you can add up to two Wi-Fi devices to open channels, as well as accessory alarm sensors. So whether you are looking to protect your home, small business or commercial property, this powerful security camera system will help you secure the things that matter most.
Experience the 4K difference
Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video, realistic color representation and superior digital zoom capabilities.
Smart Motion Detection Plus
Limit motion detection notifications with Smart Motion Detection Plus. This feature offers the option of either Face Detection or Person and Vehicle Detection.
Face and Mask Detection
Face Detection with Mask Detection Technology will only notify you of motion events when a face has been detected or when a person is not wearing a mask. This prevents motion notifications from people or vehicles simply passing by and not coming towards the camera5. You can also easily preview all the different faces that the camera has captured for quick reference. Review and filter only face detection events in Smart Search.
Person and Vehicle Detection
Smart Person and Vehicle Detection helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification whenever a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals. Recorded motion alerts can easily be reviewed by using the Smart Search function.
Take an active stance against uninvited guests
This camera comes with plenty of features that will help ward off uninvited guests. First, there is a motion-activated warning light that can be customized to only be triggered when a person or vehicle is detected. Second, you can use 1 of 3 selectable siren that you can control from your Lorex Home app. When the camera sensors detect motion, the system will send a notification directly to your phone, allowing you to remotely access the camera and set off a loud warning alert.
Listen-in Audio and Two-Way Talk
A built-in speaker and microphone allows for crystal-clear audio functionality. Listen-in audio recording will add a whole dimension to your overall security monitoring, as it can provide additional details (like a voice) should an incident occur. This camera also has enhanced two-way talk with Quick Response Messages that lets you pre-record specific messages with your own voice using the Lorex Home app.
Built for the outdoors
While this camera is suitable for both indoor and outdoor use, it has been especially designed to withstand the harsh impacts of nature. It has an IP67 rating, meaning it can tolerate extreme temperatures ranging from -22°F to 140°F (-30°C to 60°C). It also has a durable, all-metal housing for added protection.
Protect the things that matter with Safeguard
Lorex's Safeguard technology is perfect if you have very specific objects or areas that you need to to monitor. The feature allows you to set-up to three "Missing" areas and one "Left Behind" area. The Missing feature allows you to select important objects of value that you would want to be notified if they are removed from the area. Conversely, the Left Behind feature allows you to select an area to be notified if something is added.
See in color through the night
This camera features revolutionary Color Night Vision (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.
Long-range IR night vision
In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 150ft (46m) away and up to 98ft (30m) in complete darkness.
H.265 / HEVC encoding
This security camera is equipped with High-Efficiency Video Encoding (HEVC) or H.265 video compression. This encoding technology efficiently compresses file sizes. In fact, it can compress file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality. HEVC encoding will also save you plenty of bandwidth while watching live or recorded video remotely.
Remote viewing from your mobile with Lorex Home
The NVR is designed for use with innovative Lorex Home app. Using this app, you can quickly view your security system remotely and control camera features from your smartphone. The app will also send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.
PoE plug-and-play installation
This system will be up and running in no time thanks to Power-over-Ethernet (PoE) technology. All that is required to connect each of your security cameras to your NVR is a single Cat5e ethernet cable run. This cable provides both power and video transmission up to 300 feet / 91m.
Panic button
An easy-to-use panic button is located on the front of the recorder. This will activate all lights and sirens on your compatible Active Deterrence cameras.
Smart home compatibility
Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa and Google Assistant. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. You can also download the Lorex Home app on your Apple TV to view live video in single or multiple feeds, or playback recorded footage.
H.265 / HEVC encoding
This system is equipped with High-Efficiency Video Encoding (HEVC) or H.265 video compression. This encoding technology efficiently compresses file sizes. In fact, it can compress file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality. HEVC encoding will also save you plenty of bandwidth while watching live or recorded video remotely.
Reliable security grade hard drive with no hidden storage fees
Included in the NVR is a built-in security-grade hard drive that has been designed to meet the demands of 24/7 surveillance recording. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store all motion events that only you can access.
Two storage bays
This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 8TB, giving you the potential for a total of 16TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up if the recording hard drive fails.
