Bullet Camera E892AB |
Sensor | - Video Transmission Technology: IP
- Image Sensor: 8MP/4K 1/2.8" CMOS
- Video Format: NTSC
- Video Compression: H.265/H.264H (Main Stream & Sub Stream)
|
Optical | - Viewing Angle (Horizontal): 108°
- Lens/Lens type: 2.8mm F2.0 / Fixed
|
Video Output | - Resolution/Frame rate:
- 4K(8MP) at15fps
- 5MP at30fps
- 1080p at30fps
- 720p at30fps
- Effective Pixels: H:3840 x V:2160
- HDR: Yes
- Termination: RJ45
|
Audio | - Microphone/Speaker: Yes/Yes
- Siren: Yes
- 2-Way Talk: Yes
|
Night Vision | - IR Night Vision Range: 150ft (45m)/ 98ft (30m)
- Color Night Vision: Yes
|
Special Features | - Smart Motion Detection Plus: Yes - Person and Vehicle Detection
- Face Detection: Yes
- Active View: Yes
- Safeguard: Yes - object missing or left behind
- Active Deterrence: Yes - Warning Light + Siren + 2-Way Talk
|
Housing & Environmental | - Camera Housing Material: Aluminum Alloy
- Power Requirements: PoE (Power over Ethernet Class - 802.3af)/12V DC
- Power Consumption (max): 660mA / 9.5W
- Camera Dimensions (W x D x H): 2.9" x 7.2" x 2.9" (74mm x 184mm x 74mm)
- Camera Weight: 1.10lbs / 0.49kg
- Operating Temperature: -22°F ~ 140°F /-30°C ~ 60°C
- Humidity: < 95% RH
- Environmental Rating: IP67 (Indoor/Outdoor)
|
Package Type | Retail Box |
Package Weight | 3.1lb / 1.4kg |
Package Dimensions (W x D x H) | 15.0 x 5.3 x 4.9" / 380 x 134 x 125mm |
Package Cube | 0.014 cbf / 0.00039 cbm |
Junction Box | Compatible with: ACJNCD3B (not included) |

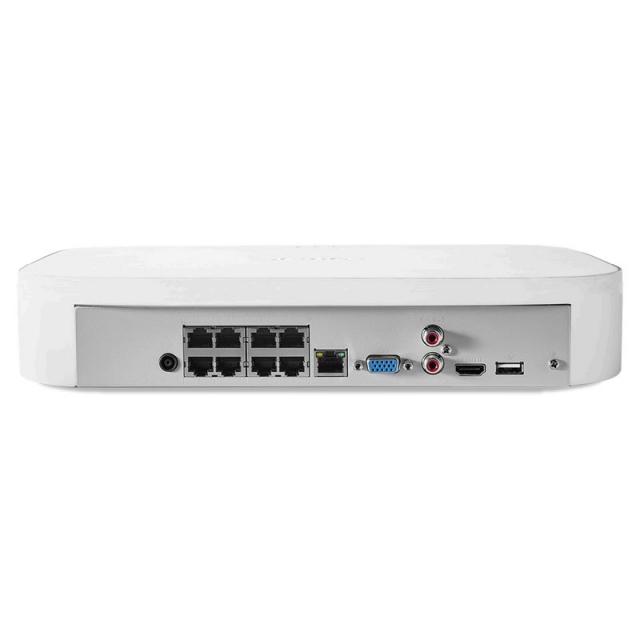

NVR N842A82 |
General | - Video Transmission Technology: IP
- Channels: 8 Channels
|
Inputs/Outputs | - Video Input: 8 x PoE
- Video Outputs: 1 x VGA/1 x HDMI
- Audio Input: 1 x RCA
- Audio Output: 1 x RCA
|
Display | - Display Output Resolution: Up to 4K UHD
- Live Display: 1,4,8
- Live Display Speed (Max): 240fps NTSC/200fps PAL
- OSD: On/Off
- System Navigation: USB Mouse
|
Recording | - Recording Resolution: 4K (8MP)/5MP/4MP/3MP / 1080p/720p
- Recording Frame Rate: 4K (8MP) at15fps/5MP at30fps/4 MP at30fps/1080p at30fps/720p at30fps
- Recording Schedule: Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Alarm, Day, Hour per channel
- Back-up File Format: DAV/ASF/AVI/MP4
- Video Compression: H.265/H.264
|
Playback | - Simultaneous Playback: Up to 4 channels, synchronized
- Playback Speed: Variable Max 8x
- Search: By Time/Date, All Motion Events or Smart Motion (Person/Vehicle6 ), Area Search
|
Storage | - Hard Drive Bays: 1 Bay
- Hard Drive Capacity: Up to 6TB (SATA)
- Backup Media: USB Flash Drive & USB HDD
|
Special Features | - Smart Motion Detection: Support for Person and Vehicle detection
- Wired/Wireless Fusion support: Yes
- Sensor Fusion support: Yes
- Face Detection Support: Yes
- Active Deterrence Support: Yes
- Active View Support: Yes
- Panic Button: Yes
- Smart Search: Yes
|
Smart Home | - Voice Control: Amazon Alexa™, Google Assistant™
- Streaming Options: Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display
|
Connectivity | - Mobile Viewing: Android, iOS
- Compatible APP: Lorex Home™
- PC/Mac Remote Viewing: Yes/Lorex Cloud™ client
- Email Notification: Text and Snapshot
- Network Interface: 10/100 Base-TX, RJ45
- Network Bit Rate: 80Mbps total, 48~8192kbps per camera
- USB interface: USB 2.0 x 2
|
Additional Specifications | - FW Upgrade: USB/Network
- Watchdog Function: Yes
- Power Consumption: Approx. 8.3W (HDD excl.)
- Supply Voltage: 100VAC-240VAC, 50/60hz, DC48V/2A
- Total PoE Power Output: PoE: Max 25.5W for single port, 80W total
- Unit Dimensions (W x D x H): 12.9 x 9.6 x 2.1" / 328 x 245 x 53 mm
- Unit Weight: 2.75 lbs. / 1.26 kg (excl. HDD)
- Operating Temperature: 14° ~ 131°F / -10° ~ 55°C
- Humidity: 10 ~ 90% RH
|
Smart Sensor Kit |
AY41TR Sensor Hub | - Color: White
- Power: Power adapter input: 100-240V AC, Power adapter output: 5V DC
- Connectivity: BLE5.0
- Lights: Status Indicator Light
- Installation Type: Tabletop or wall mount
- Setup Requirements: Lorex Home APP
- Compatibility: Lorex DVR's or NVR's using Lorex Home APP
- Operating Conditions: Indoor Use
|
AM41TK PIR Motion Sensor | - Color: White
- Power: Battery - CR2450, included
- Connectivity: BLE5.0
- Detection Range: 26ft Max.*
- Detection Angle: 110° Max.
- Installation Type: Tabletop, wall or ceiling
- Lights: Status Indicator Light
- Setup Requirements / Compatibility: Lorex Sensor Hub, Lorex Home Center
- Mounting: Adhesive, included
- Operating Conditions: Indoor Use
- Operating Temperature: 14°F ~ 113°F / -10°C ~ 45°C
- Operating Humidity: 0 ~ 95% RH
|
AK41TK Door / Window Sensors | - Color: White
- Power: Battery: CR1632, included
- Connectivity: BLE5.0
- Lights: Status Indicator Light
- Installation Type: Tabletop or wall mount
- Setup Requirements / Compatibility: Lorex Sensor Hub, Lorex Home Center
- Mounting: Adhesive, included
- Operating Conditions: Indoor Use
- Operating Temperature: 14°F ~ 113°F / -10°C ~ 45°C
- Operating Humidity: 0 ~ 95% RH
|
