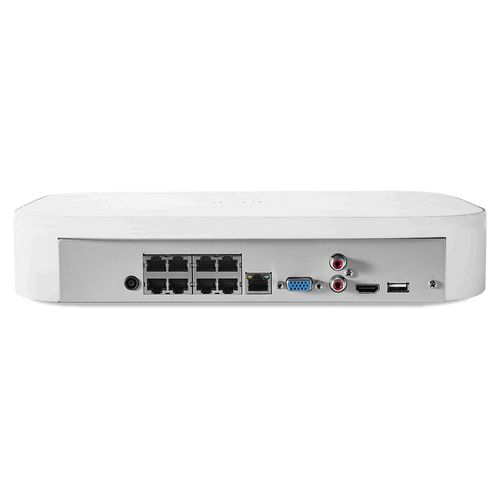

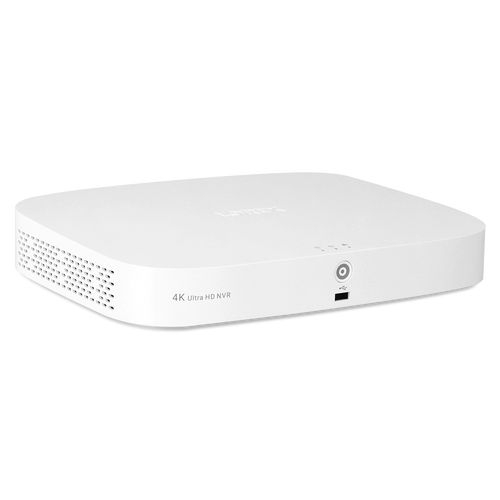

NVR N843A82 |
Video Transmission Technology | IP |
strong>Channels | 8 Channels |
Video Input | 8 x PoE |
Video Outputs | 1 x VGA/1 x HDMI |
Audio Input | 1 ch: RCA type |
Audio Output | 1 ch: RCA type |
Display Output Resolution | Up to 4K UHD, Auto Detect |
Live Display | 1,4,8 |
Live Display Speed (Max) | 240fps NTSC/200fps PAL |
OSD | On/Off |
System Navigation | USB Mouse |
Recording Resolution | 4K (8MP)/5MP/4MP/3MP/1080p/720p |
Recording Frame Rate | - 4K (8MP) at15fps
- 5MP at30fps
- 4MP at30fps
- 1080p at30fps
- 720p at30fps
|
Recording Schedule | Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Face Detection, Alarm, Day, Hour per channel |
Back-up File Format | DAV/ASF/AVI/MP4 |
Video Compression | H.265/H.264 |
Simultaneous Playback | Up to 4 channels, synchronized |
Playback Speed | Variable Max 8x |
Search | By Time/Date, All Motion Events or Smart Motion (Person/Vehicle5 ), Area Search |
Hard Drive Bays | 1 Bay |
Hard Drive Capacity | Up to 8TB (SATA) |
Backup Media | USB Flash Drive & USB HDD |
Storage Mirroring | Yes |
Special Features | - Smart Motion Detection Support: Yes for Person and Vehicle detection
- Wired/Wireless Fusion support: Yes
- Lorex Sensor Compatible: Yes
- Face Detection Support: Yes
- Mask Detection Support: Yes
- Lorex Safeguard™ (Missing Object and Object Left Behind): Yes
- Active Deterrence Support: Yes
- Active View Support: Yes
- Panic Button: Yes
- Smart Search: Yes
|
Voice Control | Amazon Alexa™, Google Assistant™ |
Streaming Options | Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™ |
Mobile Viewing | Android, iOS |
Compatible APP | Lorex Home™ |
PC/Mac Remote Viewing | Yes/Lorex Cloud™ client |
Email Notification | Text and Snapshot |
Network Interface | 10/100 Base-TX, RJ45 |
Network Bit Rate | 80Mbps total, 48~8192kbps per camera |
USB interface | USB 2.0 x 2 |
FW Upgrade | USB/Network |
Watchdog Function | Yes |
Power Consumption | Approx. 8.3W (HDD excl.) |
Supply Voltage | 100VAC-240VAC, 50/60hz, DC 53V/1.8A |
Total PoE Power Output | PoE: Max 25.5W for single port, 72W total |
Unit Dimensions (W x D x H) | 12.9 x 9.6 x 2.1" / 328 x 245 x 53 mm |
Unit Weight | 2.75 lbs. / 1.26 kg (excl. HDD) |
Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
Humidity | 10 ~ 90% RH |
Package | Plain Box |
Package Weight | 6.6lb / 2.99kg |
Package Dimensions (W x D x H) | 15.51 x 13.2 x 5.4" / 394 x 335 x 137mm |

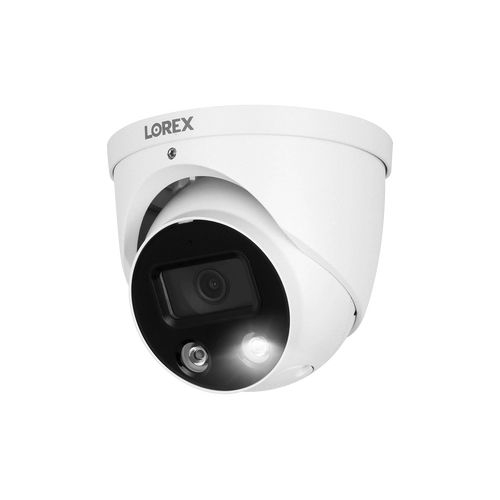

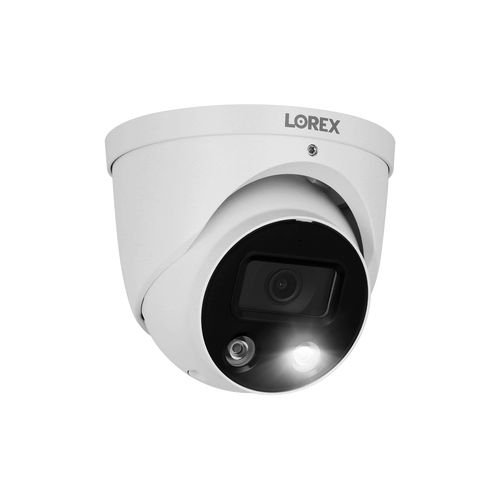

Dome Camera E893DD-E |
Image Sensor | 1/2.7" CMOS |
Sensor Resolution | 4 MP |
Lens Type | Fixed |
Focal Length | 2.8 mm |
Aperture | F2.0 |
Shutter Speed | 1/3 s to - 1/100,000s |
Video Resolution | 2560 x 1440 |
Aspect Ratio | 16:9 |
Frame Rate | 1440p HD at25fps |
HDR | No |
White Balance | Auto |
Gain Control | Auto |
Noise Reduction | 3D DNR |
Signal-Noise Ratio (SNR) | ≤ 53dB |
Video Codec | H.265, H.264 |
Horizontal FOV | 106° |
Diagonal FOV | 125° |
Vertical FOV | 56° |
White LED | No |
Infrared Wavelength | 850 nm |
Night Vision Range | 32ft / 10m |
Wi-Fi Frequency Band | 2.4 GHz |
Microphone | Yes |
Speaker | Yes |
2-Way Talk | Yes |
Audio Codec | AAC |
Storage | - Includes 16GB MicroSD
- Capacity Up to 256GB MicroSD, Class 10 or Higher
|
Max Power | 3.5 W |
Max Voltage | 5 VDC |
Max Current | 0.7 A |
Remote Viewing | Lorex Home App |
Camera Dimensions (W x D x H) | 2.7 x 2.7 x 4.3" / 68 x 68 x 109mm |
Weight | 0.53 lbs / 0.24 kg |
Storage Temperature | -10°C to 45°C / 14°F to 113°F |
Storage Humidity | ≤95% RH |
Operating Temperature | -10°C to 45°C / 14°F to 113°F |
Operating Humidity | ≤95% RH |
Package Type | Giftbox |
Package Weight | 0.82 lbs / 0.33 kg |
Package Dimensions (W x D x H) | 4.8 x 3.4 x 6.7" / 122 x 86 x 170mm |
Package Cube | 0.063cbf / 0.0018cbm |
Doorbell B451AJD-E |
Max Video Resolution | 2K (2560 x 1920) |
Aspect Ratio | 4:3 |
Video Modes | 2K, 1080p (default), D1 |
Video Features | HDR |
Max Lens Field of View | 164° diagonal |
Nightlight / Warning Light | Yes |
Quick Responses | Yes |
Night Vision | Night Vision, high powered Infrared LEDs (850nm) with IR Cut Filter |
Indoor/Outdoor | Outdoor, IP65 rated |
Digital Zoom | 8x |
Microphone | Microphone with noise cancellation |
Speaker/Siren | Yes |
Audio | Full Duplex 2-Way audio |
Network Connectivity | 2.4/5Ghz 802.11b/g/n/ac |
Operating Temperature | -4°F to 122°F / -20°C to 50°C |
Package | Retail Box |
Package Weight | 1.17lb / 0.53kg |
Package Dimensions (W x D x H) | 7.7 x 7.3 x 2" / 196 x 185 x 51mm |
Package Cube | 0.065 cbf / 0.0018cbm |
Smart Sensor Start Kit |
AY41TR Sensor Hub | - Color: White
- Power: Power adapter input: 100-240V AC, Power adapter output: 5V DC
- Connectivity: BLE5.0
- Lights: Status Indicator Light
- Installation Type: Tabletop or wall mount
- Setup Requirements: Lorex Home APP
- Compatibility: Lorex DVR's or NVR's using Lorex Home APP
- Operating Conditions: Indoor Use
|
AM41TK PIR Motion Sensor | - Color: White
- Power: Battery - CR2450, included
- Connectivity: BLE5.0
- Detection Range: 26ft Max.*
- Detection Angle: 110° Max.
- Installation Type: Tabletop, wall or ceiling
- Lights: Status Indicator Light
- Setup Requirements / Compatibility: Lorex Sensor Hub, Lorex Home Center
- Mounting: Adhesive, included
- Operating Conditions: Indoor Use
- Operating Temperature: 14°F ~ 113°F / -10°C ~ 45°C
- Operating Humidity: 0 ~ 95% RH
|
AK41TK Door / Window Sensors | - Color: White
- Power: Battery: CR1632, included
- Connectivity: BLE5.0
- Lights: Status Indicator Light
- Installation Type: Tabletop or wall mount
- Setup Requirements / Compatibility: Lorex Sensor Hub, Lorex Home Center
- Mounting: Adhesive, included
- Operating Conditions: Indoor Use
- Operating Temperature: 14°F ~ 113°F / -10°C ~ 45°C
- Operating Humidity: 0 ~ 95% RH
|
