Network Video Recorder NVR N843A82 |
Video Transmission Technology | IP |
Channels | 8 Channels |
Video Input | 8 x PoE |
Video Outputs | 1 x VGA/1 x HDMI |
Audio Input | 1 ch: RCA type |
Audio Output | 1 ch: RCA type |
Display Output Resolution | Up to 4K UHD, Auto Detect |
Live Display | 1,4,8 |
Live Display Speed (Max) | 240fps NTSC/200fps PAL |
OSD | On/Off |
System Navigation | USB Mouse |
Recording Resolution | 4K (8MP)/5MP/4MP/3MP/1080p/720p |
Recording Frame Rate | - 4K (8MP) at15fps
- 5MP at30fps
- 4MP at30fps
- 1080p at30fps
- 720p at30fps
|
Recording Schedule | Schedule recordings through Continuous, Motion, Smart Motion (Person and Vehicle), Face Detection, Alarm, Day, Hour per channel |
Back-up File Format | DAV/ASF/AVI/MP4 |
Video Compression | H.265/H.264 |
Simultaneous Playback | Up to 4 channels, synchronized |
Playback Speed | Variable Max 8x |
Search | By Time/Date, All Motion Events or Smart Motion (Person/Vehicle5 ), Area Search |
Hard Drive Bays | 1 Bay |
Hard Drive Capacity | Up to 8TB (SATA) |
Backup Media | USB Flash Drive & USB HDD |
Storage Mirroring | Yes |
Special Features | - Smart Motion Detection Support - Yes for Person and Vehicle detection
- Wired/Wireless Fusion support - Yes
- Lorex Sensor Compatible - Yes
- Face Detection Support - Yes
- Mask Detection Support - Yes
- Lorex Safeguard™ (Missing Object and Object Left Behind) - Yes
- Active Deterrence Support - Yes
- Active View Support - Yes
- Panic Button - Yes
- Smart Search - Yes
|
Voice Control | Amazon Alexa™, Google Assistant™ |
Streaming Options | Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™ |
Mobile Viewing | Android, iOS |
Compatible APP | Lorex Home™ |
PC/Mac Remote Viewing | Yes/Lorex Cloud™ client |
Email Notification | Text and Snapshot |
Network Interface | 10/100 Base-TX, RJ45 |
Network Bit Rate | 80Mbps total, 48~8192kbps per camera |
USB interface | USB 2.0 x 2 |
FW Upgrade | USB/Network |
Watchdog Function | Yes |
Power Consumption | Approx. 8.3W (HDD excl.) |
Supply Voltage | 100VAC-240VAC, 50/60hz, DC 53V/1.8A |
Total PoE Power Output | PoE: Max 25.5W for single port, 72W total |
Unit Dimensions (W x D x H) | 12.9 x 9.6 x 2.1" / 328 x 245 x 53 mm |
Unit Weight | 2.75 lbs. / 1.26 kg (excl. HDD) |
Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
Humidity | 10 ~ 90% RH |
Package | Plain Box |
Package Weight | 6.6lb / 2.99kg |
Package Dimensions (W x D x H) | 15.51 x 13.2 x 5.4" / 394 x 335 x 137mm |
Package Cube | 0.64cbf / 0.018cbm |

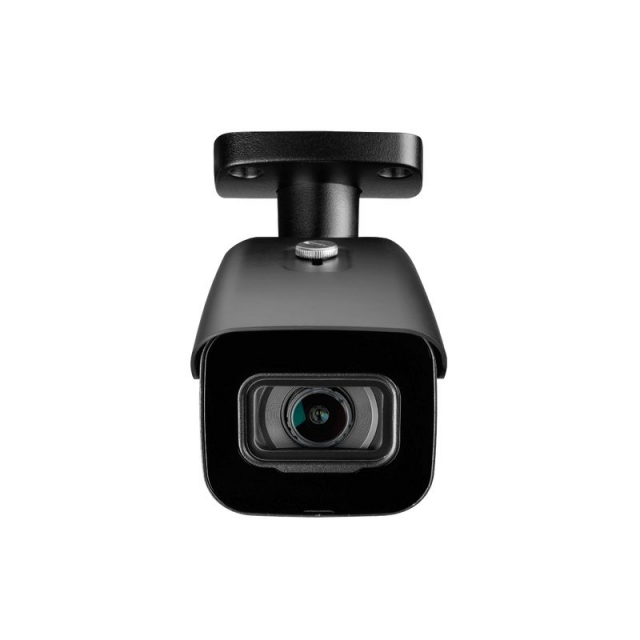

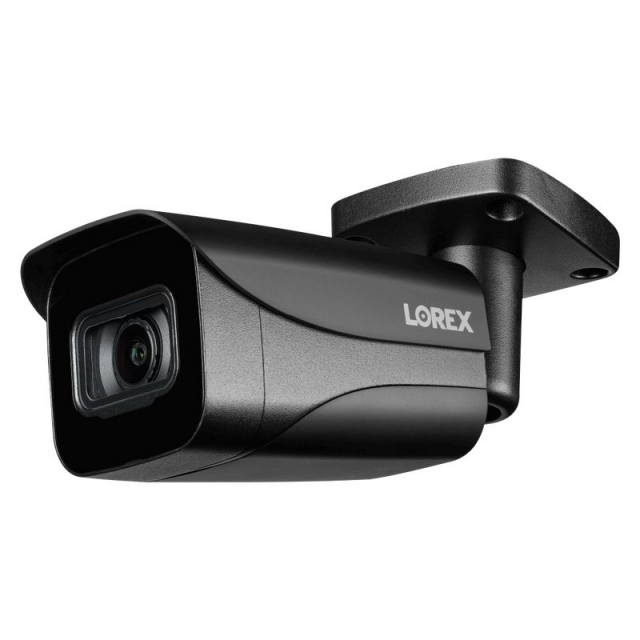

Bullet Camera E841CA |
Sensor | - Video Transmission Technology: IP
- Image Sensor: 8MP/4K 1/2.7" CMOS
- Video Format: NTSC
- Video Compression: H.265/H.264H (Main Stream & Sub Stream)
|
Optical | - Viewing Angle (Horizontal): 105°
- Lens/Lens type: 2.8mm F2.0 / Fixed
|
Video Output | - Resolution/Frame rate:
- 4K(8MP) at15fps
- 5MP at30fps
- 1080p at30fps
- 720p at30fps
- Effective Pixels: H:3840 x V:2160
- HDR: Yes
- Termination: RJ45
|
Audio | - Microphone/Speaker: No/No
- Siren: No/No
- 2-Way Talk: No
|
Night Vision | - Night Vision Range (Ambient/Total Darkness): 130ft (40m)/ 90ft (27m)
- Color Night Vision: Yes
|
General | - Body Material: Aluminum Alloy
- Power Requirements: PoE (Power over Ethernet Class -802.3af)/12V DC
- Power Consumption (max): 640mA / 7.68W
- Camera Dimensions: 2.8 x 7.1 x 2.8" / 70 x 180 x 70mm
- Camera Weight: 0.95lbs/0.44kg
- Operating Temperature: -22°F ~ 140°F / -30°C ~ 60°C
- Humidity: < 95% RH
- Environmental Rating: IP67 (Indoor/Outdoor)
|
Compatibility | Junction Boxes: ACJNCD4B (white) |
Package Type | Retail Box |
Package Weight | 3.3 lbs / 1.5 kg |
Package Dimensions (W x D x H) | 16 x 5.7 x 4.5" / 405 x 145 x 114mm |
Package Cube | 0.24cbf / 0.0067cbm |
