Buy Lorex AX8, 8-Port Ethernet Gigabit Ethernet PoE+ Unmanaged Switch

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Lorex, AX8, 8-Port Ethernet Gigabit Ethernet PoE+ Unmanaged Switch with 120W PoE Budget

AX8 Includes Only:

PoE Switch
Power Cord
4 x Rubber Feet
2 x Rack Mount Brackets
8 x Screws

Features:

IEEE 802.3at/af compliant
120W PoE budget
30W per PoE port
Plug and play installation
Up to 100m (328ft)
Works with Lorex IP cameras, VoIP phones, access points and repeaters

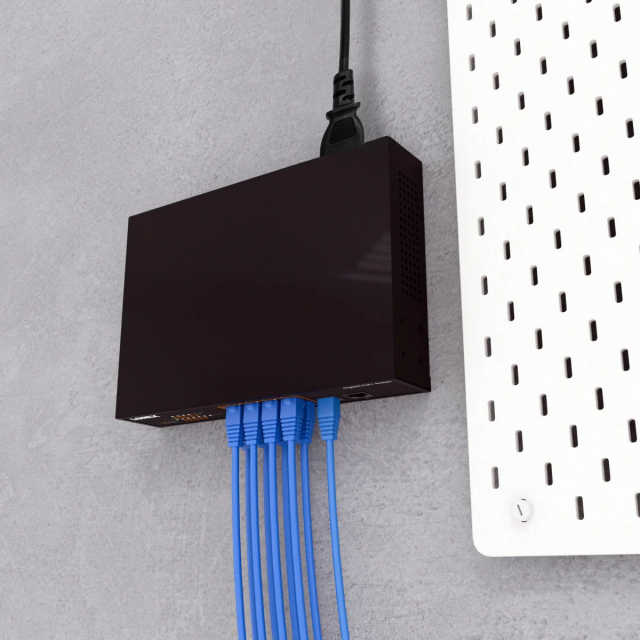

Quick and easy mounting - flush against a wall or on a server rack.

Switch Ports:

Switch Ports

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Interface

10 x 10/100/1000Mbps RJ45 ports

PoE Standard

IEEE802.3af/at

PoE Ports

1 to 8

Total PoE Power

120W

Power Supply

130W

Max PoE Port Output

30W

Indicators

PWR (Green), LNK/ACT (Green), PoE (Orange)

Network Media

10BASE-T: UTP Cable (≤ 100m)
100BASE-TX: UTP Cable (≤ 100m)
1000BASE-T: UTP Cable (≤ 100m)

MAC Address Table

2K, automatic study, automatic updates

Jumbo Frame

9K Bytes

Packet Buffer

2M bit

Transfer Mode

Store-and-forward

DimePacket Forwarding Rate

14.88Mbps

Fan

1 fan

Product Dimensions (L x W x H)

8.66 x 5.90 x 1.73" / 220 x 150 x 44 mm

Green Energy Saving

Support IEEE802.3az

Voltage Input

100 to 240 VAC, 50/60Hz

Operating Temperature

32 °F to 104 °F / 0 °C to 40 °C

Storage Temperature

-40 °F to 158 °F / -40 °C to 70 °C

Operating Humidity

10% to 90% non-condensing

Storage Humidity

5% to 90% non-condensing

Surge Protection

Common mode ± 4KV,
Differential mode ± 2KV

Certifications

FCC, IC, CE, UKCA

MTBF

> 50000 hours

Electrostatic Standard

Contact ± 6KV, Air ± 8KV

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Interface

10 x 10/100/1000Mbps RJ45 ports

PoE Standard

IEEE802.3af/at

PoE Ports

1 to 8

Total PoE Power

120W

Power Supply

130W

Max PoE Port Output

30W

Indicators

PWR (Green), LNK/ACT (Green), PoE (Orange)

Network Media

10BASE-T: UTP Cable (≤ 100m)
100BASE-TX: UTP Cable (≤ 100m)
1000BASE-T: UTP Cable (≤ 100m)

MAC Address Table

2K, automatic study, automatic updates

Jumbo Frame

9K Bytes

Packet Buffer

2M bit

Transfer Mode

Store-and-forward

DimePacket Forwarding Rate

14.88Mbps

Fan

1 fan

Product Dimensions (L x W x H)

8.66 x 5.90 x 1.73" / 220 x 150 x 44 mm

Green Energy Saving

Support IEEE802.3az

Voltage Input

100 to 240 VAC, 50/60Hz

Operating Temperature

32 °F to 104 °F / 0 °C to 40 °C

Storage Temperature

-40 °F to 158 °F / -40 °C to 70 °C

Operating Humidity

10% to 90% non-condensing

Storage Humidity

5% to 90% non-condensing

Surge Protection

Common mode ± 4KV,
Differential mode ± 2KV

Certifications

FCC, IC, CE, UKCA

MTBF

> 50000 hours

Electrostatic Standard

Contact ± 6KV, Air ± 8KV

Note

Note: Please read description carefully. Do not base your order on the picture presented.
