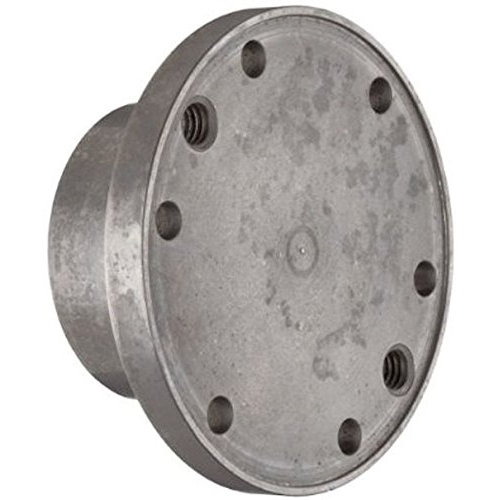

Lovejoy 69790499458 DI-6 Type 110-6 Hub with Keyway

Bore Size: 3/4"
  • Brand Lovejoy
  • Part # 69790499458
  • Model # DI-6
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Bore Size:
Bore Size: 3/4"

Features:

  • Designed to meet the API 610 Standard
  • Unitized disc pack
  • Infinite life if properly aligned
  • Torsionally rigid without any back lash
  • No need for lubrication or maintenance
  • No wearing parts and high resistance to harsh environmental conditions


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Hub StyleStandard
TypeDisc Coupling Hubs
Hub MaterialAISI 1045
StyleBored
ColorMetallic
Coupling SeriesDI-6
Coupling TypeDisc
Weight4.79 lb
Weight (Complete Coupling w/ Max. Bores)12.00 lb
Bore Size3/4 in
Size110-6
Set Screw Style Coupling Size (Dimension T)1/4-20
Keyway Size (W x D)3/16 x 3/32 in
Length thru Bore1.97 in
50.04 mm
Overall Length8.19 in
208 mm
Max. Bore (Dimensions ID1/ID2)2.06 in
52 mm
Dimension FD4.53 in
115 mm
Dimension HD2.87 in
73 mm
Dimension S2.410 in
61.00 mm
Distance between Shaft Ends (Dimension BSE)4.25 in
108 mm
Cubic inches40.42617 in³
Nominal Torque5100 in·lb
Max. Torque10200 in·lb
Max. Speed (Unbalanced)7200 rpm
Max. Speed (Balanced)18000 rpm
Axial Misalignment ( Ka)0.083 in
Max. Angular Misalignment (per single disc pack)1.50 º
Torsional Stiffness x 10^6 (of one disc pack)3.4 in·lb/rad
Rated Power at 100 rpm8 hp
6 kW
Product Details
Hub StyleStandard
TypeDisc Coupling Hubs
Hub MaterialAISI 1045
StyleBored
ColorMetallic
Coupling SeriesDI-6
Coupling TypeDisc
Weight4.79 lb
Weight (Complete Coupling w/ Max. Bores)12.00 lb
Bore Size3/4 in
Size110-6
Set Screw Style Coupling Size (Dimension T)1/4-20
Keyway Size (W x D)3/16 x 3/32 in
Length thru Bore1.97 in
50.04 mm
Overall Length8.19 in
208 mm
Max. Bore (Dimensions ID1/ID2)2.06 in
52 mm
Dimension FD4.53 in
115 mm
Dimension HD2.87 in
73 mm
Dimension S2.410 in
61.00 mm
Distance between Shaft Ends (Dimension BSE)4.25 in
108 mm
Cubic inches40.42617 in³
Nominal Torque5100 in·lb
Max. Torque10200 in·lb
Max. Speed (Unbalanced)7200 rpm
Max. Speed (Balanced)18000 rpm
Axial Misalignment ( Ka)0.083 in
Max. Angular Misalignment (per single disc pack)1.50 º
Torsional Stiffness x 10^6 (of one disc pack)3.4 in·lb/rad
Rated Power at 100 rpm8 hp
6 kW
Note

Note: Please read description carefully. Do not base your order on the picture presented.
