Lovejoy 69790498993 DI-6 Type 158-6 Complete Coupling

Bore Size: 3.375" and 10B
  • Brand Lovejoy
  • Part # 69790498993
  • Model # DI-6
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Bore Size:
Bore Size: 3.375" and 10B

Features

  • Designed to meet the API 610 Standard
  • Unitized disc pack
  • Infinite life if properly aligned
  • Torsionally rigid without any back lash
  • No need for lubrication or maintenance
  • No wearing parts and high resistance to harsh environmental conditions


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Hub StyleStandard
TypeDisc Coupling
MaterialSteel
StyleBored
Weight50 lb
ColorMetallic
Coupling SeriesDI-6
Coupling TypeDisc
Size158-6
Bore Size3.375 & 10B in
Keyway 1 (W x D)7/8 x 7/16 in
Keyway 2 (W x D)10B 2" in
Length thru Bore2.76 in
70.1 mm

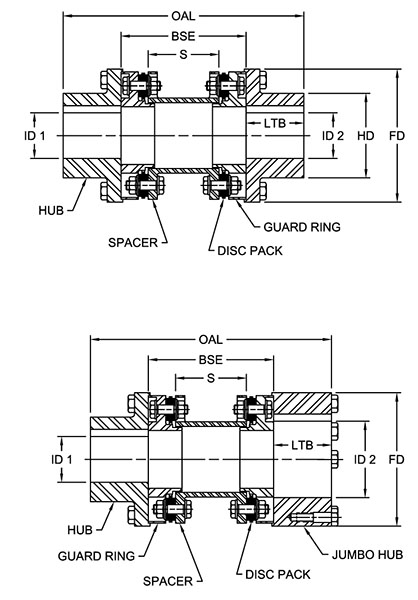

Dimension FD6.5 in
165 mm
Overall Length11.02 in
280 mm
Max. Bore (Dimensions ID1/ID2)3.13 in
80 mm
Dimension HD4.41 in
112 mm
Distance between Shaft Ends (Dimension BSE)5.5 in
139.7 mm
Cubic inches465.59500 in³
Temperature-40 to 450 ºF
Nominal Torque17700 in·lb
Max. Torque35400 in·lb
Max. Speed (Unbalanced)12300 rpm
Max. Speed (Balanced)12300 rpm
Max. Angular Displacement ( Ka), n=1500 [1/min]1.5 º
Axial Misalignment ( Ka)0.122 in
3.1 mm
Torsional Stiffness x 1065.8 in·lb/rad
Rated Power at 100 rpm28.2 hp
21 kW
Rated HP at 875 rpm (Standard Motor)28.2 hp
Rated HP at 1,150 rpm (Standard Motor)28.2 hp
Rated HP at 1,750 rpm (Standard Motor)28.2 hp
Rated HP at 3,500 rpm (Standard Motor)28.2 hp
Product Details
Hub StyleStandard
TypeDisc Coupling
MaterialSteel
StyleBored
Weight50 lb
ColorMetallic
Coupling SeriesDI-6
Coupling TypeDisc
Size158-6
Bore Size3.375 & 10B in
Keyway 1 (W x D)7/8 x 7/16 in
Keyway 2 (W x D)10B 2" in
Length thru Bore2.76 in
70.1 mm
Dimension FD6.5 in
165 mm
Overall Length11.02 in
280 mm
Max. Bore (Dimensions ID1/ID2)3.13 in
80 mm
Dimension HD4.41 in
112 mm
Distance between Shaft Ends (Dimension BSE)5.5 in
139.7 mm
Cubic inches465.59500 in³
Temperature-40 to 450 ºF
Nominal Torque17700 in·lb
Max. Torque35400 in·lb
Max. Speed (Unbalanced)12300 rpm
Max. Speed (Balanced)12300 rpm
Max. Angular Displacement ( Ka), n=1500 [1/min]1.5 º
Axial Misalignment ( Ka)0.122 in
3.1 mm
Torsional Stiffness x 1065.8 in·lb/rad
Rated Power at 100 rpm28.2 hp
21 kW
Rated HP at 875 rpm (Standard Motor)28.2 hp
Rated HP at 1,150 rpm (Standard Motor)28.2 hp
Rated HP at 1,750 rpm (Standard Motor)28.2 hp
Rated HP at 3,500 rpm (Standard Motor)28.2 hp
Note

Note: Please read description carefully. Do not base your order on the picture presented.
