Buy Lovejoy 69790498071, SLD 1500 Series Internal Shaft Locking Device

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Features:

Versus Traditional Keyed Connections:

Versus Traditional Interference Fits:

Easier and quicker to install
Higher contact pressures can transmit greater torques
Easy and quick to remove without damaging the shaft or hub - even after years of service

Design Benefits:

Eliminate cost of machining keyways or splines
Reduce the shaft stress by removing keyways or splines
Eliminating keyways often allows the use of a smaller diameter shaft
Can place anywhere on shaft and allows for easy angular timing
Easy removal without damaging the shaft or hub means easier maintenance for your customer

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Coupling Size	SLD 1500
Type	Internal
Collar Material	Silver / Metallic
Weight	18.74 lb
Screw Type	Socket Head Cap Screw
Screw Material	Steel
Style	Self Releasing
Application	Internal Shaft Locking Device
# of Locking Screws	30
Shaft Size	200 x 260 mm

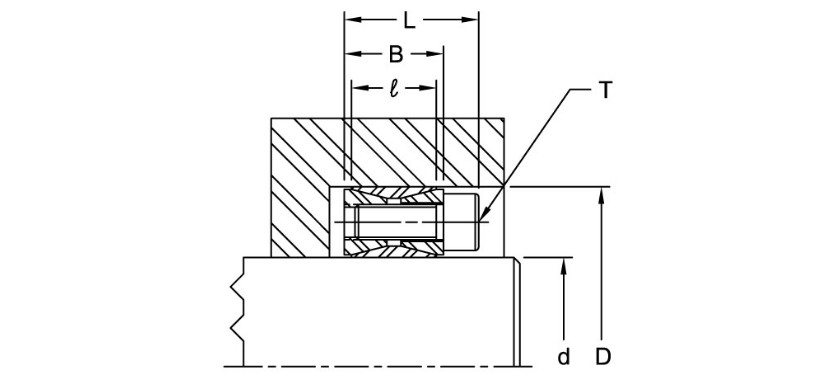

Hub Outside Diameter (Dimension d)	7.874" (200.00 mm)
Tolerance of Shaft (T₁)	+0 -0.0045"
Shaft Locking Device Outside Diameter (Dimension D)	10.236" (260.00 mm)
Tolerance of Hub Bore (T₂)	+0 -0.0045"
Thrust Rings Width at Relaxed State (Dimension B)	2.047" (52.00 mm)
Locking Screw Size (Dimension T)	M14
Contact Length (Dimension l)	1.811" (46.00 mm)
Total Width at Relaxed State (Dimension L)	2.598" (65.99 mm)
Cubic inches	272.20726 in3 (6914.06436 mm3)
Max. Transmissible Axial Force	131064.00 lbf
Max. Transmissible Torque	43000.00 ft-lb
Screw Tightening Torque	148.00 ft-lb
Pressure on The Hub	18855.00 psi
Pressure on The Shaft	24366.00 psi

Coupling Size	SLD 1500
Type	Internal
Collar Material	Silver / Metallic
Weight	18.74 lb
Screw Type	Socket Head Cap Screw
Screw Material	Steel
Style	Self Releasing
Application	Internal Shaft Locking Device
# of Locking Screws	30
Shaft Size	200 x 260 mm
Hub Outside Diameter (Dimension d)	7.874" (200.00 mm)
Tolerance of Shaft (T₁)	+0 -0.0045"
Shaft Locking Device Outside Diameter (Dimension D)	10.236" (260.00 mm)
Tolerance of Hub Bore (T₂)	+0 -0.0045"
Thrust Rings Width at Relaxed State (Dimension B)	2.047" (52.00 mm)
Locking Screw Size (Dimension T)	M14
Contact Length (Dimension l)	1.811" (46.00 mm)
Total Width at Relaxed State (Dimension L)	2.598" (65.99 mm)
Cubic inches	272.20726 in3 (6914.06436 mm3)
Max. Transmissible Axial Force	131064.00 lbf
Max. Transmissible Torque	43000.00 ft-lb
Screw Tightening Torque	148.00 ft-lb
Pressure on The Hub	18855.00 psi
Pressure on The Shaft	24366.00 psi

Note: Please read description carefully. Do not base your order on the picture presented.
