Buy Lovejoy 69790498026, SLD 900 Series External Shaft Locking Device

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Shaft Size:: Shaft Size: 165.00 mm.

Features:

Self-centering
Exceptional concentricity
Suitable / recommended for hollow shafts
Axial hub position fixed during clamping

Versus Traditional Keyed Connections:

No Backlash due to fit tolerances
No impact effect from reversing loads
Ability to adjust axial position and angular timing
No fretting corrosion due to movement at the fit interface

Versus Traditional Interference Fits:

Easier and quicker to install
Higher contact pressures can transmit greater torques
Easy and quick to remove without damaging the shaft or hub - even after years of service

Design Benefits:

Eliminate cost of machining keyways or splines
Reduce the shaft stress by removing keyways or splines
Eliminating keyways often allows the use of a smaller diameter shaft
Can place anywhere on shaft, and allows for easy angular timing
Easy removal without damaging the shaft or hub means easier maintenance for your customer

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Coupling Size

SLD 900

Type

External

Collar Material

Silver / Metallic

Weight

48.50 lb

# of Locking Screws

Locking Screws Size

M16

Screw Type

Hex Head Bolt

Screw Material

Steel

Style

Self Centering

Application

External Shaft Locking Device

Hub Outside Diameter (Dimension d)

165.00 mm. / 6.496"

Tolerance of Hub Outside Diameter (T₃)

+0 - 0.0025"

Shaft Size

165.00 mm.

Shaft Locking Device Outside Diameter (Dimension D)

290.00 mm. / 11.417"

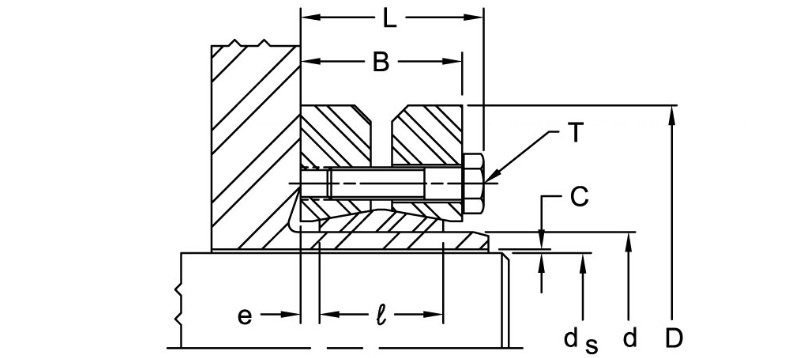

Thrust Rings Width at Relaxed State (Dimension B)

68.00 mm. / 2.677"

Contact Length (Dimension l)

56.00 mm. / 2.205"

Locking Screw Size (Dimension T)

M16

Shaft Diameter (Dimension d_s)

4.528"

Gap Width at Relaxed State (Dimension e)

0.236"

Max. Diametrical Clearance (Dimension C)

0.003"

Total Thrust Rings Width at Relaxed State (Dimension L)

3.071" / 78.00 mm.

Disc Outside Diameter (Dimension D)

289.99 mm. / 11.417"

Cubic inches

400.29837 in3
10167.57852 mm3

Max. Transmissible Torque (at low end of shaft diameter range)

26552.00 ft-lb

Max. Transmissible Torque (min to max shaft diameter)

26552 to 32453 ft-lb

Screw Tightening Torque

184.00 ft-lb

Product Details

Coupling Size

SLD 900

Type

External

Collar Material

Silver / Metallic

Weight

48.50 lb

# of Locking Screws

Locking Screws Size

M16

Screw Type

Hex Head Bolt

Screw Material

Steel

Style

Self Centering

Application

External Shaft Locking Device

Hub Outside Diameter (Dimension d)

165.00 mm. / 6.496"

Tolerance of Hub Outside Diameter (T₃)

+0 - 0.0025"

Shaft Size

165.00 mm.

Shaft Locking Device Outside Diameter (Dimension D)

290.00 mm. / 11.417"

Thrust Rings Width at Relaxed State (Dimension B)

68.00 mm. / 2.677"

Contact Length (Dimension l)

56.00 mm. / 2.205"

Locking Screw Size (Dimension T)

M16

Shaft Diameter (Dimension d_s)

4.528"

Gap Width at Relaxed State (Dimension e)

0.236"

Max. Diametrical Clearance (Dimension C)

0.003"

Total Thrust Rings Width at Relaxed State (Dimension L)

3.071" / 78.00 mm.

Disc Outside Diameter (Dimension D)

289.99 mm. / 11.417"

Cubic inches

400.29837 in3
10167.57852 mm3

Max. Transmissible Torque (at low end of shaft diameter range)

26552.00 ft-lb

Max. Transmissible Torque (min to max shaft diameter)

26552 to 32453 ft-lb

Screw Tightening Torque

184.00 ft-lb

Note

Note: Please read description carefully. Do not base your order on the picture presented.
