Options and Related Products

Lovejoy, 69790495599 110-6 Disc Pack Kits - Overload

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Coupling Size	110-6
Hub Style	Standard
Type	Disc Pack Kits
Material	Steel/Stainless Steel

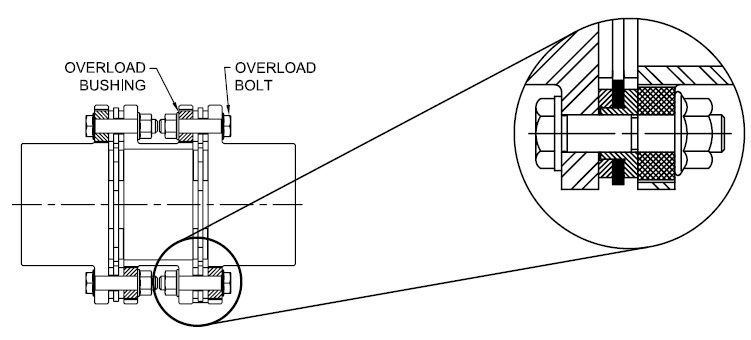

Application	Disc Pack with Overload Bushing
Number of Pieces	19
Weight	0.85 lb
Coupling Type	Disc
Width	12.000 in
Height	9.000 in
Depth	1.00 in
Cubic inches	108.00000 in³
Nominal Torque	5100 in·lb 575 N·m
Max. Torque	10200 in·lb 1150 N·m
Axial Misalignment (+-D Ka) for couplings with TWO disc packs	0.083 in 2.1 mm
Max. Angular Misalignment (per single disc pack)	1.50 º
Torsional Stiffness x 10^6 (of one disc pack)	3.4 in·lb/rad 0.40 Nm/rad
Rated Power at 100 rpm	8 hp 6 kW

Coupling Size	110-6
Hub Style	Standard
Type	Disc Pack Kits
Material	Steel/Stainless Steel
Application	Disc Pack with Overload Bushing
Number of Pieces	19
Weight	0.85 lb
Coupling Type	Disc
Width	12.000 in
Height	9.000 in
Depth	1.00 in
Cubic inches	108.00000 in³
Nominal Torque	5100 in·lb 575 N·m
Max. Torque	10200 in·lb 1150 N·m
Axial Misalignment (+-D Ka) for couplings with TWO disc packs	0.083 in 2.1 mm
Max. Angular Misalignment (per single disc pack)	1.50 º
Torsional Stiffness x 10^6 (of one disc pack)	3.4 in·lb/rad 0.40 Nm/rad
Rated Power at 100 rpm	8 hp 6 kW

Note: Please read description carefully. Do not base your order on the picture presented.
