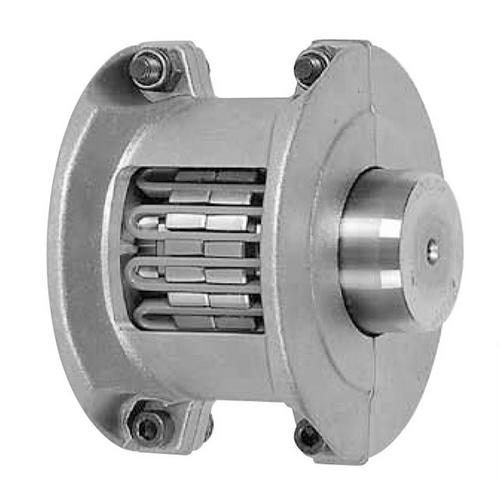

Lovejoy, 69790491272, 1100 Grid Coupling Hub with Keyway and Puller Hole

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type	Grid Coupling
Hub Material	1045 Steel
Style	Bored
Color	Gray/Metallic
Bore Type	Finished Bore and Keyway
Weight	35.76 lb
Lovejoy Grid Coupling Size	1100
Set Screw Style Coupling Size (Dimension T)	No Setscrew
Keyway Size (W x D)	5/8 x 5/16 in
Height	5.590 in
Length thru Bore	0.220 in
Width	5.590 in
Length thru Bore	4.750 in (120.65 mm)
Dimension HD	5.590 in (142.00 mm)
Min. Bore (Dimensions ID1/ID2)	1.625 in (41.28 mm)
Max. Bore (Dimensions ID1/ID2)	4.000 in (101.60 mm)
Cubic inches	148.42818 in3

Type	Grid Coupling
Hub Material	1045 Steel
Style	Bored
Color	Gray/Metallic
Bore Type	Finished Bore and Keyway
Weight	35.76 lb
Lovejoy Grid Coupling Size	1100
Set Screw Style Coupling Size (Dimension T)	No Setscrew
Keyway Size (W x D)	5/8 x 5/16 in
Height	5.590 in
Length thru Bore	0.220 in
Width	5.590 in
Length thru Bore	4.750 in (120.65 mm)
Dimension HD	5.590 in (142.00 mm)
Min. Bore (Dimensions ID1/ID2)	1.625 in (41.28 mm)
Max. Bore (Dimensions ID1/ID2)	4.000 in (101.60 mm)
Cubic inches	148.42818 in3

Note: Please read description carefully. Do not base your order on the picture presented.
