Lovejoy 69790414566 FA Type (Alloy Steel) Flex Hub with Keyway

Bore Size: 8"
  • Brand Lovejoy
  • Part # 69790414566
  • Model # FA Type
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Bore Size:
Bore Size: 8"

Lovejoy, 69790414566, FA Type (Alloy Steel) Flex Hub with Keyway (Inch Bore)

Features:

  • Molded seals maintain proper lubricant retention during misalignment conditions
  • AISI 4140 Alloy Steel Construction
  • Patented Vari-Crown tooth form for long life
  • Standard 20° pressure angle
  • Heat treated bolts for greater strength
  • Corrosion resistant bolts and nuts for ease of maintenance
  • Provides parallel, angular misalignment and end float
  • Flex Half coupling interchangeable with industry standards

For use with FA (Alloy Steel) Flex-Flex couplings. The FA Type coupling provides a higher nominal torque value than standard F Type couplings and consists of two FA Type flex hubs, two FA Type sleeves (with seals) and one accessory kit. Exposed bolts (E) are the standard design for this coupling. The FA Type has a max angular misalignment of 3.0 degrees (1.5 degrees per gear mesh).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Hub StyleExposed Bolt
TypeGear Coupling Hub
Hub MaterialAlloy Steel
StyleBored
ColorMetallic
Coupling TypeGear
Weight118.09 lb
Complete Coupling Weight650.00 lb
Bore Size8"
Size6
Set Screw Style Coupling Size (Dimension T)No Setscrew
Keyway Size (W x D)2" x 3/4"

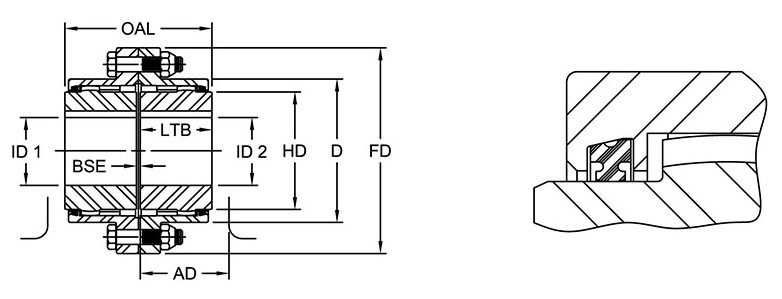

Length Through Bore (LTB)7.41" (188.21 mm)
Width11.500"
Overall Length15.130" (384.30 mm)
Max. Bore (Dimensions ID1 / ID2)8.250" (225 mm)
Dimension AD17.000" (431.80 mm)
Dimension D14.000" (355.60 mm)
Dimension FD18.00" (457.20 mm)
Dimension HD11.50" (292.10 mm)
Distance between Shaft Ends (Dimension BSE)0.310" (7.87 mm)
Cubic inches979.97250 in3
Nominal Torque877100 in-lb (99110 N-m)
Max. Speed (Unbalanced)2100 rpm
Max. Speed (Balanced)3150 rpm
Parallel Misalignment0.120"
Max. Angular Misalignment1.50° per Gear Mesh
Product Details
Hub StyleExposed Bolt
TypeGear Coupling Hub
Hub MaterialAlloy Steel
StyleBored
ColorMetallic
Coupling TypeGear
Weight118.09 lb
Complete Coupling Weight650.00 lb
Bore Size8"
Size6
Set Screw Style Coupling Size (Dimension T)No Setscrew
Keyway Size (W x D)2" x 3/4"
Length Through Bore (LTB)7.41" (188.21 mm)
Width11.500"
Overall Length15.130" (384.30 mm)
Max. Bore (Dimensions ID1 / ID2)8.250" (225 mm)
Dimension AD17.000" (431.80 mm)
Dimension D14.000" (355.60 mm)
Dimension FD18.00" (457.20 mm)
Dimension HD11.50" (292.10 mm)
Distance between Shaft Ends (Dimension BSE)0.310" (7.87 mm)
Cubic inches979.97250 in3
Nominal Torque877100 in-lb (99110 N-m)
Max. Speed (Unbalanced)2100 rpm
Max. Speed (Balanced)3150 rpm
Parallel Misalignment0.120"
Max. Angular Misalignment1.50° per Gear Mesh
Note

Note: Please read description carefully. Do not base your order on the picture presented.
