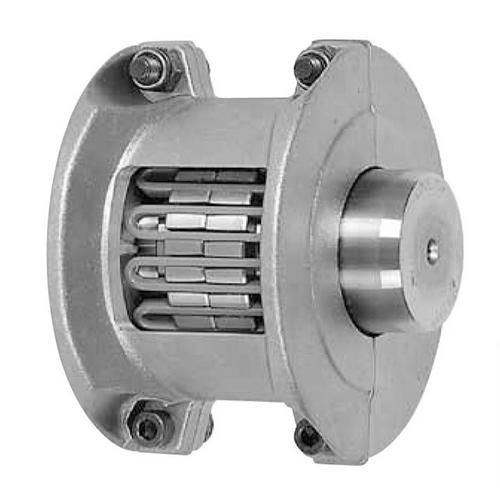

Lovejoy, 69790406545, 1080 Shaft Coupling Hub with Keyway, 2-3/8"

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type	Grid Coupling
Hub Material	1045 Steel
Style	Bored
Color	Gray/Metallic
Bore Type	Finished Bore and Keyway
Weight	16.05 lb
Bore Size	2-3/8 in
Lovejoy Grid Coupling Size	1080
Set Screw Style Coupling Size (Dimension T)	1/4-20
Keyway Size (W x D)	5/8 x 5/16 in
Height	7.000 in
Length thru Bore	0.276 in
Width	7.00 in
Length thru Bore	3.500 in (88.90 mm)
Min. Bore (Dimensions ID1/ID2)	Solid
Max. Bore (Dimensions ID1/ID2)	3.500 in (88.90 mm)
Dimension FD	7.00 in (177.80 mm)
Dimension HD	4.810 in (122.17 mm)
Cubic inches	171.49966 in3

Type	Grid Coupling
Hub Material	1045 Steel
Style	Bored
Color	Gray/Metallic
Bore Type	Finished Bore and Keyway
Weight	16.05 lb
Bore Size	2-3/8 in
Lovejoy Grid Coupling Size	1080
Set Screw Style Coupling Size (Dimension T)	1/4-20
Keyway Size (W x D)	5/8 x 5/16 in
Height	7.000 in
Length thru Bore	0.276 in
Width	7.00 in
Length thru Bore	3.500 in (88.90 mm)
Min. Bore (Dimensions ID1/ID2)	Solid
Max. Bore (Dimensions ID1/ID2)	3.500 in (88.90 mm)
Dimension FD	7.00 in (177.80 mm)
Dimension HD	4.810 in (122.17 mm)
Cubic inches	171.49966 in3

Note: Please read description carefully. Do not base your order on the picture presented.
