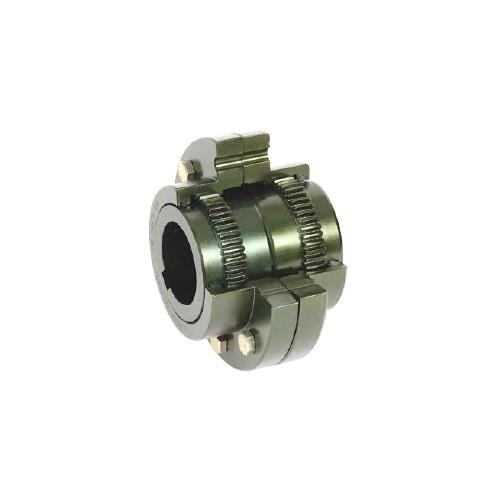

Lovejoy 69790403871 FA Type Alloy Steel Flex Hub - Rough Stock Bore

Size: 6 in
  • Brand Lovejoy
  • Part # 69790403871
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Size:
Size: 6 in

The FA Type coupling provides a higher nominal torque value than standard F Type couplings, and consists of two FA Type flex hubs, two FA Type sleeves (with seals) and one accessory kit. Exposed bolts (E) are the standard design for this coupling, though shrouded bolt (S) The FA Type has a max angular misalignment of 3.0 degrees (1.5 degrees per gear mesh).

Features:

  • Molded seals maintain proper lubricant retention during misalignment conditions
  • AISI 4140 Alloy Steel Construction
  • Patented Vari-Crown® tooth form for long life
  • Standard 20° pressure angle
  • Heat treated bolts for greater strength
  • Corrosion resistant bolts and nuts for ease of maintenance
  • Provides parallel, angular misalignment and end float
  • Flex Half coupling interchangeable with industry standards
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
DescriptionFA 6 HUB RSB
Hub StyleExposed Bolt
TypeGear Coupling Hubs
Hub MaterialAlloy Steel
StyleUnbored
ColorMetallic
Bore TypeRough Stock Bore
Coupling TypeGear
Weight203.00 lb
Complete Coupling Weight650.00 lb
Size6
Set Screw Style Coupling Size (Dimension T)No Setscrew
Height11.500 in
Width11.500 in
Length Through Bore (LTB)7.41 in 188.21 mm
Overal Coupling Length (OAL)15.130 in 384.30 mm
Max. Bore (Dimensions ID1/ID2)8.250 in 225 mm
Dimension AD17.000 in 431.80 mm
Dimension D14.000 in 355.60 mm
Dimension HD11.50 in 292.10 mm
Distance between Shaft Ends (Dimension BSE)0.310 in 7.87 mm
Cubic in ches979.97250 in ^3
Nominal Torque877100 in ·lb 99110 N·m
Max. Speed (Unbalanced)2100 rpm
Max. Speed (Balanced)3150 rpm
Parallel Misalignment0.120 in
Max. Angular Misalignment1.50° per Gear Mesh
Product Details
DescriptionFA 6 HUB RSB
Hub StyleExposed Bolt
TypeGear Coupling Hubs
Hub MaterialAlloy Steel
StyleUnbored
ColorMetallic
Bore TypeRough Stock Bore
Coupling TypeGear
Weight203.00 lb
Complete Coupling Weight650.00 lb
Size6
Set Screw Style Coupling Size (Dimension T)No Setscrew
Height11.500 in
Width11.500 in
Length Through Bore (LTB)7.41 in 188.21 mm
Overal Coupling Length (OAL)15.130 in 384.30 mm
Max. Bore (Dimensions ID1/ID2)8.250 in 225 mm
Dimension AD17.000 in 431.80 mm
Dimension D14.000 in 355.60 mm
Dimension HD11.50 in 292.10 mm
Distance between Shaft Ends (Dimension BSE)0.310 in 7.87 mm
Cubic in ches979.97250 in ^3
Nominal Torque877100 in ·lb 99110 N·m
Max. Speed (Unbalanced)2100 rpm
Max. Speed (Balanced)3150 rpm
Parallel Misalignment0.120 in
Max. Angular Misalignment1.50° per Gear Mesh
Note

Note: Please read description carefully. Do not base your order on the picture presented.
