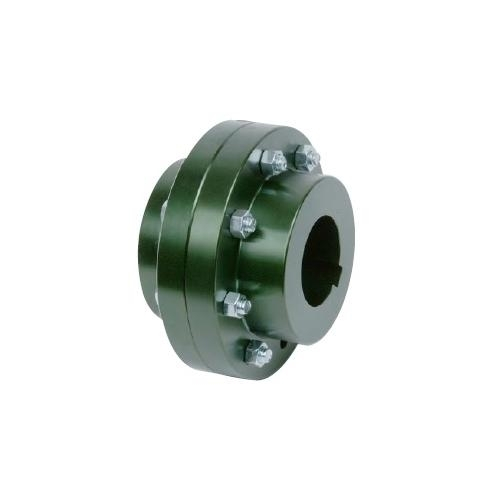

Lovejoy, 69790400728, F Type Rigid Hub, Solid & Rough Stock Bore - Exposed and Shrouded Bolt Design

The FRR Type coupling consists of two rigid hubs and one accessory kit. Exposed bolts (E) are also the standard design for this coupling, though shrouded bolt (S) The FRR Type coupling does not accommodate for any angular misalignment.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Description	F 4.5S HUB RGD W/CENTER
Hub Style	Shrouded Bolt
Nominal Torque	302400 in ·lb 34200 N·m
Type	Gear Coupling Hubs
Hub Material	AISI 1045
Style	Unbored
Color	Metallic
Bore Type	Rigid w/ Center
Coupling Type	Gear
Weight	127.00 lb
Size	4-1/2
Set Screw Style Coupling Size (Dimension T)	No Setscrew
Length thru Bore	5.030 in
Depth	5.030 in 127.76 mm
Max. Bore (Dimensions ID1/ID2)	7.625 in 202 mm
Dimension FD	13.63 in 346.20 mm
Dimension HD	10.380 in 263.65 mm
Cubic in ches	934.45781 in ^3
Max Speed (Unbalanced)	2700 rpm

Product Details

Description	F 4.5S HUB RGD W/CENTER
Hub Style	Shrouded Bolt
Nominal Torque	302400 in ·lb 34200 N·m
Type	Gear Coupling Hubs
Hub Material	AISI 1045
Style	Unbored
Color	Metallic
Bore Type	Rigid w/ Center
Coupling Type	Gear
Weight	127.00 lb
Size	4-1/2
Set Screw Style Coupling Size (Dimension T)	No Setscrew
Length thru Bore	5.030 in
Depth	5.030 in 127.76 mm
Max. Bore (Dimensions ID1/ID2)	7.625 in 202 mm
Dimension FD	13.63 in 346.20 mm
Dimension HD	10.380 in 263.65 mm
Cubic in ches	934.45781 in ^3
Max Speed (Unbalanced)	2700 rpm
