Lovejoy, 68514465080, CJ Hub B Style, Powder Metal, Coupling Size 19/24, 6 x 2.8 mm

A complete CJ Series coupling is comprised of two standard CJ Hub and one CJ spider.

Features:

Three piece design that is easy to assemble.
The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider).
No metal to metal contact and no lubrication required.
Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	B
Type	Curved Jaw Couplings
Material	Powder Metal
Weight	0.41 lb
Style	Bored
Color	Metallic
Coupling Type	Jaw
Bore Size	20.00 mm
Coupling Size	19/24
Set Screw Size	10-24

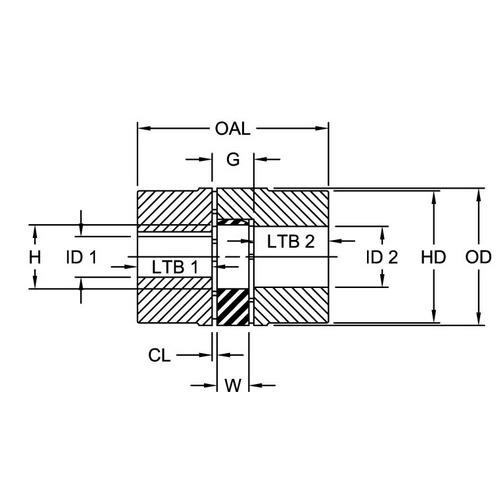

Set Screw Style Coupling Location Size (Dimension SL)	0.390 in (9.91 mm)
Keyway Size	6 x 2.8 mm
Length thru Bore (Dimensions LTB1/LTB2)	0.980 in (24.89 mm)
Outside Diameter	1.570 in (39.88 mm)
Overall Coupling Length	1.530 in (38.86 mm)
Spider Outside Diameter	1.570 in (39.88 mm)
Spider Inside Diameter	0.710 in (18.00 mm)
Spider Thickness (Dimension W)	0.470 in (12.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.710 in (18.00 mm)
Max. Bore (Dimensions ID1/ID2)	0.940 in (24.00 mm)
Dimension G	0.630 in (16.00 mm)
Dimension HD	1.570 in (39.88 mm)
Distance between Spider and Hub Face (Dimension CL)	0.080 in (2.03 mm)
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	88.00 in x lb (10.00 N x m)
Max Torque	177.00 in x lb (20.00 N x m)
Speed	14000.00 rpm
Angular Displacement	0.030 in
Max. Angular Displacement	1.20 Deg
Max. Axial Displacement	0.0470 in
Max. Radial Displacement	0.0080 in
