Lovejoy, 68514462577, 1-1/2" S Type Flange - Rough Stock Bore

Features

S Flange are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts.
S Flange are easy to install, are readily available from stock in a wide range of popular bore sizes, and are supplied with two set screws at 90°.
The S Type coupling consists of two Flange and one sleeve.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Nominal Torque (with EPDM Sleeve)	7200 in·lb
Max. Speed	2800.00 rpm
Torsional Stiffness	27500.00 in·lb/rad
Rated HP at 100 rpm	11.40 hp
Rated HP at 1,200 rpm	137.00 hp
Rated HP at 1,800 rpm	206.00 hp
Bore Size	1 1/2 in
Thread (Dimension T)	No Setscrew
Keyway Size (W x D)	No Keyway

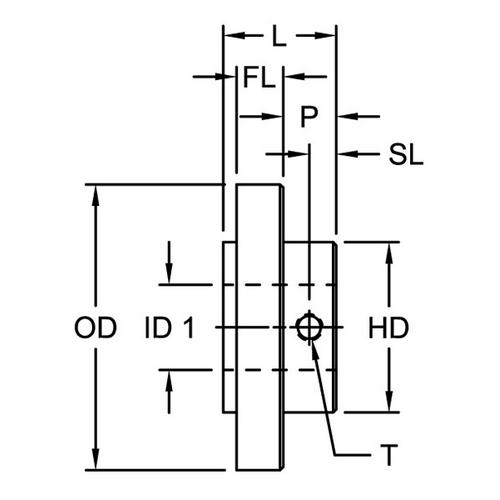

Outside Diameter	10.000 in 254.00 mm
Max. Bore (Dimension ID)	3.875 in
Dimension FL	1.690 in 42.93 mm
Dimension HD	5.750 in 146.05 mm
Dimension L	4.000 in 101.60 mm
Dimension P	1.280 in 32.51 mm
Cubic inches	400.00000 in³
Coupling Size	12S
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Bore Type	Rough Stock Bore
Coupling Type	S-Flex
Weight	34.91 lb

Nominal Torque (with EPDM Sleeve)	7200 in·lb
Max. Speed	2800.00 rpm
Torsional Stiffness	27500.00 in·lb/rad
Rated HP at 100 rpm	11.40 hp
Rated HP at 1,200 rpm	137.00 hp
Rated HP at 1,800 rpm	206.00 hp
Bore Size	1 1/2 in
Thread (Dimension T)	No Setscrew
Keyway Size (W x D)	No Keyway
Outside Diameter	10.000 in 254.00 mm
Max. Bore (Dimension ID)	3.875 in
Dimension FL	1.690 in 42.93 mm
Dimension HD	5.750 in 146.05 mm
Dimension L	4.000 in 101.60 mm
Dimension P	1.280 in 32.51 mm
Cubic inches	400.00000 in³
Coupling Size	12S
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Bore Type	Rough Stock Bore
Coupling Type	S-Flex
Weight	34.91 lb

Note: Please read description carefully. Do not base your order on the picture presented.
