Lovejoy 68514462575 10S S Type Flange - Rough Stock Bore, 1-1//8 in

Keyway Size: No Keyway, Bore Size: 1-1//8 in, Coupling Size: 10
  • Brand Lovejoy
  • Part # 68514462575
  • Model # 10S
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Keyway Size:
Keyway Size: No Keyway
Bore Size:
Bore Size: 1-1//8 in
Coupling Size:
Coupling Size: 10

Lovejoy, 68514462575, 10S S Type Flange - Rough Stock Bore, 1-1//8 in, No Keyway

Features:

  • S Flange are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts.
  • The S Type coupling consists of two Flange and one sleeve.
  • All standard finished bore keyway Flange have 2 set screws at 90 Deg.


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Coupling Size10S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeRough Stock Bore
Coupling TypeS-Flex
Weight12.85 lb
Bore Size1-1/8 in
Thread (Dimension T)No Setscrew
Keyway Size (W x D)No Keyway

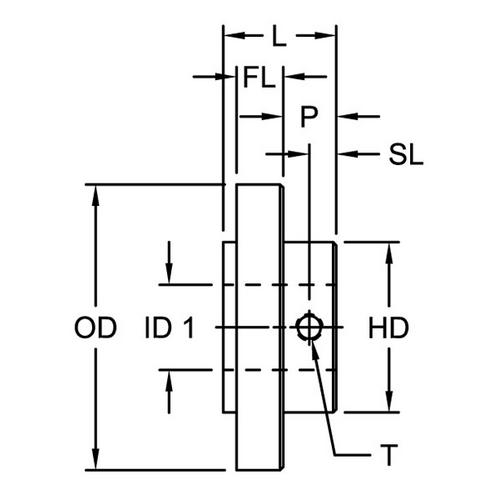

Outside Diameter7.500 in (190.50 mm)
Max. Bore2.750 in
Dimension FL1.220 in (30.99 mm)
Dimension HD4.380 in (111.25 mm)
Dimension L2.700 in (68.58 mm)
Dimension P0.810 in (20.57 mm)
Dimension SL0.410 in (10.41 mm)
Cubic inches151.87500 in3
Nominal Torque (with EPDM Sleeve)2875 in x lb
Max. Speed3600.00 rpm
Torsional Stiffness10980.00 in x lb/rad
Rated HP at 100 rpm4.60 hp
Rated HP at 1,200 rpm55.00 hp
Rated HP at 1,800 rpm82.00 hp
Rated HP at 3,600 rpm164.00 hp
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Coupling Size10S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeRough Stock Bore
Coupling TypeS-Flex
Weight12.85 lb
Bore Size1-1/8 in
Thread (Dimension T)No Setscrew
Keyway Size (W x D)No Keyway
Outside Diameter7.500 in (190.50 mm)
Max. Bore2.750 in
Dimension FL1.220 in (30.99 mm)
Dimension HD4.380 in (111.25 mm)
Dimension L2.700 in (68.58 mm)
Dimension P0.810 in (20.57 mm)
Dimension SL0.410 in (10.41 mm)
Cubic inches151.87500 in3
Nominal Torque (with EPDM Sleeve)2875 in x lb
Max. Speed3600.00 rpm
Torsional Stiffness10980.00 in x lb/rad
Rated HP at 100 rpm4.60 hp
Rated HP at 1,200 rpm55.00 hp
Rated HP at 1,800 rpm82.00 hp
Rated HP at 3,600 rpm164.00 hp
Note

Note: Please read description carefully. Do not base your order on the picture presented.
