Lovejoy 68514462573 8S S Type Flange - Rough Stock Bore, 3/4 in

Keyway Size: No Keyway, Bore Size: 3/4 in, Coupling Size: 8
  • Brand Lovejoy
  • Part # 68514462573
  • Model # 8S
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Keyway Size:
Keyway Size: No Keyway
Bore Size:
Bore Size: 3/4 in
Coupling Size:
Coupling Size: 8

Lovejoy, 68514462573, 8S S Type Flange - Rough Stock Bore, 3/4 in, No Keyway

Features:

  • S Flange are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts.
  • The S Type coupling consists of two Flange and one sleeve.
  • All standard finished bore keyway Flange have 2 set screws at 90 Deg.


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Coupling Size8S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeRough Stock Bore
Coupling TypeS-Flex
Weight5.80 lb
Bore Size3/4 in
Thread (Dimension T)No Setscrew
Keyway Size (W x D)No Keyway

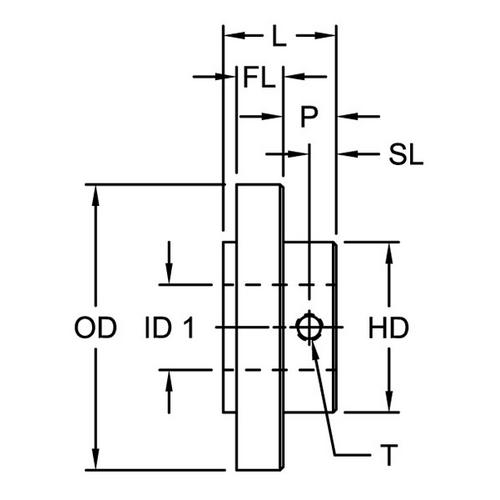

Outside Diameter5.450 in (138.43 mm)
Max. Bore1.938 in
Dimension FL0.880 in (22.35 mm)
Dimension HD3.250 in (82.55 mm)
Dimension L2.100 in (53.34 mm)
Dimension P0.750 in (19.05 mm)
Dimension SL0.380 in (9.65 mm)
Cubic inches62.37525 in3
Nominal Torque (with EPDM Sleeve)1135 in x lb
Max. Speed4500 rpm
Torsional Stiffness4335.00 in x lb/rad
Rated HP at 100 rpm1.80 hp
Rated HP at 1,200 rpm22.00 hp
Rated HP at 1,800 rpm32.00 hp
Rated HP at 3,600 rpm65.00 hp
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Coupling Size8S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeRough Stock Bore
Coupling TypeS-Flex
Weight5.80 lb
Bore Size3/4 in
Thread (Dimension T)No Setscrew
Keyway Size (W x D)No Keyway
Outside Diameter5.450 in (138.43 mm)
Max. Bore1.938 in
Dimension FL0.880 in (22.35 mm)
Dimension HD3.250 in (82.55 mm)
Dimension L2.100 in (53.34 mm)
Dimension P0.750 in (19.05 mm)
Dimension SL0.380 in (9.65 mm)
Cubic inches62.37525 in3
Nominal Torque (with EPDM Sleeve)1135 in x lb
Max. Speed4500 rpm
Torsional Stiffness4335.00 in x lb/rad
Rated HP at 100 rpm1.80 hp
Rated HP at 1,200 rpm22.00 hp
Rated HP at 1,800 rpm32.00 hp
Rated HP at 3,600 rpm65.00 hp
Note

Note: Please read description carefully. Do not base your order on the picture presented.
