Lovejoy 68514462571 6S S Type Flange - Rough Stock Bore, 5/8 in

Keyway Size: No Keyway, Bore Size: 5/8 in, Coupling Size: 6
  • Brand Lovejoy
  • Part # 68514462571
  • Model # 6S
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Keyway Size:
Keyway Size: No Keyway
Bore Size:
Bore Size: 5/8 in
Coupling Size:
Coupling Size: 6

Lovejoy, 68514462571, 6S S Type Flange - Rough Stock Bore, 5/8 in, No Keyway

Features:

  • S Flange are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts.
  • The S Type coupling consists of two Flange and one sleeve.
  • All standard finished bore keyway Flange have 2 set screws at 90 Deg.


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Coupling Size6S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeRough Stock Bore
Coupling TypeS-Flex
Weight2.62 lb
Bore Size5/8 in
Thread (Dimension T)No Setscrew
Keyway Size (W x D)No Keyway

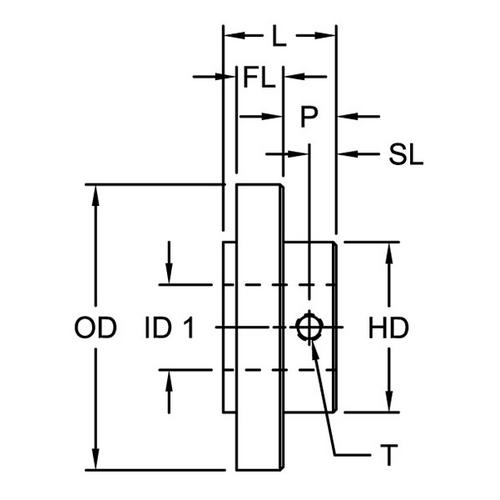

Outside Diameter4.000 in (101.60 mm)
Max. Bore1.438 in
Dimension FL0.780 in (19.81 mm)
Dimension HD2.500 in (63.50 mm)
Dimension L1.640 in (41.66 mm)
Dimension P0.530 in (13.46 mm)
Dimension SL0.290 in (7.37 mm)
Nominal Torque (with EPDM Sleeve)450 in x lb
Max. Speed6000 rpm
Torsional Stiffness1718.00 in x lb/rad
Rated HP at 100 rpm0.70 hp
Rated HP at 1,200 rpm8.60 hp
Rated HP at 1,800 rpm12.90 hp
Rated HP at 3,600 rpm25.70 hp
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Coupling Size6S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeRough Stock Bore
Coupling TypeS-Flex
Weight2.62 lb
Bore Size5/8 in
Thread (Dimension T)No Setscrew
Keyway Size (W x D)No Keyway
Outside Diameter4.000 in (101.60 mm)
Max. Bore1.438 in
Dimension FL0.780 in (19.81 mm)
Dimension HD2.500 in (63.50 mm)
Dimension L1.640 in (41.66 mm)
Dimension P0.530 in (13.46 mm)
Dimension SL0.290 in (7.37 mm)
Nominal Torque (with EPDM Sleeve)450 in x lb
Max. Speed6000 rpm
Torsional Stiffness1718.00 in x lb/rad
Rated HP at 100 rpm0.70 hp
Rated HP at 1,200 rpm8.60 hp
Rated HP at 1,800 rpm12.90 hp
Rated HP at 3,600 rpm25.70 hp
Note

Note: Please read description carefully. Do not base your order on the picture presented.
