Flange J Type, Rough Stock Bore, Size 6J

Features:

Size 6J is made from cast iron.
J flange are compatible with EPDM or Neoprene sleeve.
Each flange has a keyway and two set screws (one set screw over the key and one at 90 to the keyway).
The J Type coupling consists of two Flange and one sleeve.
Spacing between shafts should be greater than 1/8 inch and less than OAL minus the sum of the two bore dimensions.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Coupling Size	6J
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Bore Type	Rough Stock Bore
Coupling Type	S-Flex
Weight	2.34 lb
Bore Size	5/8 in

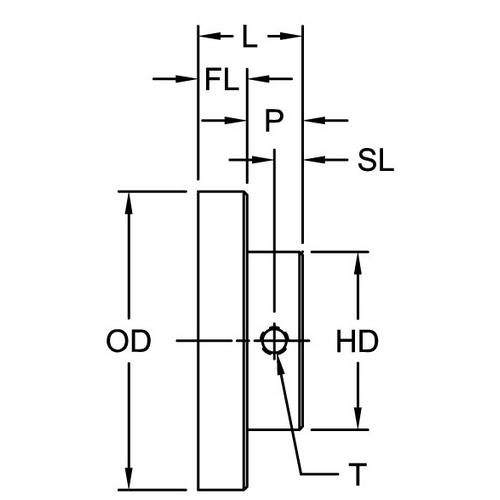

Thread (Dimension T)	No Setscrew
Keyway Size (W x D)	No Keyway
Outside Diameter	4.000 in (101.60 mm)
Max. Bore	1.375 in
Dimension FL	0.780 in (19.81 mm)
Dimension HD	2.500 in (63.50 mm)
Dimension L	1.310 in (33.27 mm)
Dimension P	0.530 in (13.46 mm)
Dimension SL	0.290 in (7.37 mm)
Nominal Torque (with EPDM Sleeve)	450 in x lb
Max. Speed	6000 rpm
Torsional Stiffness	1718.00 in x lb/rad
Rated HP at 100 rpm	0.70 hp
Rated HP at 1,200 rpm	8.60 hp
Rated HP at 1,800 rpm	12.90 hp
Rated HP at 3,600 rpm	25.70 hp

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Coupling Size	6J
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Bore Type	Rough Stock Bore
Coupling Type	S-Flex
Weight	2.34 lb
Bore Size	5/8 in
Thread (Dimension T)	No Setscrew
Keyway Size (W x D)	No Keyway
Outside Diameter	4.000 in (101.60 mm)
Max. Bore	1.375 in
Dimension FL	0.780 in (19.81 mm)
Dimension HD	2.500 in (63.50 mm)
Dimension L	1.310 in (33.27 mm)
Dimension P	0.530 in (13.46 mm)
Dimension SL	0.290 in (7.37 mm)
Nominal Torque (with EPDM Sleeve)	450 in x lb
Max. Speed	6000 rpm
Torsional Stiffness	1718.00 in x lb/rad
Rated HP at 100 rpm	0.70 hp
Rated HP at 1,200 rpm	8.60 hp
Rated HP at 1,800 rpm	12.90 hp
Rated HP at 3,600 rpm	25.70 hp

Note: Please read description carefully. Do not base your order on the picture presented.
