Lovejoy, 68514462569, 5S S Type Flange - Rough Stock Bore, 1/2 in, No Keyway

Features:

S Flange are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts.
The S Type coupling consists of two Flange and one sleeve.
All standard finished bore keyway Flange have 2 set screws at 90 Deg.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Coupling Size	5S
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Bore Type	Rough Stock Bore
Coupling Type	S-Flex
Weight	1.31 lb
Bore Size	1/2 in

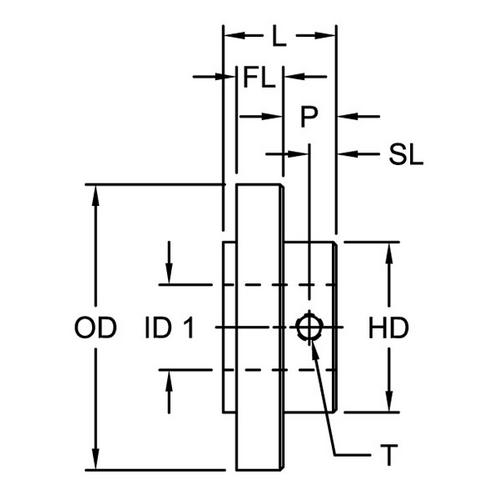

Thread (Dimension T)	No Setscrew
Keyway Size (W x D)	No Keyway
Outside Diameter	3.250 in (82.55 mm)
Max. Bore	1.188 in
Dimension FL	0.590 in (14.99 mm)
Dimension HD	1.880 in (47.75 mm)
Dimension L	1.34 in (34.04 mm)
Dimension P	0.450 in (11.43 mm)
Dimension SL	0.290 in (7.37 mm)
Nominal Torque (with EPDM Sleeve)	240 in x lb
Max. Speed	7600.00 rpm
Torsional Stiffness	916.00 in x lb/rad
Rated HP at 100 rpm	0.40 hp
Rated HP at 1,200 rpm	4.60 hp
Rated HP at 1,800 rpm	6.90 hp
Rated HP at 3,600 rpm	13.70 hp

Notes
