Lovejoy, 68514462062, CJ Hub B Style, Powder Metal, Coupling Size 75/90, No Keyway

A complete CJ Series coupling is comprised of two standard CJ Hub and one CJ spider.

Features:

Three piece design that is easy to assemble.
The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider).
No metal to metal contact and no lubrication required.
Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Declaration Due to recent government-imposed tariffs, all pricing is subject to change based on the manufacturer updates.

Technical Details

Hub Style	B
Type	Curved Jaw Couplings
Material	Powder Metal
Weight	21.10 lb
Style	Unbored
Color	Metallic
Coupling Type	Jaw
Coupling Size	75/90

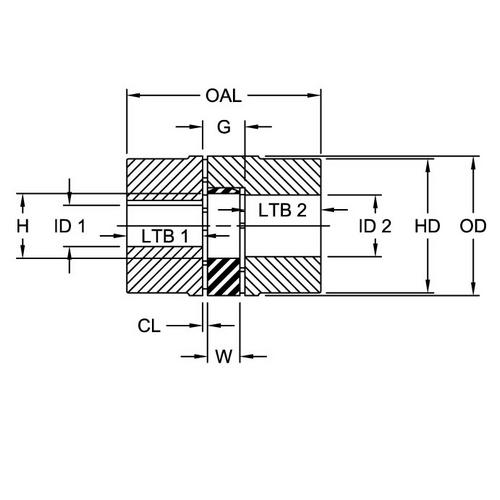

Set Screw Size Coupling Size (Dimension T)	3/8-16
Set Screw Style Coupling Location Size (Dimension SL)	0.980 in (24.89 mm)
Keyway Size	No Keyway
Length thru Bore (Dimensions LTB1/LTB2)	3.350 in (85.09 mm)
Outside Diameter	6.300 in (160.02 mm)
Overall Coupling Length	4.720 in (119.89 mm)
Spider Inside Diameter	3.150 in (80.00 mm)
Spider Outside Diameter	6.300 in (160.00 mm)
Spider Thickness (Dimension W)	1.180 in (30.00 mm)
Min. Bore (Dimensions ID1/ID2)	1.970 in (50.00 mm)
Max. Bore (Dimensions ID1/ID2)	3.540 in (90.00 mm)
Dimension G	1.570 in (39.88 mm)
Dimension HD	6.300 in (160.02 mm)
Distance between Spider and Hub Face (Dimension CL)	0.200 in (5.08 mm)
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	11320.00 in x lb (1279.00 N x m)
Max Torque	22650.00 in x lb (2559.00 N x m)
Speed	3550.00 rpm
Angular Displacement	0.130 in
Max. Angular Displacement	1.20 Deg
Max. Axial Displacement	0.1200 in
Max. Radial Displacement	0.0180 in

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	B
Type	Curved Jaw Couplings
Material	Powder Metal
Weight	21.10 lb
Style	Unbored
Color	Metallic
Coupling Type	Jaw
Coupling Size	75/90
Set Screw Size Coupling Size (Dimension T)	3/8-16
Set Screw Style Coupling Location Size (Dimension SL)	0.980 in (24.89 mm)
Keyway Size	No Keyway
Length thru Bore (Dimensions LTB1/LTB2)	3.350 in (85.09 mm)
Outside Diameter	6.300 in (160.02 mm)
Overall Coupling Length	4.720 in (119.89 mm)
Spider Inside Diameter	3.150 in (80.00 mm)
Spider Outside Diameter	6.300 in (160.00 mm)
Spider Thickness (Dimension W)	1.180 in (30.00 mm)
Min. Bore (Dimensions ID1/ID2)	1.970 in (50.00 mm)
Max. Bore (Dimensions ID1/ID2)	3.540 in (90.00 mm)
Dimension G	1.570 in (39.88 mm)
Dimension HD	6.300 in (160.02 mm)
Distance between Spider and Hub Face (Dimension CL)	0.200 in (5.08 mm)
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	11320.00 in x lb (1279.00 N x m)
Max Torque	22650.00 in x lb (2559.00 N x m)
Speed	3550.00 rpm
Angular Displacement	0.130 in
Max. Angular Displacement	1.20 Deg
Max. Axial Displacement	0.1200 in
Max. Radial Displacement	0.0180 in

Note: Please read description carefully. Do not base your order on the picture presented.
