Buy Lovejoy 68514462051, CJ Hub A Style, Powder Metal, Coupling Size 42

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 68514462051, CJ Hub A Style, Powder Metal, Coupling Size 42, 10 x 3.3 mm

A complete CJ Series coupling is comprised of two standard CJ Hub and one CJ spider.

Features:

Three piece design that is easy to assemble.
The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider).
No metal to metal contact and no lubrication required.
Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

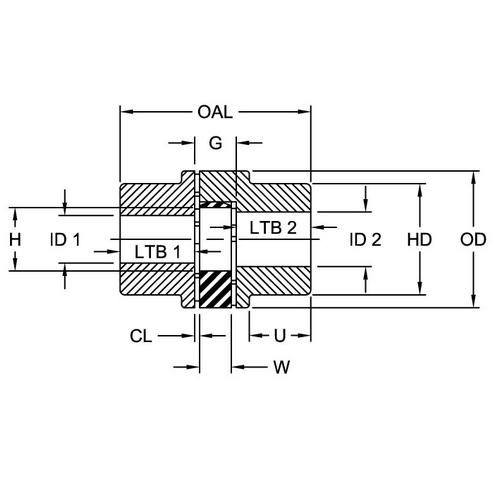

Technical Details

Hub Style	A
Type	Curved Jaw Couplings
Material	Powder Metal
Weight	3.81 lb
Style	Bored
Color	Metallic
Coupling Type	Jaw
Bore Size	32.00 mm
Coupling Size	42/55
Set Screw Style Coupling Size (Dimension T)	5/16-18
Set Screw Style Coupling Location Size (Dimension SL)	0.790 in (20.07 mm)
Keyway Size	10 x 3.3 mm
Length thru Bore (Dimensions LTB1/LTB2)	1.97 in (50.04 mm)
Outside Diameter	3.74 in (95 mm)
Overall Coupling Length	2.870 in (72.90 mm)
Spider Inside Diameter	1.810 in (46.00 mm)
Spider Outside Diameter	3.740 in (95.00 mm)
Spider Thickness (Dimension W)	0.790 in (20.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.470 in (12.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.650 in (42 mm)
Dimension G	1.020 in (25.91 mm)
Dimension HD	2.950 in (74.93 mm)
Distance between Spider and Hub Face (Dimension CL)	0.120 in (3.05 mm)
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	2345.00 in x lb (265.00 N x m)
Max Torque	4690.00 in x lb (530.00 N x m)
Speed	6000 rpm
Angular Displacement	0.070 in
Max. Angular Displacement	1 Deg
Max. Axial Displacement	0.0790 in
Max. Radial Displacement	0.0120 in

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	A
Type	Curved Jaw Couplings
Material	Powder Metal
Weight	3.81 lb
Style	Bored
Color	Metallic
Coupling Type	Jaw
Bore Size	32.00 mm
Coupling Size	42/55
Set Screw Style Coupling Size (Dimension T)	5/16-18
Set Screw Style Coupling Location Size (Dimension SL)	0.790 in (20.07 mm)
Keyway Size	10 x 3.3 mm
Length thru Bore (Dimensions LTB1/LTB2)	1.97 in (50.04 mm)
Outside Diameter	3.74 in (95 mm)
Overall Coupling Length	2.870 in (72.90 mm)
Spider Inside Diameter	1.810 in (46.00 mm)
Spider Outside Diameter	3.740 in (95.00 mm)
Spider Thickness (Dimension W)	0.790 in (20.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.470 in (12.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.650 in (42 mm)
Dimension G	1.020 in (25.91 mm)
Dimension HD	2.950 in (74.93 mm)
Distance between Spider and Hub Face (Dimension CL)	0.120 in (3.05 mm)
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	2345.00 in x lb (265.00 N x m)
Max Torque	4690.00 in x lb (530.00 N x m)
Speed	6000 rpm
Angular Displacement	0.070 in
Max. Angular Displacement	1 Deg
Max. Axial Displacement	0.0790 in
Max. Radial Displacement	0.0120 in

Note: Please read description carefully. Do not base your order on the picture presented.
