Buy Lovejoy 68514462027, CJ Hub A Style, Powder Metal, Coupling Size 38

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 68514462027, CJ Hub A Style, Powder Metal, Coupling Size 38, 5/16 x 5/32 in

A complete CJ Series coupling is comprised of two standard CJ Hub and one CJ spider.

Features:

Three piece design that is easy to assemble.
The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider).
No metal to metal contact and no lubrication required.
Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

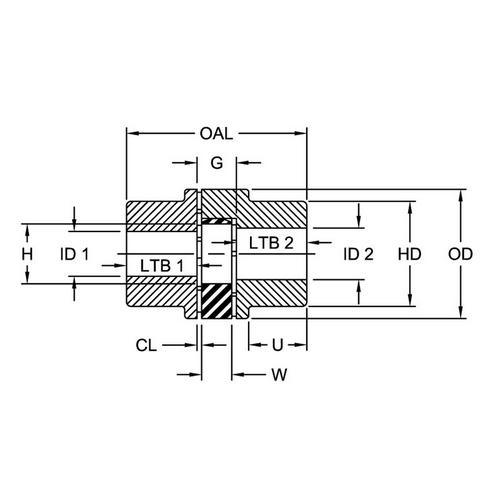

Technical Details

Hub Style	A
Type	Curved Jaw Coupling Hubs
Material	Powder Metal
Weight	2.09 lb
Style	Bored
Color	Metallic
Coupling Type	Jaw
Bore Size	1-3/8 in
Coupling Size	38
Set Screw Style Coupling Size (Dimension T)	5/16-18
Set Screw Style Coupling Location Size (Dimension SL)	0.590 in (14.99 mm)
Keyway Size	5/16 x 5/32 in
Length thru Bore (Dimensions LTB1/LTB2)	1.770 in (44.96 mm)
Outside Diameter	3.150 in (80.00 mm)
Overall Coupling Length	4.490 in (114.05 mm)
Spider Outside Diameter	3.150 in (80.00 mm)
Spider Thickness (Dimension W)	0.710 in (18.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.470 in (12.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.5 in (38 mm)
Dimension G	0.940 in (23.88 mm)
Dimension HD	2.600 in (66.04 mm)
Distance between Spider and Hub Face (Dimension CL)	0.120 in (3.05 mm)
Cubic inches	11.96520 in3
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	1680 in x lb
Max Torque	3360 in x lb
Speed	7100 rpm
Angular Displacement	0.070 in
Max. Angular Displacement	1 Deg
Max. Axial Displacement	0.0700 in
Max. Radial Displacement	0.0110 in

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	A
Type	Curved Jaw Coupling Hubs
Material	Powder Metal
Weight	2.09 lb
Style	Bored
Color	Metallic
Coupling Type	Jaw
Bore Size	1-3/8 in
Coupling Size	38
Set Screw Style Coupling Size (Dimension T)	5/16-18
Set Screw Style Coupling Location Size (Dimension SL)	0.590 in (14.99 mm)
Keyway Size	5/16 x 5/32 in
Length thru Bore (Dimensions LTB1/LTB2)	1.770 in (44.96 mm)
Outside Diameter	3.150 in (80.00 mm)
Overall Coupling Length	4.490 in (114.05 mm)
Spider Outside Diameter	3.150 in (80.00 mm)
Spider Thickness (Dimension W)	0.710 in (18.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.470 in (12.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.5 in (38 mm)
Dimension G	0.940 in (23.88 mm)
Dimension HD	2.600 in (66.04 mm)
Distance between Spider and Hub Face (Dimension CL)	0.120 in (3.05 mm)
Cubic inches	11.96520 in3
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	1680 in x lb
Max Torque	3360 in x lb
Speed	7100 rpm
Angular Displacement	0.070 in
Max. Angular Displacement	1 Deg
Max. Axial Displacement	0.0700 in
Max. Radial Displacement	0.0110 in

Note: Please read description carefully. Do not base your order on the picture presented.
