Buy Lovejoy 68514462012, CJ Hub A Style, Powder Metal, Coupling Size 28

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 68514462012, CJ Hub A Style, Powder Metal, Coupling Size 28, No Keyway

A complete CJ Series coupling is comprised of two standard CJ hubs and one CJ spider. Four types of spiders are available for the CJ Series.

Features:

Three piece design that is easy to assemble.
The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider).
No metal to metal contact and no lubrication required.
Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	A
Type	Curved Jaw Coupling Hubs
Material	Powder Metal
Weight	1.15 lb
Style	Bored
Color	Metallic
Coupling Type	Jaw
Bore Size	5/8 in
Coupling Size	28
Set Screw Style Coupling Size (Dimension T)	5/16-18
Set Screw Style Coupling Location Size (Dimension SL)	0.590 in (14.99 mm)
Keyway Size	No Keyway
Length thru Bore (Dimensions LTB1/LTB2)	1.380 in (35.05 mm)
Outside Diameter	2.560 in (65.02 mm)
Overall Coupling Length	3.540 in (89.92 mm)
Spider Outside Diameter	2.560 in (65.00 mm)
Spider Thickness (Dimension W)	0.590 in (15.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.470 in (12.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.100 in (28 mm)
Dimension G	0.790 in (20.07 mm)
Dimension HD	1.890 in (48.01 mm)
Distance between Spider and Hub Face (Dimension CL)	0.100 in (2.54 mm)
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	840.00 in x lb
Max Torque	1680.00 in x lb
Speed	8500.00 rpm
Angular Displacement	0.050 in
Max. Angular Displacement	0.90 Deg
Max. Axial Displacement	0.0600 in
Max. Radial Displacement	0.0100 in

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	A
Type	Curved Jaw Coupling Hubs
Material	Powder Metal
Weight	1.15 lb
Style	Bored
Color	Metallic
Coupling Type	Jaw
Bore Size	5/8 in
Coupling Size	28
Set Screw Style Coupling Size (Dimension T)	5/16-18
Set Screw Style Coupling Location Size (Dimension SL)	0.590 in (14.99 mm)
Keyway Size	No Keyway
Length thru Bore (Dimensions LTB1/LTB2)	1.380 in (35.05 mm)
Outside Diameter	2.560 in (65.02 mm)
Overall Coupling Length	3.540 in (89.92 mm)
Spider Outside Diameter	2.560 in (65.00 mm)
Spider Thickness (Dimension W)	0.590 in (15.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.470 in (12.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.100 in (28 mm)
Dimension G	0.790 in (20.07 mm)
Dimension HD	1.890 in (48.01 mm)
Distance between Spider and Hub Face (Dimension CL)	0.100 in (2.54 mm)
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	840.00 in x lb
Max Torque	1680.00 in x lb
Speed	8500.00 rpm
Angular Displacement	0.050 in
Max. Angular Displacement	0.90 Deg
Max. Axial Displacement	0.0600 in
Max. Radial Displacement	0.0100 in

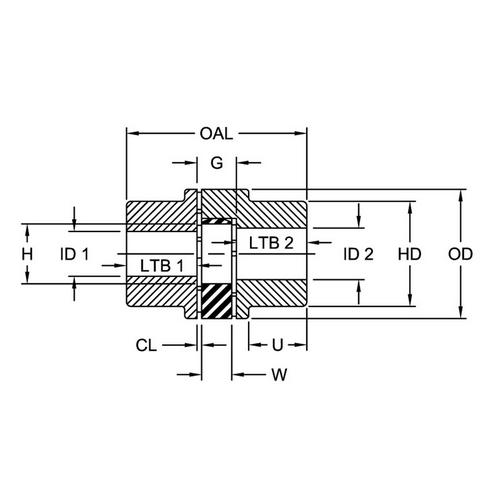

Note: Please read description carefully. Do not base your order on the picture presented.
