Buy Lovejoy 68514461105, CJ Hub B Style, Powder Metal, Coupling Size 24/32

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 68514461105, CJ Hub B Style, Powder Metal, Coupling Size 24/32, 8 x 3.3 mm

A complete CJ Series coupling is comprised of two standard CJ Hub and one CJ spider.

Features:

Three piece design that is easy to assemble.
The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider).
No metal to metal contact and no lubrication required.
Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	B
Type	Curved Jaw Couplings
Material	Powder Metal
Weight	0.97 lb
Style	Bored
Color	Metallic
Coupling Type	Jaw
Bore Size	25.00 mm
Coupling Size	24/32
Set Screw Size	10-24

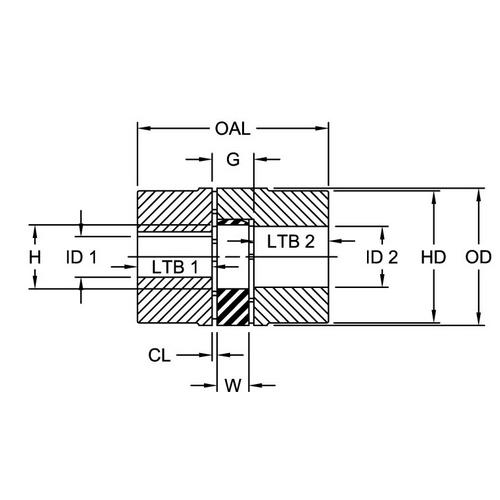

Set Screw Style Coupling Location Size (Dimension SL)	0.390 in (9.91 mm)
Keyway Size	8 x 3.3 mm
Length thru Bore (Dimensions LTB1/LTB2)	1.180 in (29.97 mm)
Outside Diameter	2.200 in (55.88 mm)
Overall Coupling Length	1.800 in (45.72 mm)
Spider Inside Diameter	1.060 in (27.00 mm)
Spider Outside Diameter	2.160 in (55.00 mm)
Spider Thickness (Dimension W)	0.550 in (14.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.870 in (18.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.25 in (32.00 mm)
Dimension G	0.700 in (17.78 mm)
Dimension HD	2.200 in (55.88 mm)
Distance between Spider and Hub Face (Dimension CL)	0.080 in (2.03 mm)
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	310.00 in x lb (35.00 N x m)
Max Torque	620.00 in x lb (70.00 N x m)
Speed	10600.00 rpm
Angular Displacement	0.040 in
Max. Angular Displacement	0.90 Deg
Max. Axial Displacement	0.0550 in
Max. Radial Displacement	0.0090 in

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	B
Type	Curved Jaw Couplings
Material	Powder Metal
Weight	0.97 lb
Style	Bored
Color	Metallic
Coupling Type	Jaw
Bore Size	25.00 mm
Coupling Size	24/32
Set Screw Size	10-24
Set Screw Style Coupling Location Size (Dimension SL)	0.390 in (9.91 mm)
Keyway Size	8 x 3.3 mm
Length thru Bore (Dimensions LTB1/LTB2)	1.180 in (29.97 mm)
Outside Diameter	2.200 in (55.88 mm)
Overall Coupling Length	1.800 in (45.72 mm)
Spider Inside Diameter	1.060 in (27.00 mm)
Spider Outside Diameter	2.160 in (55.00 mm)
Spider Thickness (Dimension W)	0.550 in (14.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.870 in (18.00 mm)
Max. Bore (Dimensions ID1/ID2)	1.25 in (32.00 mm)
Dimension G	0.700 in (17.78 mm)
Dimension HD	2.200 in (55.88 mm)
Distance between Spider and Hub Face (Dimension CL)	0.080 in (2.03 mm)
Normal Temperature Range	-40 to 212 F
Max. Temperature Range	-50 to 248 F
Nominal Torque	310.00 in x lb (35.00 N x m)
Max Torque	620.00 in x lb (70.00 N x m)
Speed	10600.00 rpm
Angular Displacement	0.040 in
Max. Angular Displacement	0.90 Deg
Max. Axial Displacement	0.0550 in
Max. Radial Displacement	0.0090 in

Note: Please read description carefully. Do not base your order on the picture presented.
