Buy Lovejoy 68514458035, L190 L Type Hub with Keyway - Metric Bore, 35 mm

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 68514458035, L190 L Type Hub with Keyway - Metric Bore, 35 mm, 10 x 3.3 mm

Features:

Fail-safe - will still perform if elastomer fails
No metal to metal contact
Resistant to oil, dirt, sand, moisture and grease
Standard L Type coupling hub materials are either sintered iron (L035-L190) or cast iron (L225-L276).
The L Type coupling consists of two standard L Type hubs and one spider.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	2
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	6.92 lb
Weight (Complete Coupling w/ Min. Bore)	12.30 lb
Weight (Complete Coupling w/ Max. Bore)	15.30 lb
Bore Size	35.00 mm
Coupling Size	L190
Keyway Size (W x D)	10 x 3.3 mm

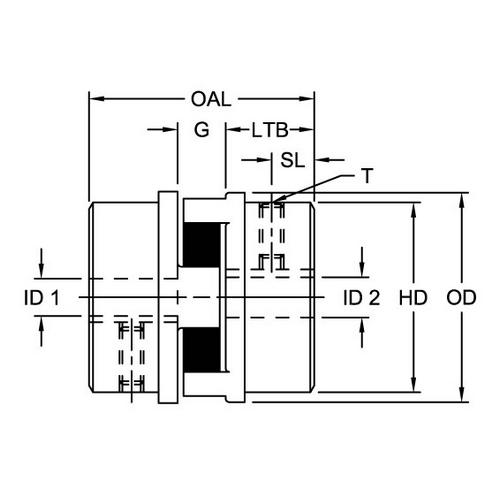

Length thru Bore	1.94 in (49.28 mm)
Overall Length	4.860 in (123.44 mm)
Outside Diameter	4.50 in (114.30 mm)
Min. Bore	0.750 in (19.00 mm)
Max. Bore	2.125 in (54.00 mm)
Hub Length	2.940 in (74.68 mm)
Dimension G	1 in (25.40 mm)
Dimension SL	0.880 in (22.35 mm)
Cubic inches	59.535 in3
Nominal Torque	1728.00 in x lb (195.24 N x m)
Max. Speed	5000 rpm
Rated HP at 100 rpm	2.70 hp
Rated HP at 1,200 rpm	32.40 hp
Rated HP at 1,800 rpm	49.00 hp
Rated HP at 3,600 rpm	97.20 hp

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	2
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	6.92 lb
Weight (Complete Coupling w/ Min. Bore)	12.30 lb
Weight (Complete Coupling w/ Max. Bore)	15.30 lb
Bore Size	35.00 mm
Coupling Size	L190
Keyway Size (W x D)	10 x 3.3 mm
Length thru Bore	1.94 in (49.28 mm)
Overall Length	4.860 in (123.44 mm)
Outside Diameter	4.50 in (114.30 mm)
Min. Bore	0.750 in (19.00 mm)
Max. Bore	2.125 in (54.00 mm)
Hub Length	2.940 in (74.68 mm)
Dimension G	1 in (25.40 mm)
Dimension SL	0.880 in (22.35 mm)
Cubic inches	59.535 in3
Nominal Torque	1728.00 in x lb (195.24 N x m)
Max. Speed	5000 rpm
Rated HP at 100 rpm	2.70 hp
Rated HP at 1,200 rpm	32.40 hp
Rated HP at 1,800 rpm	49.00 hp
Rated HP at 3,600 rpm	97.20 hp

Note: Please read description carefully. Do not base your order on the picture presented.
