Buy Lovejoy 68514456514, AL090 AL Type Hub with Keyway - Metric Bore

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Keyway Size:: Keyway Size: 3 x 1.4 mm
Bore Size:: Bore Size: 10 mm
Coupling Size:: Coupling Size: 90

Lovejoy, 68514456514, AL090 AL Type Hub with Keyway - Metric Bore, 10 mm, 3 x 1.4 mm

The AL Type coupling consists of two standard AL Type Hub . Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40 to 212 F (-40 to 100 C). Good resistance to oil. Standard elastomer.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications

There is a $100.00 minimum order required when purchasing "Lovejoy" products

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Resources

Reviews

Hub Style	2
Coupling Type	Jaw
Material	Aluminum
Color	Silver
Elastomeric Member	SOX (NBR) Rubber
Weight	0.25 lb
Weight (Complete Coupling w/ Min. Bore)	0.40 lb
Weight (Complete Coupling w/ Max. Bore)	0.50 lb
Bore Size	10.00 mm
Coupling Size	AL090
Keyway Size (W x D)	3 x 1.4

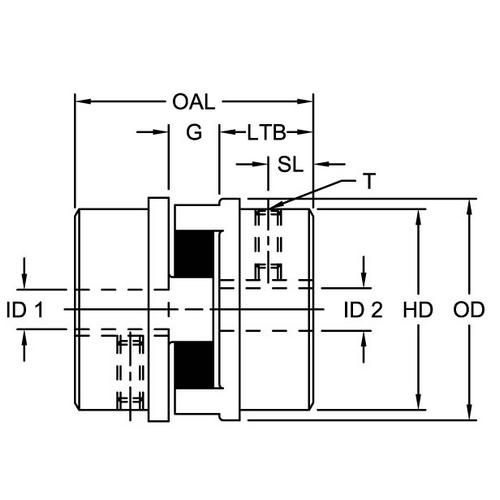

Length thru Bore	0.910 in (23.11 mm)
Overall Length	2.340 in (59.44 mm)
Min. Bore	0.250 in (13.00 mm)
Max. Bore	0.875 in (22.00 mm)
Hub Length	1.430 in (36.32 mm)
Dimension G	0.52 in (13.21 mm)
Outside Diameter	1.530 in (38.86 mm)
Dimension SL	0.340 in (8.64 mm)
Cubic inches	6.42699 in3
Nominal Torque	144 in x lb (16.27 N x m)
Max. Speed	9000.00 rpm
Rated HP at 1000 rpm	0.23 hp
Rated HP at 1,200 rpm	2.76 hp
Rated HP at 1,800 rpm	4.11 hp
Rated HP at 3,600 rpm	8.28 hp

Product Details

Hub Style	2
Coupling Type	Jaw
Material	Aluminum
Color	Silver
Elastomeric Member	SOX (NBR) Rubber
Weight	0.25 lb
Weight (Complete Coupling w/ Min. Bore)	0.40 lb
Weight (Complete Coupling w/ Max. Bore)	0.50 lb
Bore Size	10.00 mm
Coupling Size	AL090
Keyway Size (W x D)	3 x 1.4
Length thru Bore	0.910 in (23.11 mm)
Overall Length	2.340 in (59.44 mm)
Min. Bore	0.250 in (13.00 mm)
Max. Bore	0.875 in (22.00 mm)
Hub Length	1.430 in (36.32 mm)
Dimension G	0.52 in (13.21 mm)
Outside Diameter	1.530 in (38.86 mm)
Dimension SL	0.340 in (8.64 mm)
Cubic inches	6.42699 in3
Nominal Torque	144 in x lb (16.27 N x m)
Max. Speed	9000.00 rpm
Rated HP at 1000 rpm	0.23 hp
Rated HP at 1,200 rpm	2.76 hp
Rated HP at 1,800 rpm	4.11 hp
Rated HP at 3,600 rpm	8.28 hp
