Lovejoy, 68514456237, L276 L Type Hub without Keyway - Metric Bore, 65 mm, No Keyway

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

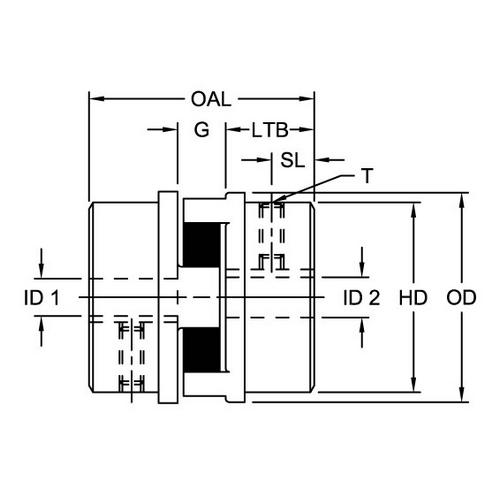

Technical Details

Hub Style	2
Coupling Type	Jaw
Material	Cast Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	16.35 lb
Weight (Complete Coupling w/ Min. Bore)	30.50 lb
Weight (Complete Coupling w/ Max. Bore)	40.00 lb
Bore Size	65.00 mm
Coupling Size	L276
Keyway Size (W x D)	No Keyway
Length thru Bore	3.120 in (79.25 mm)
Overall Length	7.820 in (198.63 mm)
Min. Bore	0.875 in (22.00 mm)
Max. Bore	2.875 in (73 mm)
Hub Length	4.700 in (119.38 mm)
Nominal Torque	4716.00 in x lb (532.84 N x m)
Max. Speed	1800 rpm
Rated HP at 100 rpm	7.50 hp
Rated HP at 1,200 rpm	90.00 hp
Rated HP at 1,800 rpm	135.00 hp

Hub Style	2
Coupling Type	Jaw
Material	Cast Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	16.35 lb
Weight (Complete Coupling w/ Min. Bore)	30.50 lb
Weight (Complete Coupling w/ Max. Bore)	40.00 lb
Bore Size	65.00 mm
Coupling Size	L276
Keyway Size (W x D)	No Keyway
Length thru Bore	3.120 in (79.25 mm)
Overall Length	7.820 in (198.63 mm)
Min. Bore	0.875 in (22.00 mm)
Max. Bore	2.875 in (73 mm)
Hub Length	4.700 in (119.38 mm)
Nominal Torque	4716.00 in x lb (532.84 N x m)
Max. Speed	1800 rpm
Rated HP at 100 rpm	7.50 hp
Rated HP at 1,200 rpm	90.00 hp
Rated HP at 1,800 rpm	135.00 hp

Note: Please read description carefully. Do not base your order on the picture presented.
